Home >> Saab >> 2000 >> 9-5 SE Sedan (9600) V6-3.0L Turbo (B308) >> Repair and Diagnosis >> Body and Frame >> Locks >> Diagrams >> Electrical Diagrams >> Electrical Opening of Luggage Compartment Lock, 4D

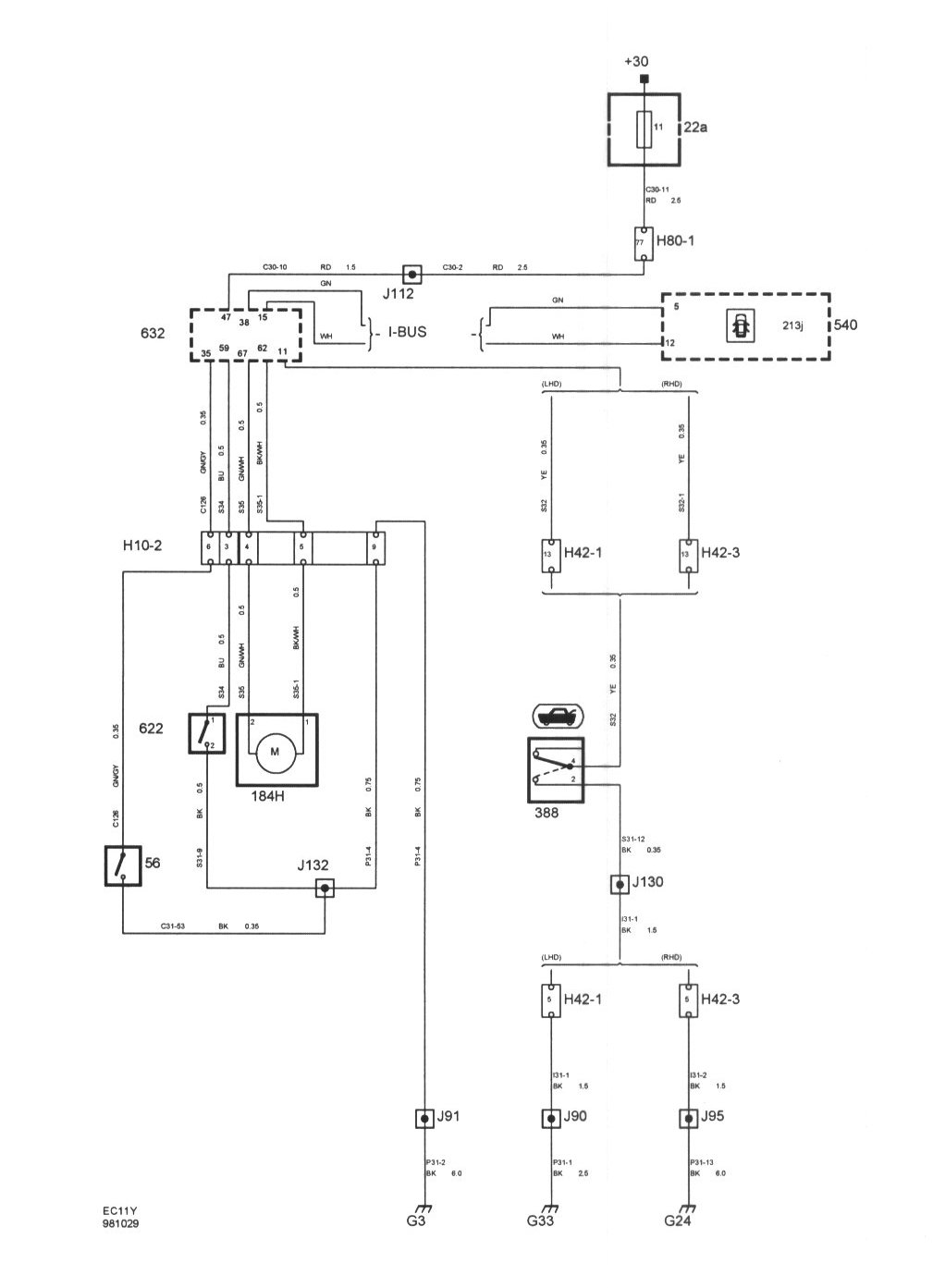

Electrical Opening of Luggage Compartment Lock, 4D

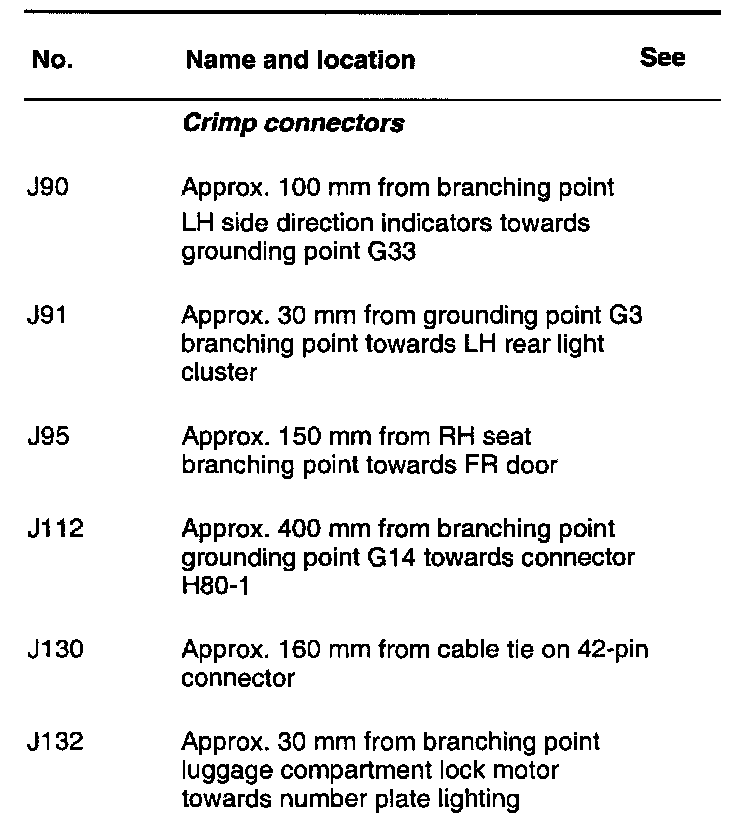

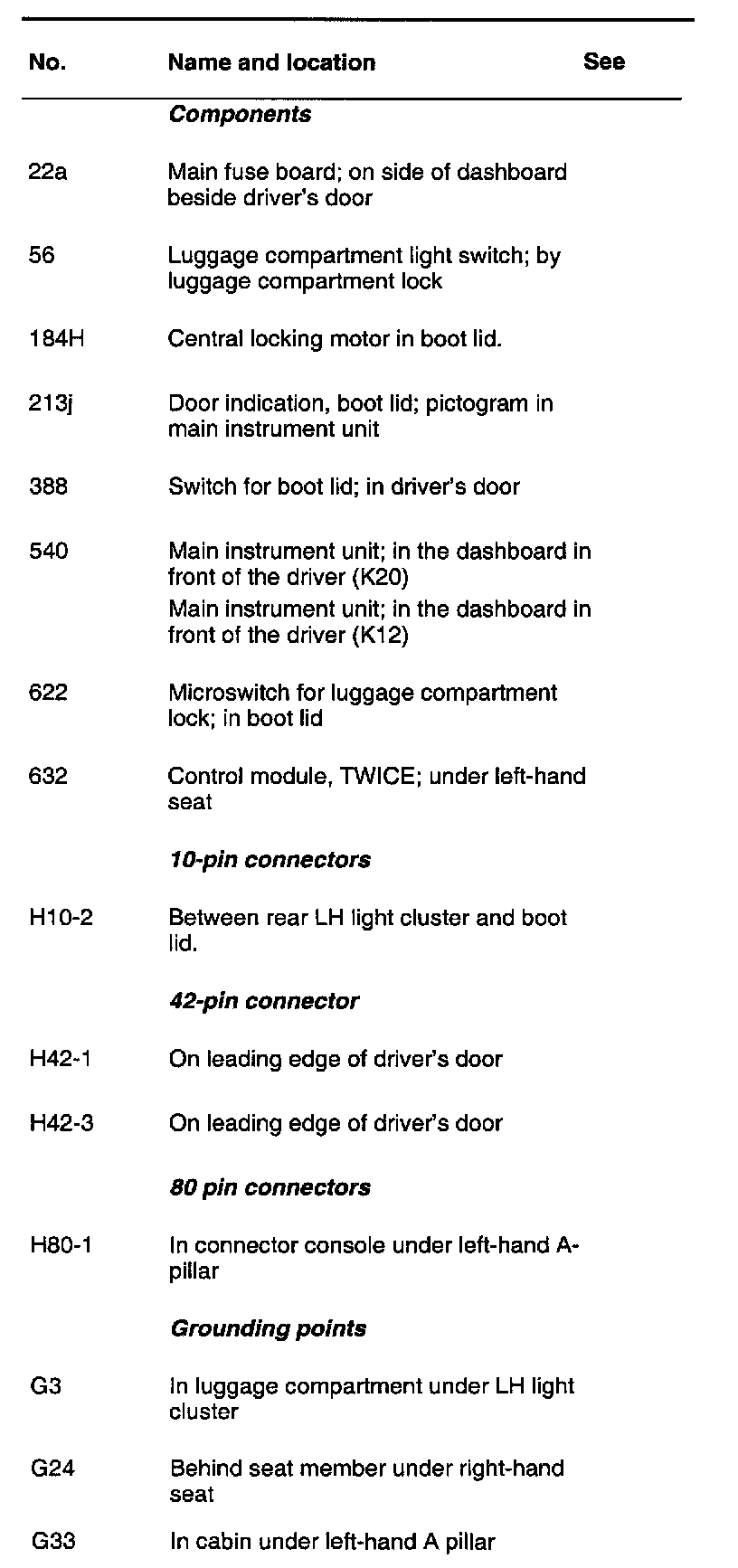

List of components
