C-Pillar Trim, 4D

C Pillar Trim, 4D

To remove







1. Fold down the backrest.

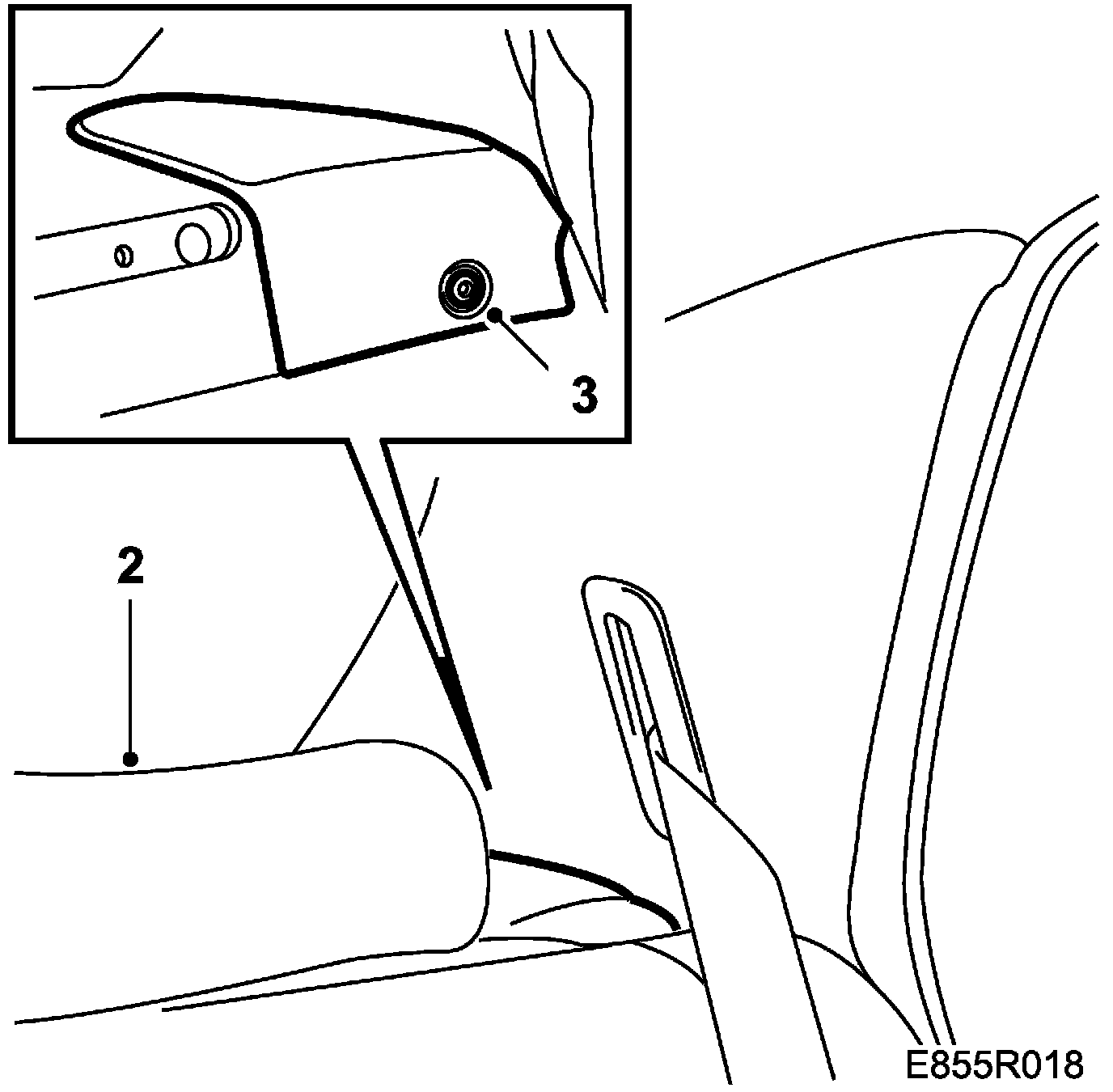

2. Remove the head restraint from the rear seat, 1 screw.
3. Remove the speaker grille (fastened with clips) in the parcel shelf.

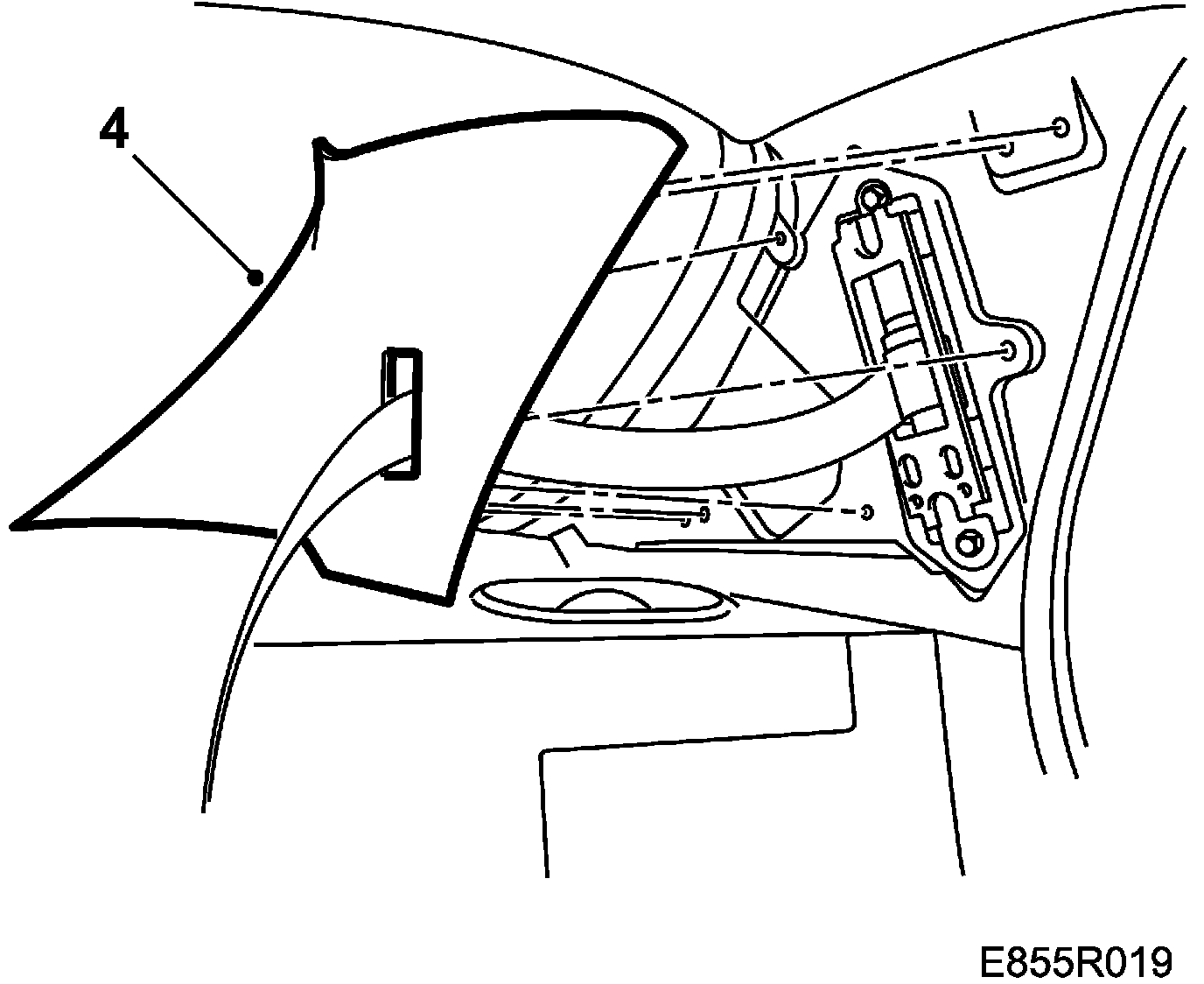

4. Pull out the C-pillar trim (fastened with 5 clips).







To fit

NOTE: Check that the door sealing moulding fits correctly.

Fit in reverse order.

The C-pillar trim has 2 locating pins.
