A-Pillar Trim

A-pillar Trim

To remove







1. Remove the door weatherseal from the A pillar.

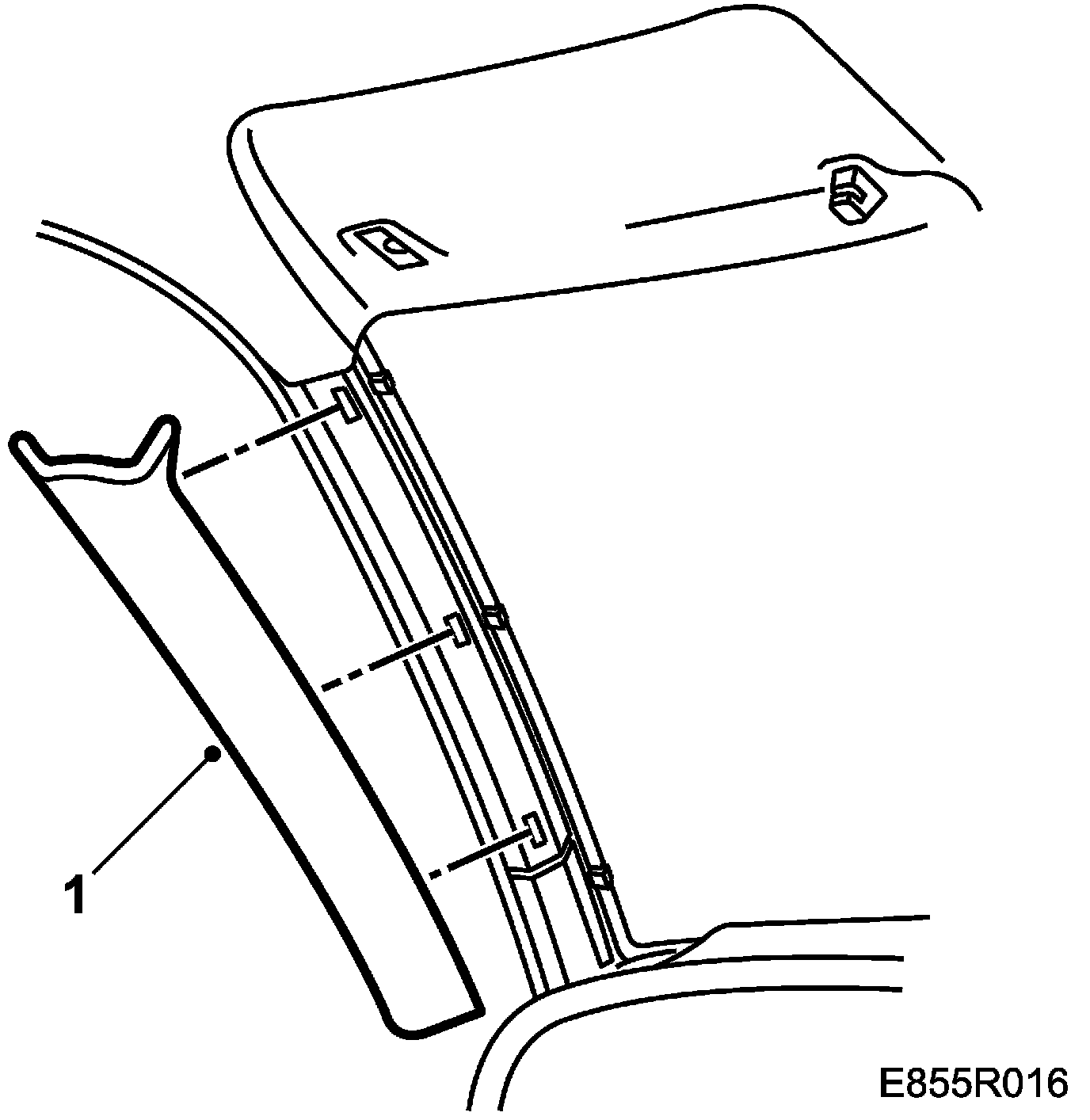

2. Pull the trim off the A pillar (fastened with clips).

To fit

1. Fit the bottom of the trim in place.
2. Press the trim into the upper clip where it will act as a guide.
3. Press the trim into all the clips.
4. Fit the door weatherseal.

NOTE: Check that the door sealing moulding fits correctly.
