Luggage Compartment Trim, Floor Panel

Luggage Compartment Trim, Floor Panel

To remove

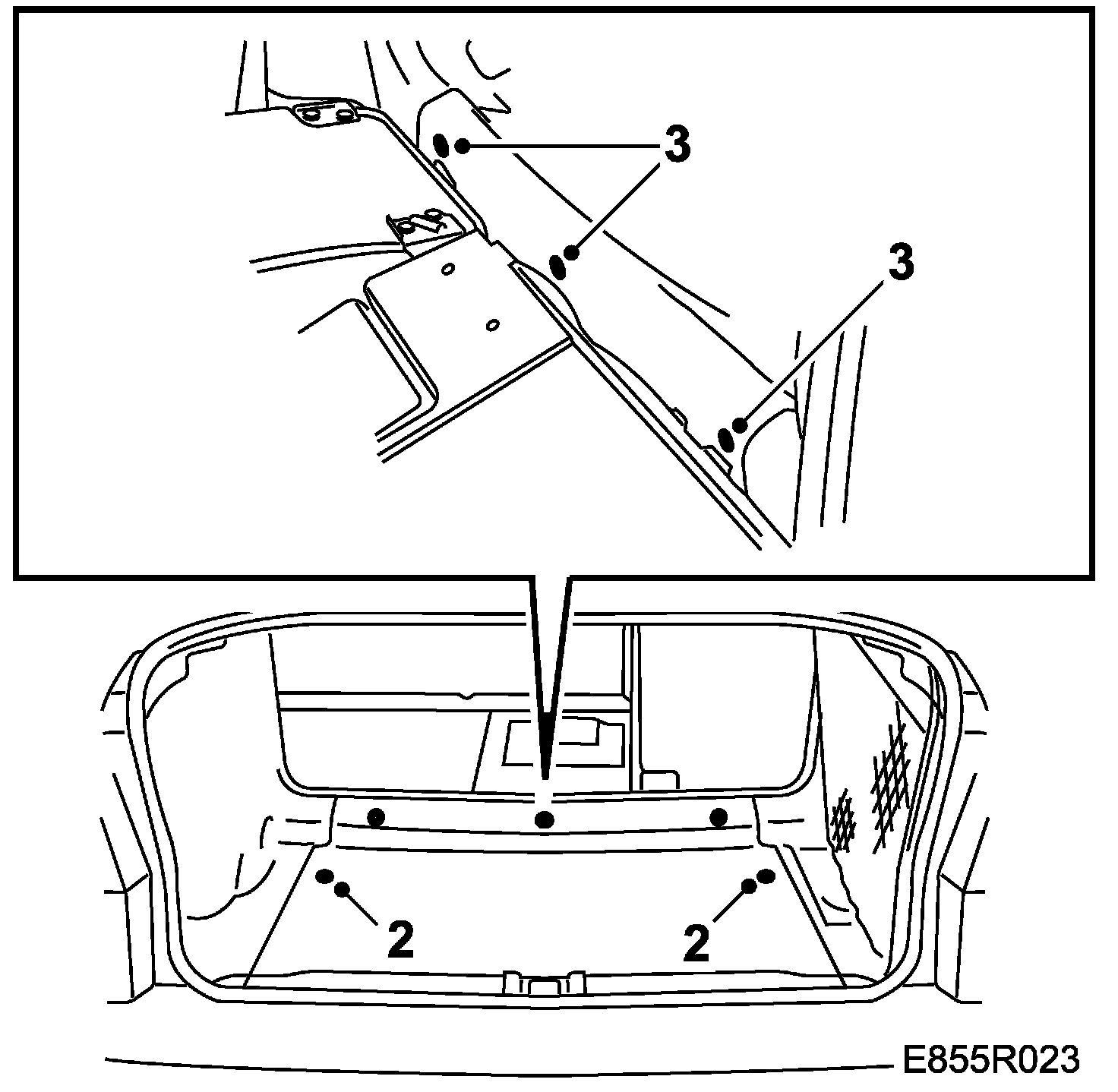

1. Fold down the rear backrest.
2. Undo 2 screws holding the floor panel trim to the floor.
3. Undo the clips holding the floor panel at the front, 6 pcs.

To fit

Fit in reverse order.
