Vanity Mirror, Changing the Bulb

Vanity Mirror, Changing The Bulb

To remove

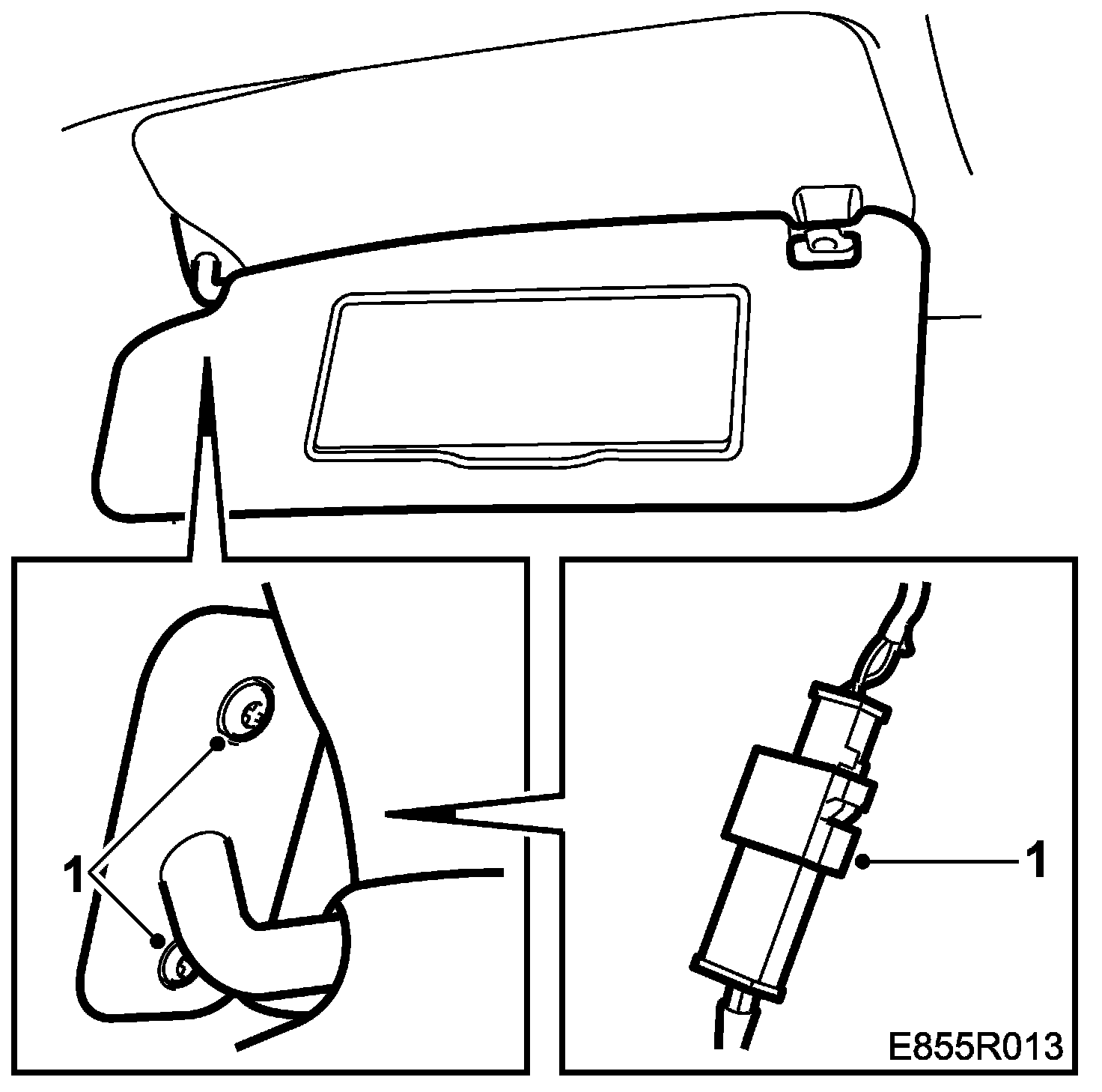

1. Remove the sun visor, 2 screws.

Mirror light:
Unplug the connector for the light.

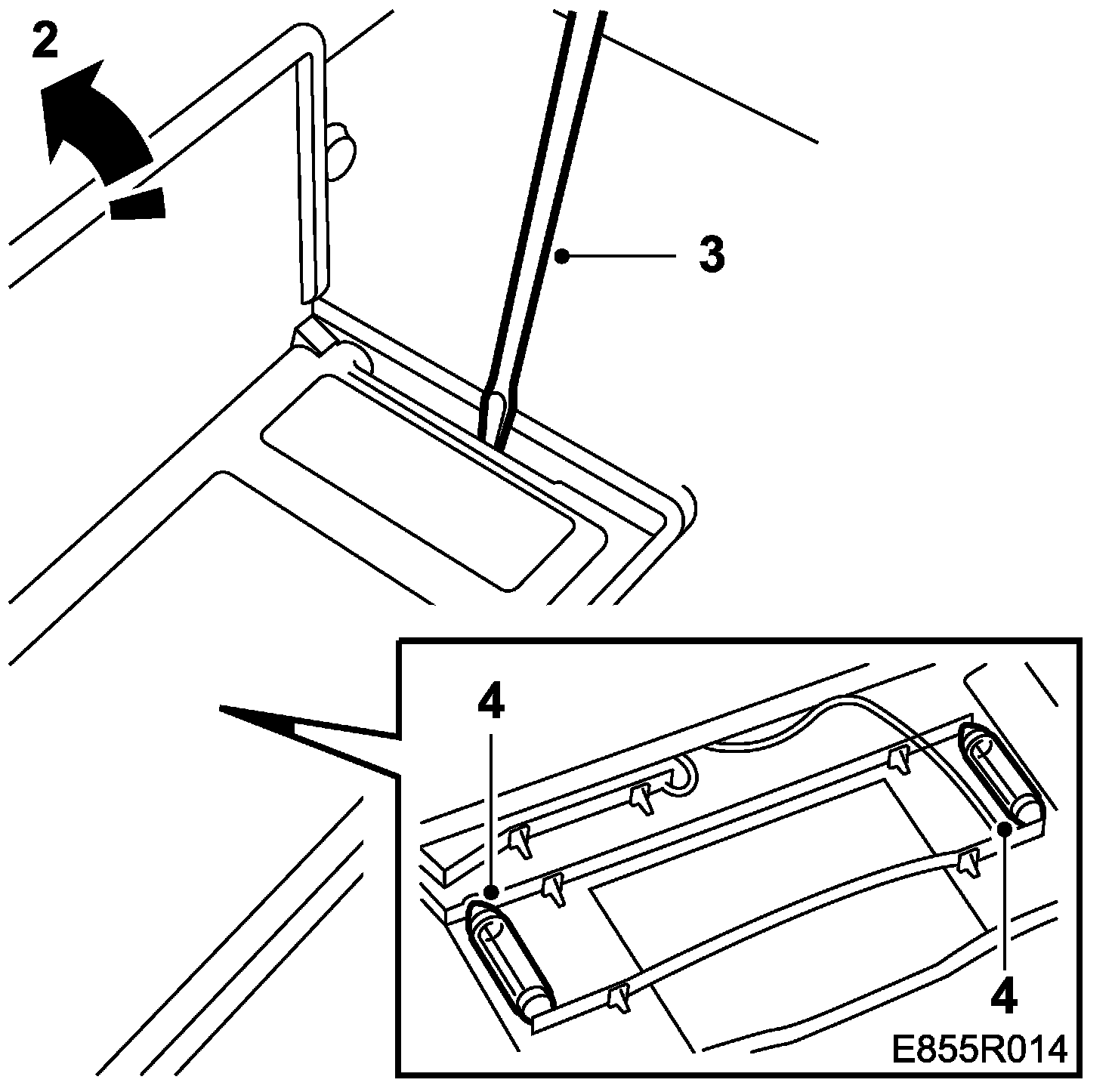

2. Open the mirror cover.





3. Insert a screwdriver between the mirror frame and the frame in the sun visor.
Carefully lever out the mirror frame so that the plastic teeth disengage from the recesses in the sunvisor frame.

4. Replace the bulbs.

To fit

Fit in reverse order.
