Parcel Shelf Support, 5D

To remove







1 Lift out the parcel shelf.
2 Detach the rear roof covering at the edge so that clearance for the D pillar trim is obtained.
3 Detach the D pillar trim by pulling it forwards (towards the front of the car), fastened with clips.
4 Remove the cover.

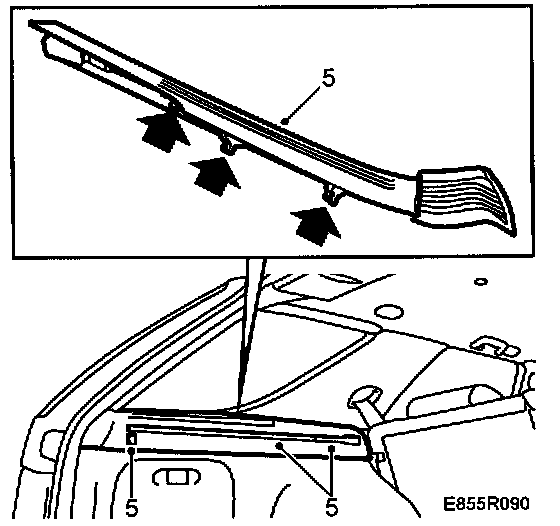

5 Remove the screws and lift out the parcel shelf support, secured with clips.







To fit







1 Lift the parcel shelf support into place, fit the clips and the screws.
2 Fit the cover.







3 Fit the D pillar trim, secured with clips. Adjust the weatherstrip over the edge of the D pillar trim.
4 Press the rear roof covering into place.
5 Fit the parcel shelf in place.
