Emblems on Front Wings

Emblems On Front Wings

To remove

- Protect the paintwork by taping around the emblem.
- Use steel scraper and carefully prise off the emblem.

To fit







- SE emblem

First wash the area where the emblem is to be mounted with pure benzine.

NOTE: The emblems and the car body must be at room temperature (approx. 20 degrees C) before the emblem can be affixed.

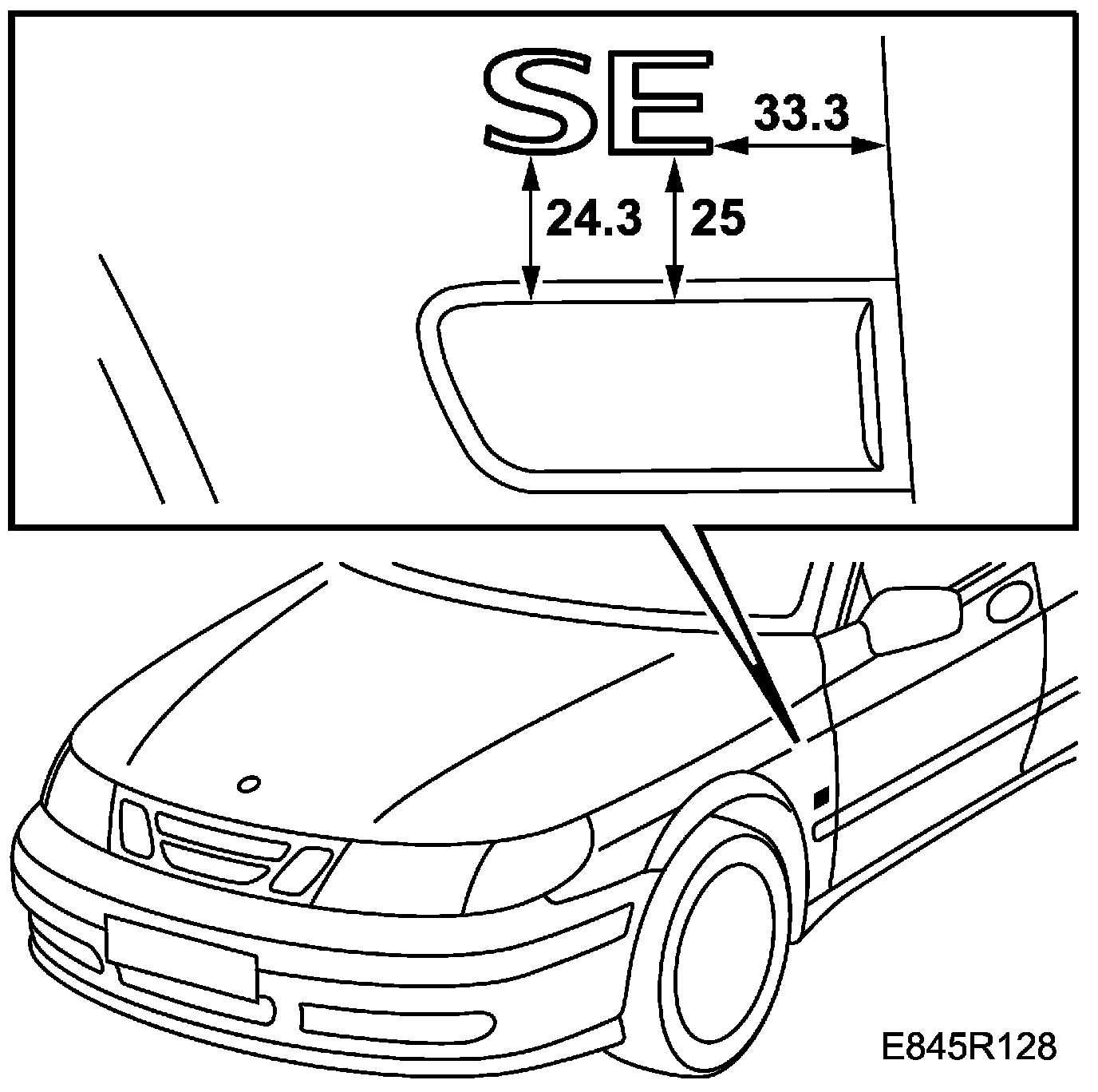

Mount the SE emblem on the left-hand front wing in accordance with the measurements in the illustration.

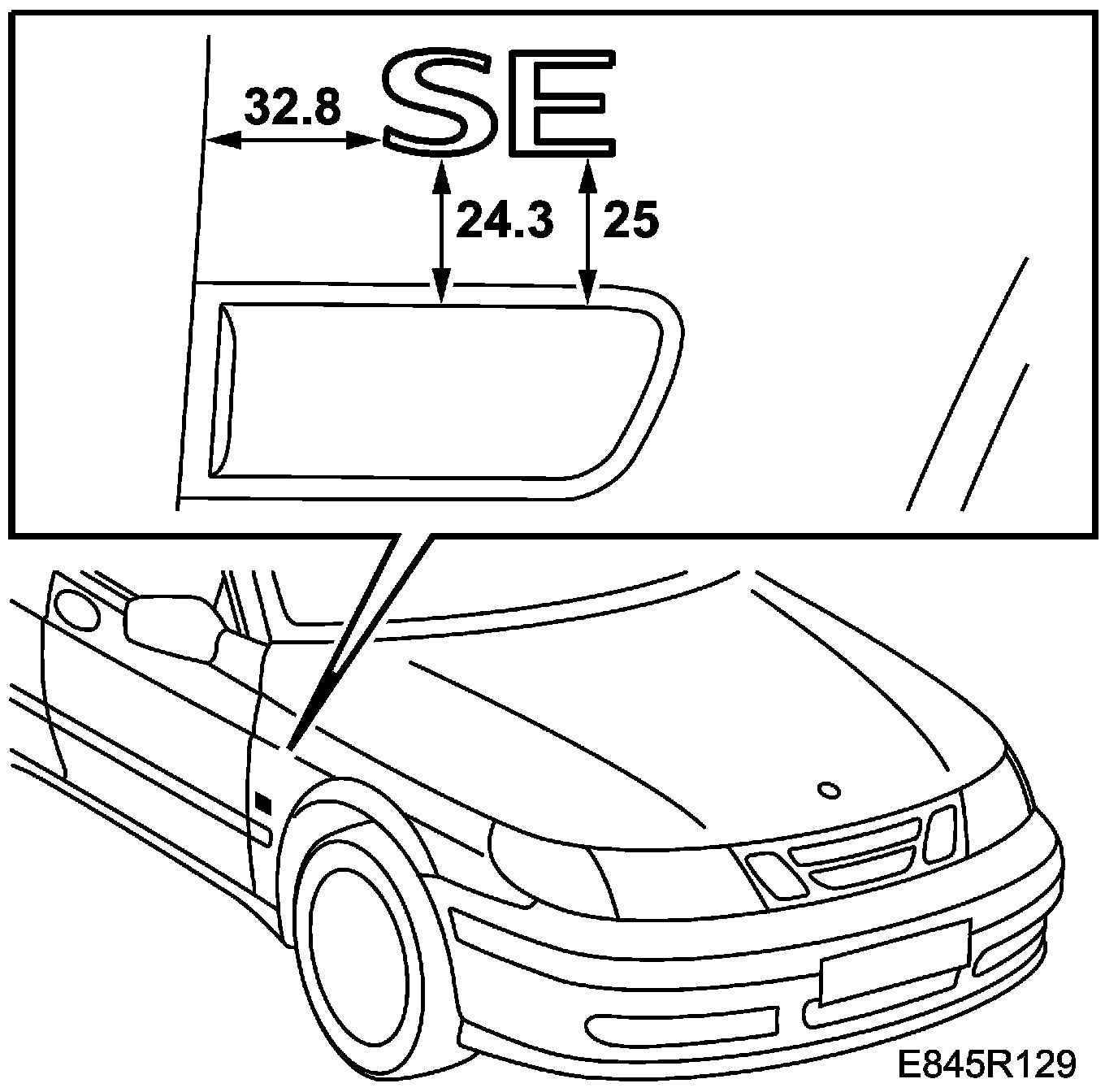

Mount the SE emblem on the right-hand front wing in accordance with the measurements in the illustration.







- Griffin emblem







First wash the area where the emblem is to be mounted with pure benzine.

NOTE: The emblems and the car body must be at room temperature (approx. 20 degrees C) before the emblem can be affixed.

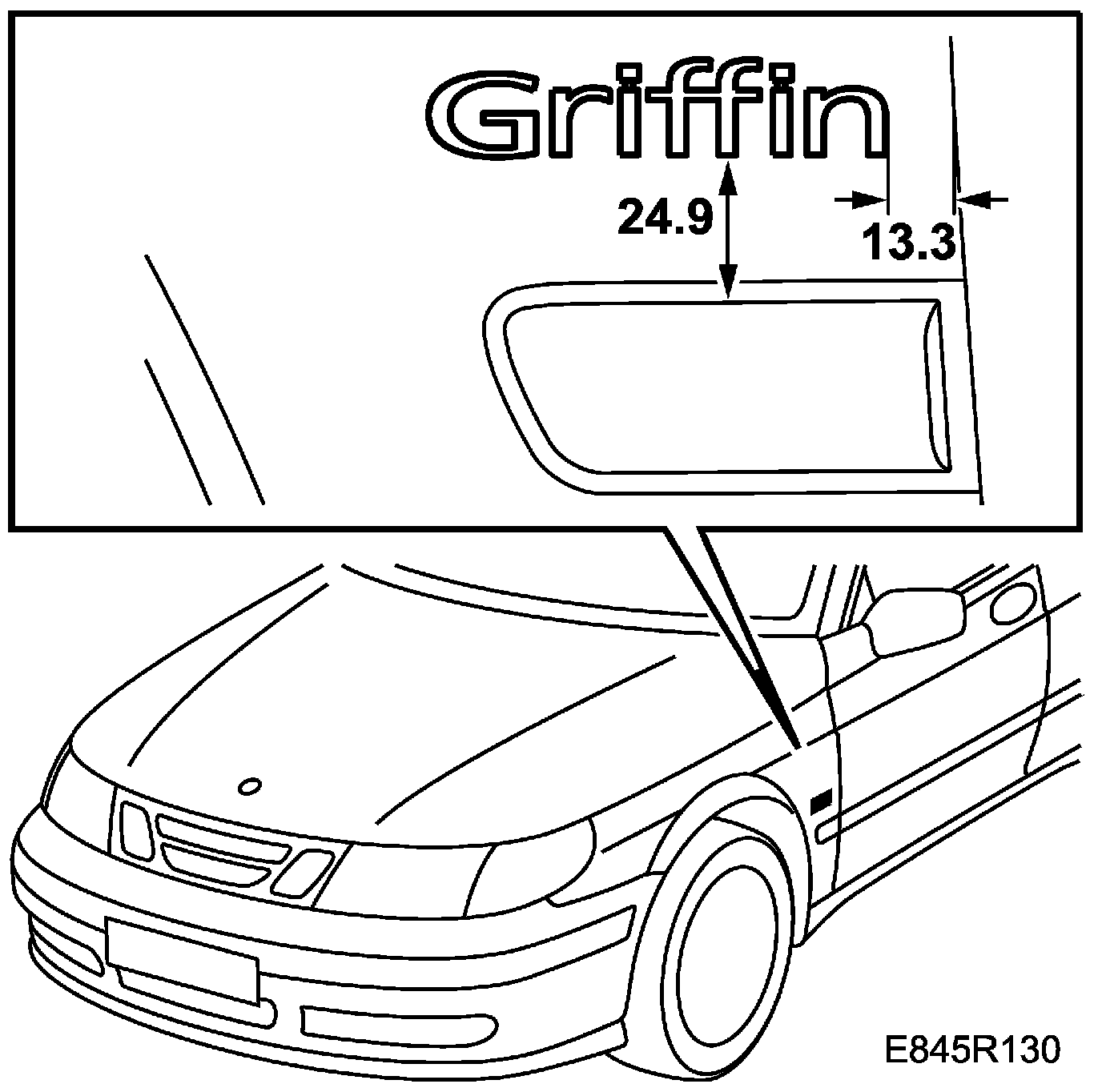

Mount the Griffin emblem on the left-hand front wing in accordance with the measurements in the illustration.

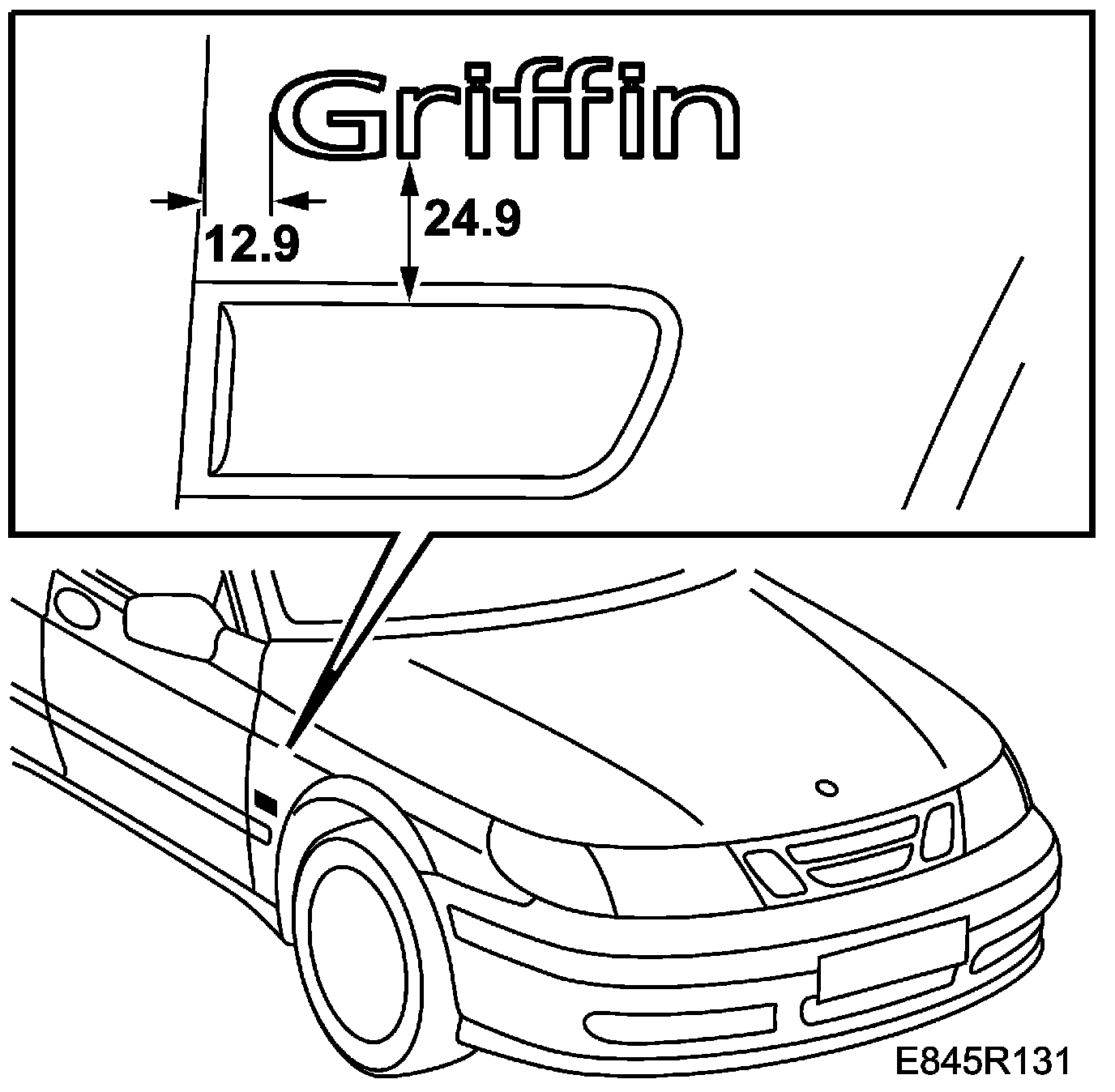

Mount the Griffin emblem on the right-hand front wing in accordance with the measurements in the illustration.







- Aero emblem







First wash the area where the emblem is to be mounted with pure benzine.

NOTE: The emblems and the car body must be at room temperature (approx. 20 degrees C) before the emblem can be affixed.

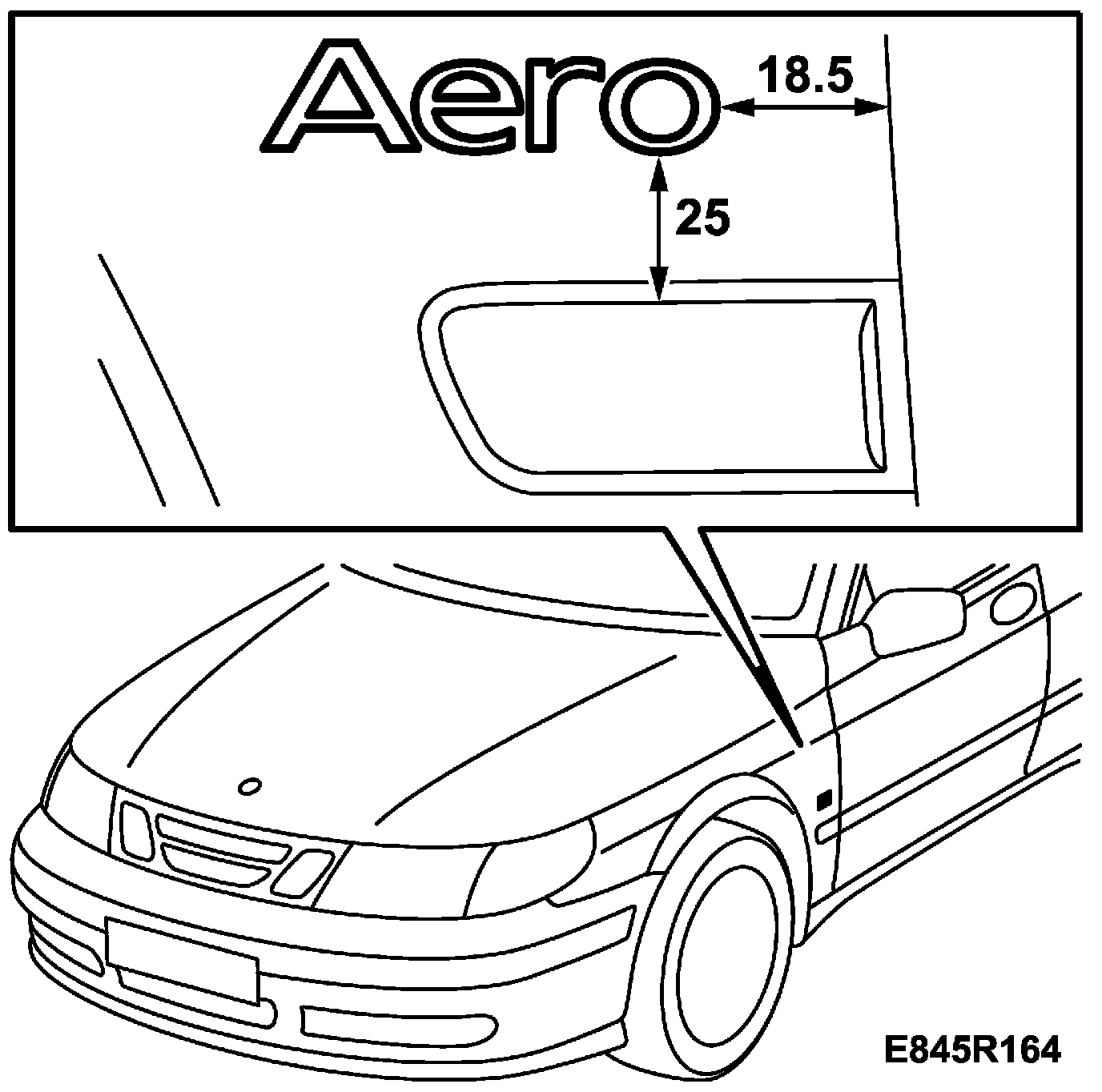

Measure out the position of the emblem on the front wing, as illustrated, and affix the Aero emblem.
