Emblems 5D

Emblems 5D







The emblems on the Saab 9-5 5D are attached in the same manner as on the 4D 9-5, with double-sided adhesive tape.

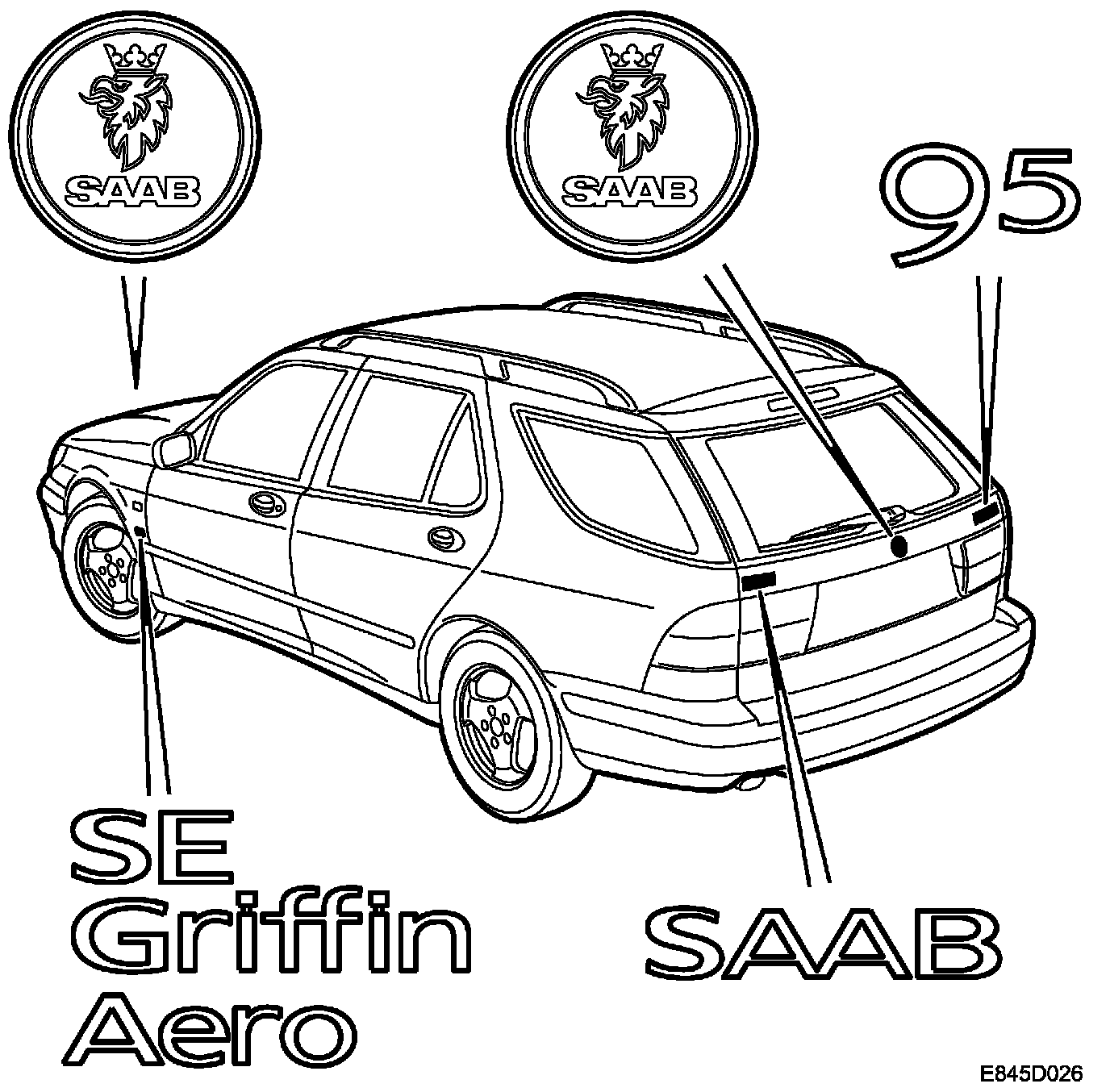

The emblem is mounted in the same way as for the 4D. The Saab emblem is mounted on the left-hand side of the boot lid and the 9-5 emblem on the right-hand side. SE, Griffin and Aero emblems are mounted on the left-hand and right-hand wings, above the protective moulding. Follow the measurements given carefully when mounting an emblem on the boot lid.

First clean the body thoroughly with benzine before mounting the emblems on the tailgate.
