Lock Unit, Fuel Tank Hatch

Lock Unit, Fuel Tank Hatch

To remove

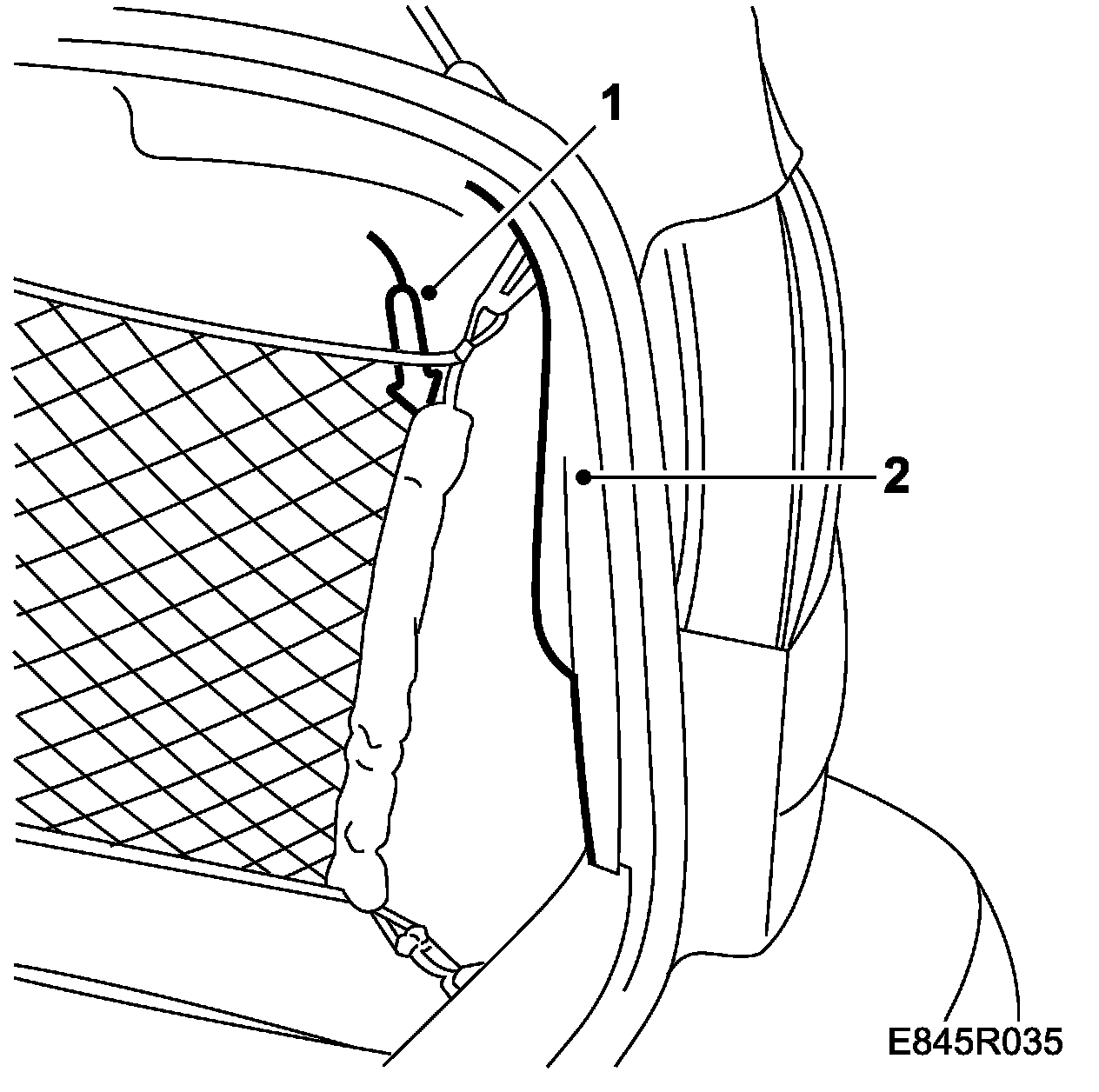

1. Open the hatch with the handle in the luggage compartment.





2. Loosen the carpet on the inside of the luggage compartment.

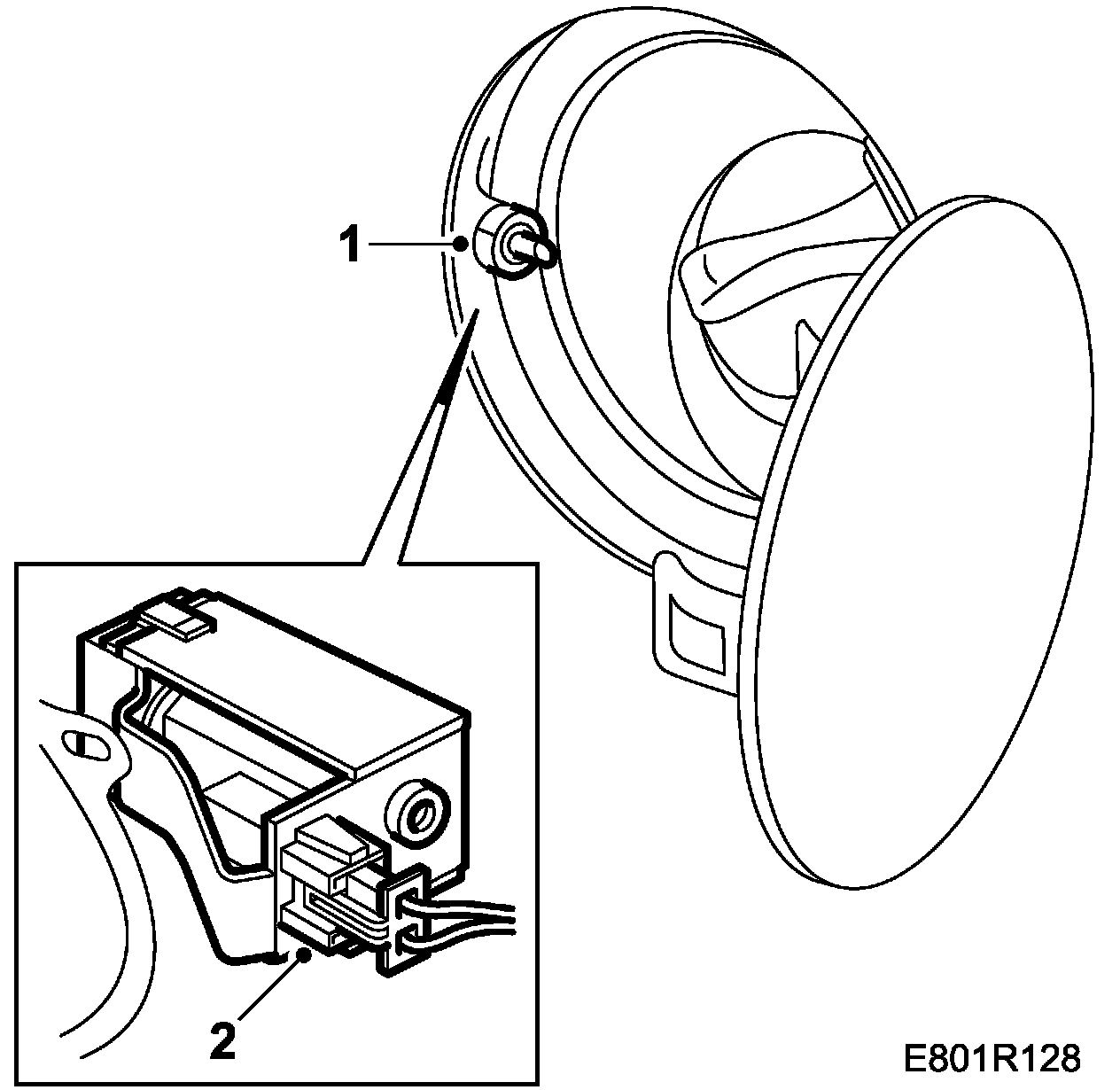

3. Unscrew the nut inside the tank hatch.





4. Unplug the connector on the lock unit and remove the lock.

To fit

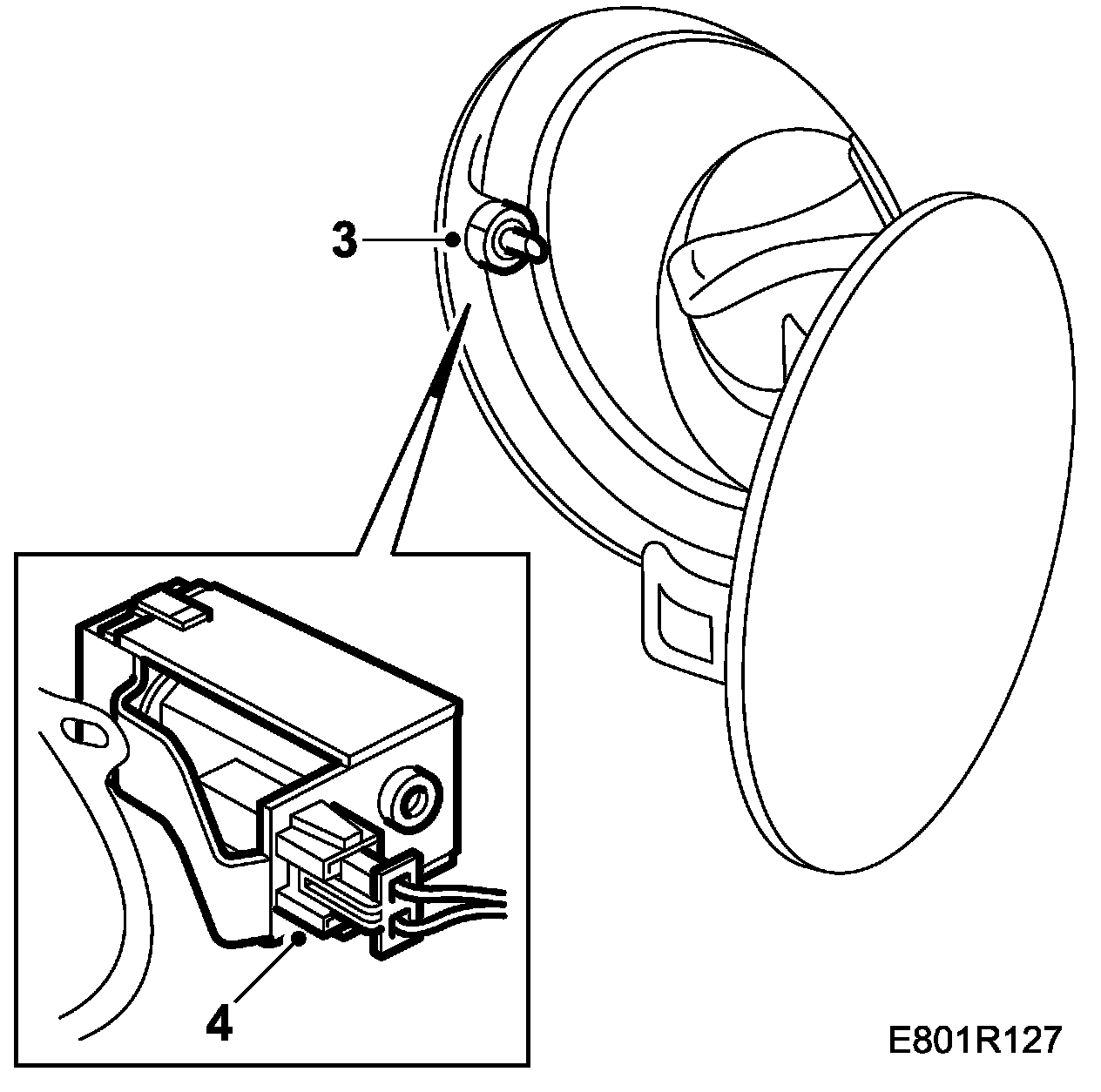

1. Screw on the lock unit with the nut inside the tank hatch.
2. Plug in the connector on the lock unit.

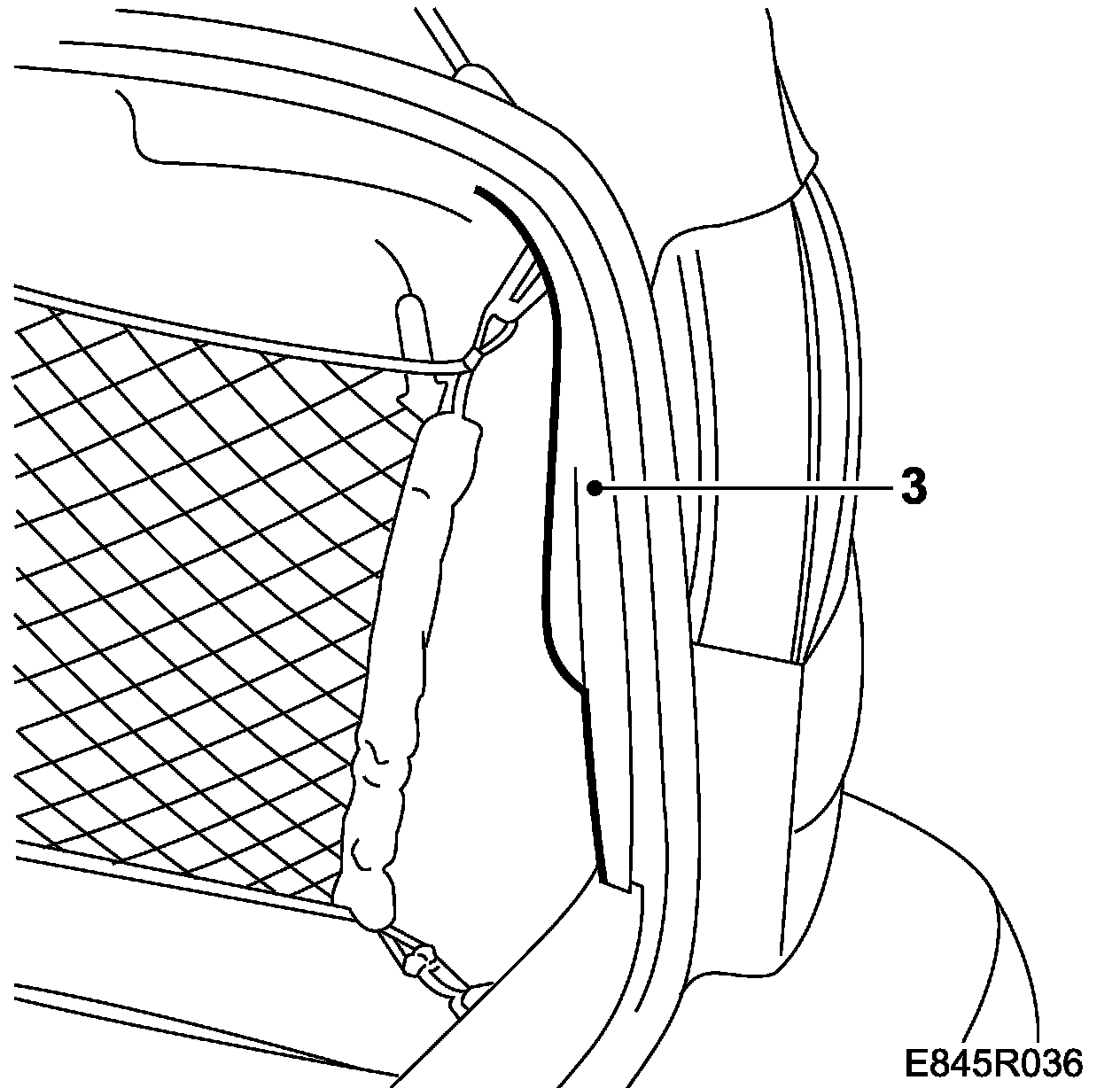

3. Fold back the carpet.
