Front Bumper Reinforcement: Service and Repair

Replacement Of Cellular Block, Front Bumper

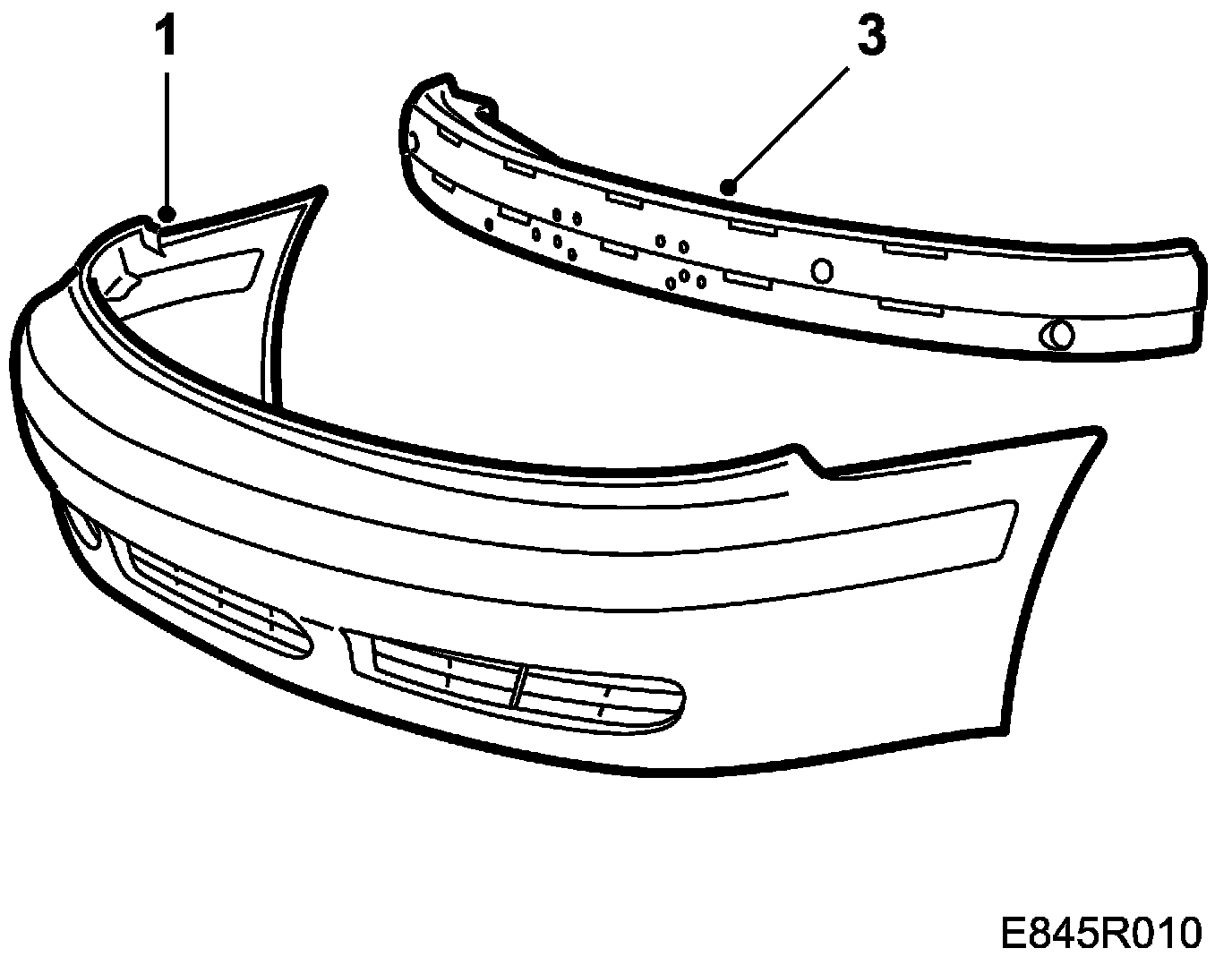

To remove







1. Remove the bumper.
2. Place the bumper on a protected workbench.

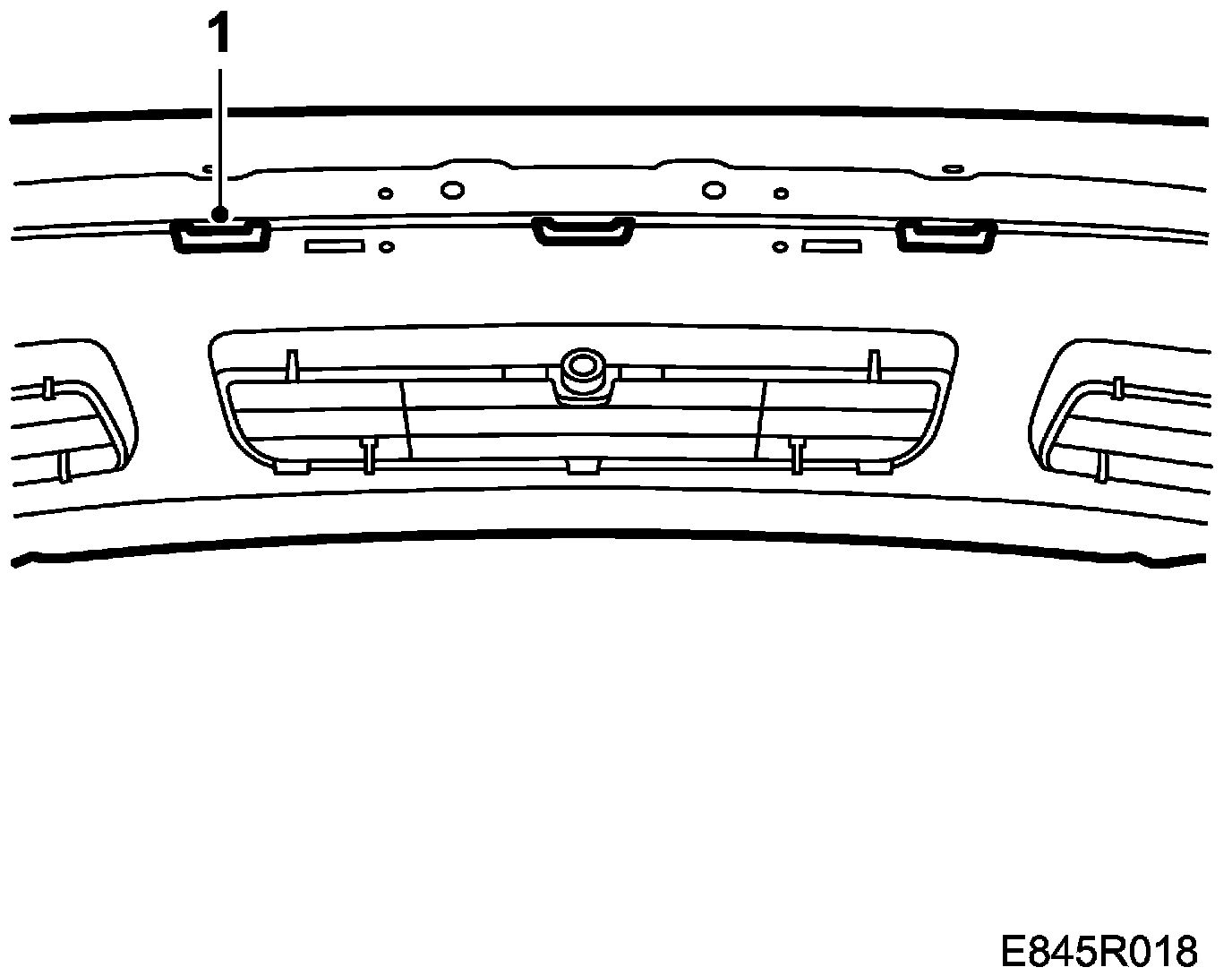

3. Loosen the cellular block by pulling out the bumper, releasing it from the spring catches (5 pcs.)

To fit







1. Position the spring catches in the cellular block and press it into the bumper shell.
2. Fit the bumper to the bumper member.
