Antenna Amplifier, Left-Hand Side (5D)

To remove







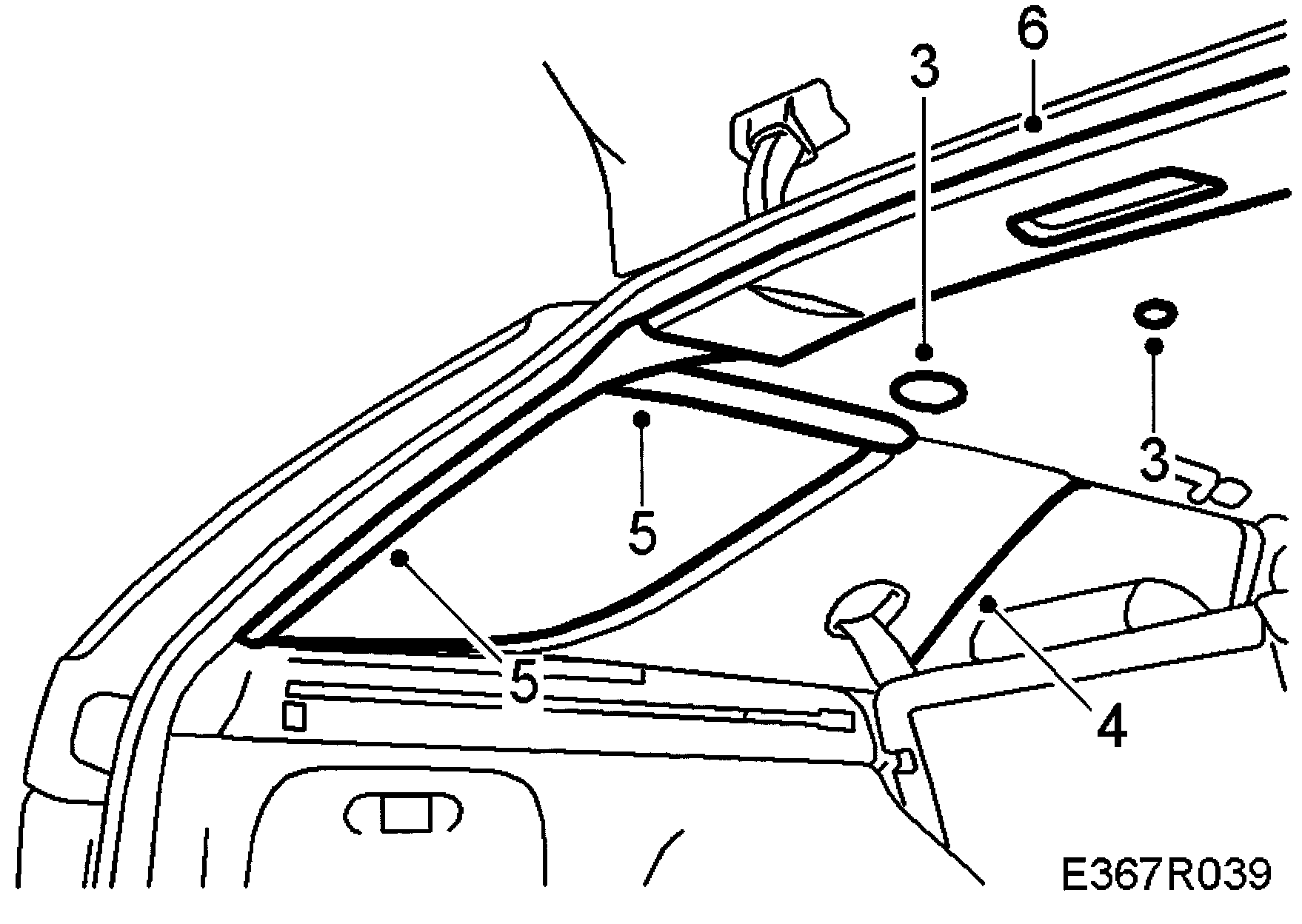

1 Remove the rear roof cover and unplug the connectors for the lighting.
2 Remove the D-pillar trim and the roof covers over the rear side windows.
3 Remove the fasteners in the roof trim over the rear side windows and undo the top of both C-pillar trims.
4 Remove the two clips in the roof and carefully bend down the headlining.
5 Undo all connections to the antenna amplifier.







6 Remove the nuts securing the antenna amplifier and remove the unit.

IMPORTANT

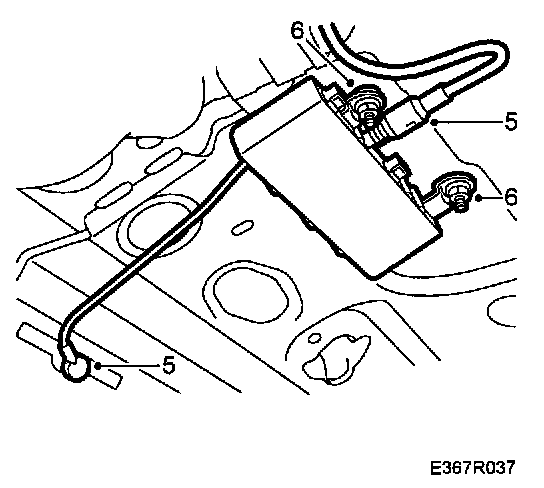

Handle the HF connector (5) with care. Exercise care when undoing the high frequency connector, Fuba GO-NOGO.

Disconnection must be performed correctly so as not to damage the connector. See Antenna amplifier (4D)

To fit







1 Fit the antenna amplifier and tighten the nuts.
2 Plug in all cables to the antenna amplifier.
3 Carefully lift up the headlining and fit the two clips in the roof.







4 Refit the C-pillar trims and fasteners over the rear side windows.
5 Fit the roof covers over the rear side windows and refit the D-pillar trim.
6 Plug in the lighting and fit the rear roof cover.

IMPORTANT

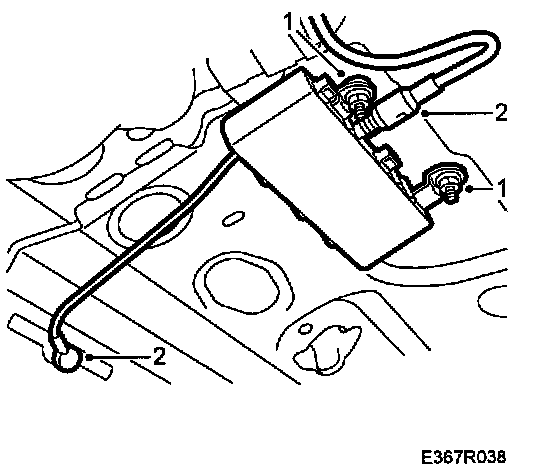

Handle the HF connector (2) with care. Exercise care when undoing the high frequency connector, Fuba GO-NOGO.

Disconnection must be performed correctly so as not to damage the connector. See Antenna amplifier (4D)
