Antenna, Phone: Service and Repair

To remove







1 Remove the front and rear scuff plates on the right-hand side.
2 Remove the front right seat.
3 Remove the right-hand side panel of the centre console.
4 Lift up the rear seat cushion and fold down the rear seat backrest.
5 Remove the screws securing the loudspeaker grille and side trim on the right-hand side.
6 Remove the right-hand C pillar trim.
7 Lower the rear edge of the headlining. Exercise care when handling the headlining as it can easily break.

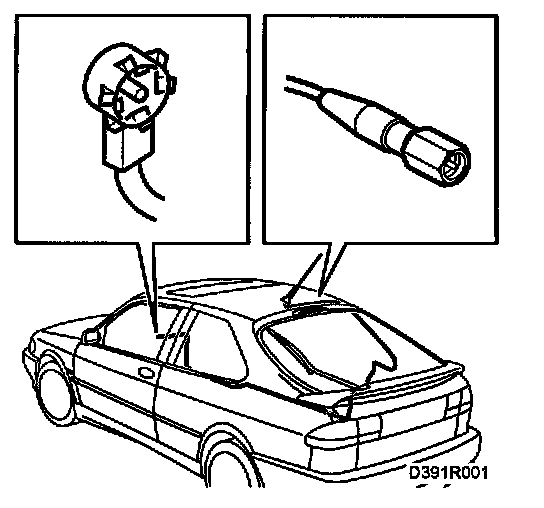

8 Unplug the connectors.

To fit
Before removing the old cable, position the new cable so that all fixings are in the correct position. Secured the cable with cable ties to the old retaining points.
Check the function before completing installation.
