Checking the Low-Speed Function

Checking the Low-Speed Function

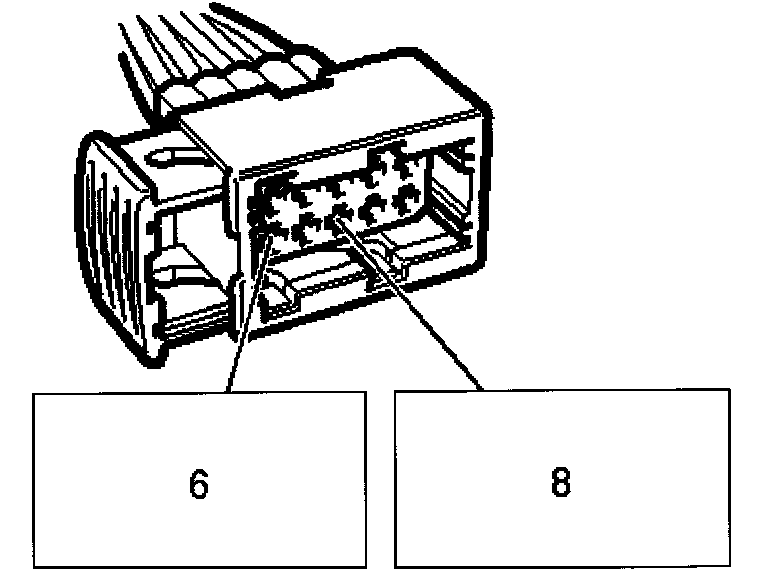

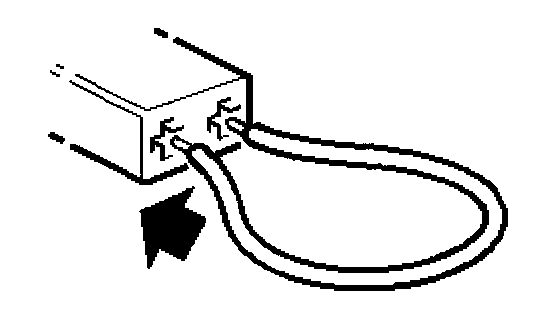

- Connect a jumper lead between pin 6 and pin 8 of the female connector.
- Carry out a functionality test.

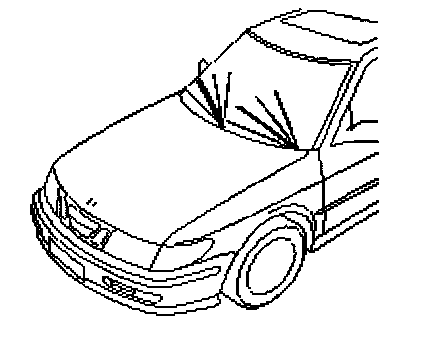

The windscreen wipers should start.

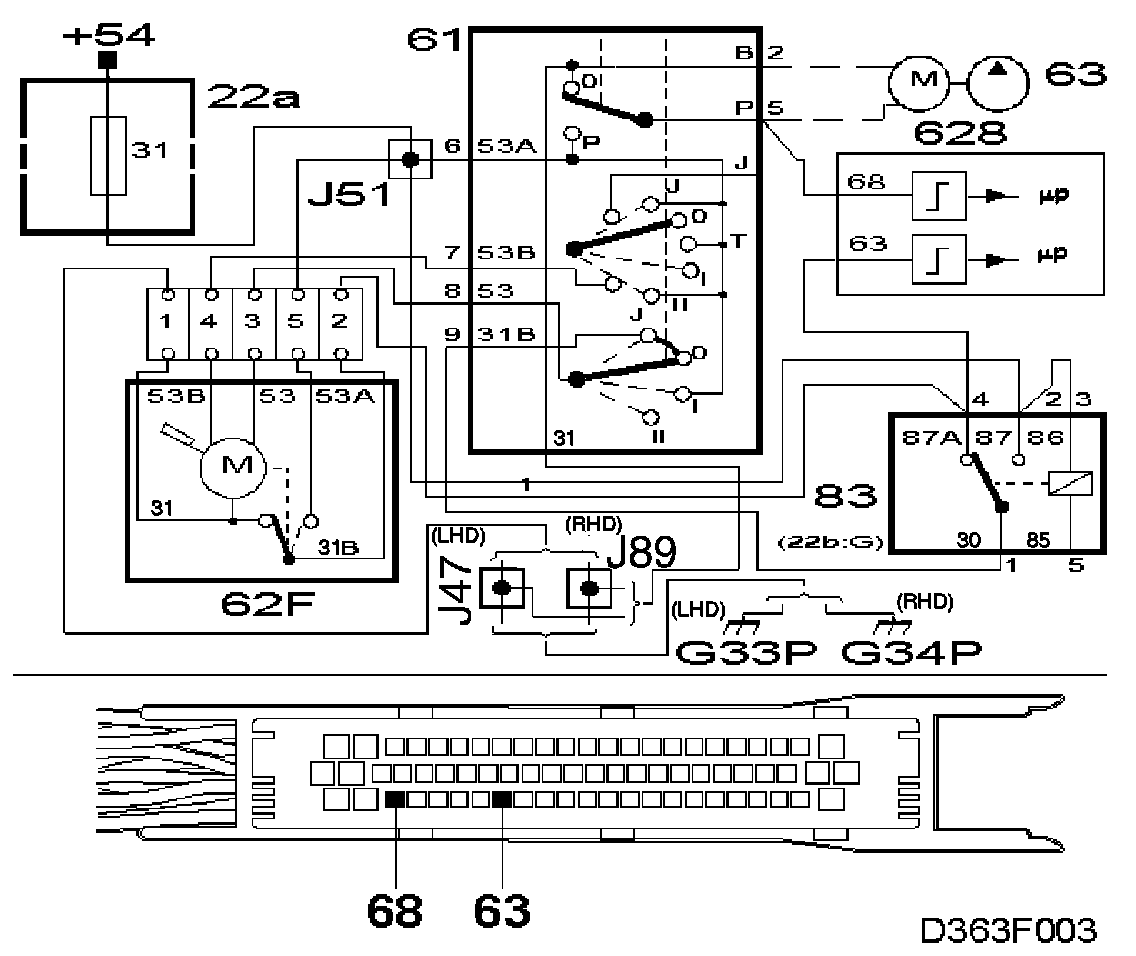

Checking the wiring harness.
Jiggle the leads and in-line connectors at several places and in different directions to reveal intermittent breaks and short circuits in the wiring harness. Observe the multimeter, test lamp or diagnostic tool while doing this.

Is the function correct?

NO - Checking the Ground Lead

YES - Changing Components - I
