Checking Relay

Checking Relay

















- Connect a Jumper lead between pins 2 and 1 of the relay holder.

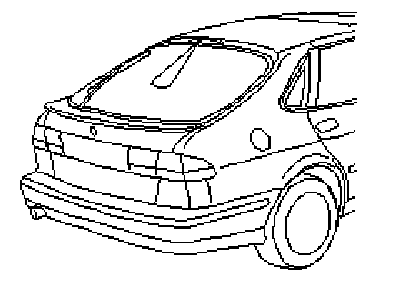

The rear window washer should start working.

Checking the wiring harness
Jiggle the leads and in-line connectors at several places and in different directions to reveal intermittent breaks and short circuits in the wiring harness. Observe the multimeter, test lamp or diagnostic tool while doing this.

Is the function correct?

NO - Rectifying the Lead - II

YES - Changing Components - II
