Differential Bearing Race, Clutch Housing

To remove
1. Remove the sealing ring.

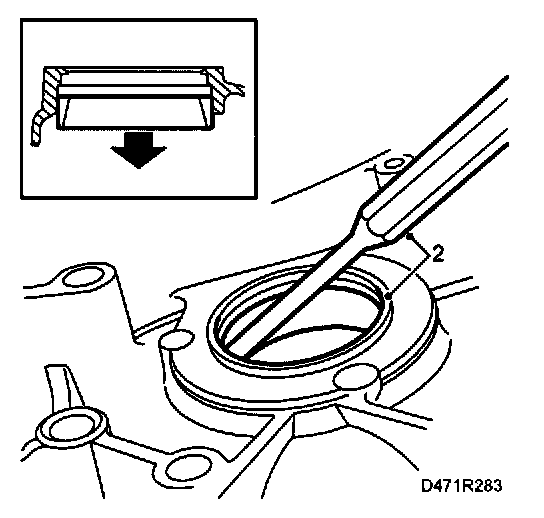

2. Carefully tap out the bearing race with a hammer and drift (destructive removal)

IMPORTANT: Tap the same amount on both sides!

To fit

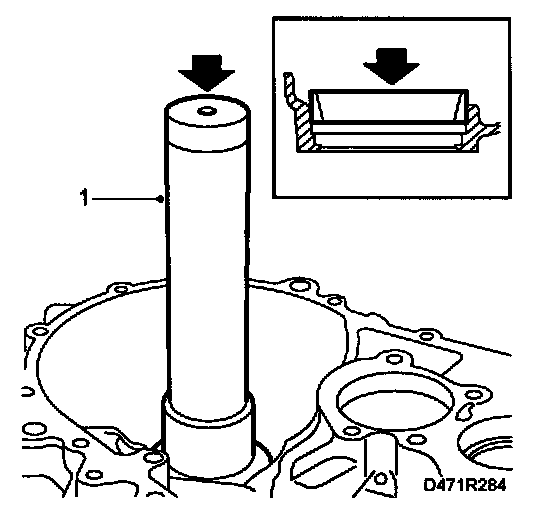

1. Fit (press) in the new bearing race to the stop with drift 83 90 122 and sleeve 87 91 204.

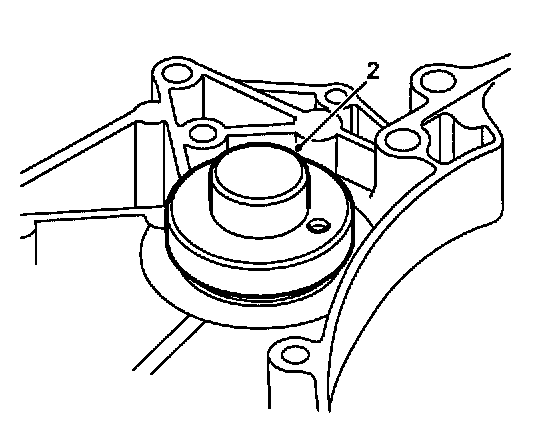

2. Fit a new seal with drift 83 90 122, or drift 87 92 657.
