Bearing Bush For Selector Rod
Bearing Bush For Selector Rod
To remove
The seal ring must have been removed first.
1.

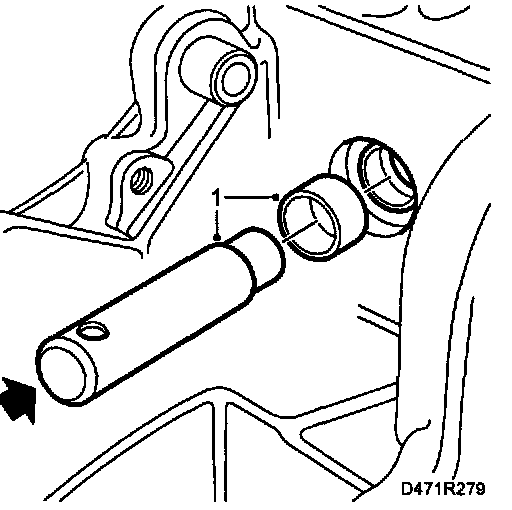

Drive out the bearing bushing with drift 87 91 224
To fit
1.
New bearing bushing is fitted with drift 87 91 22
