Accelerator Pedal Position (Trionic 7 With Bus)

Accelerator pedal position

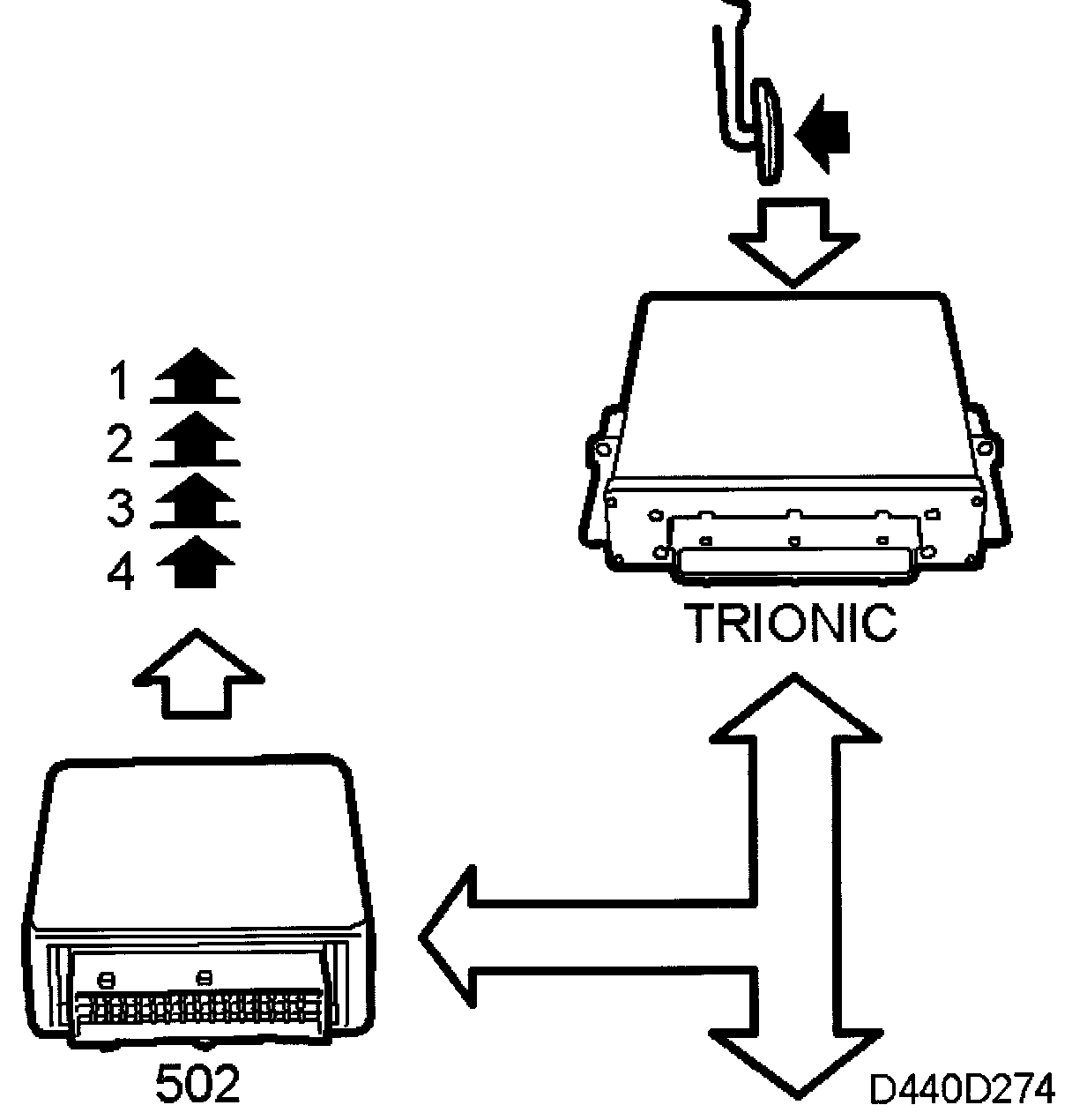

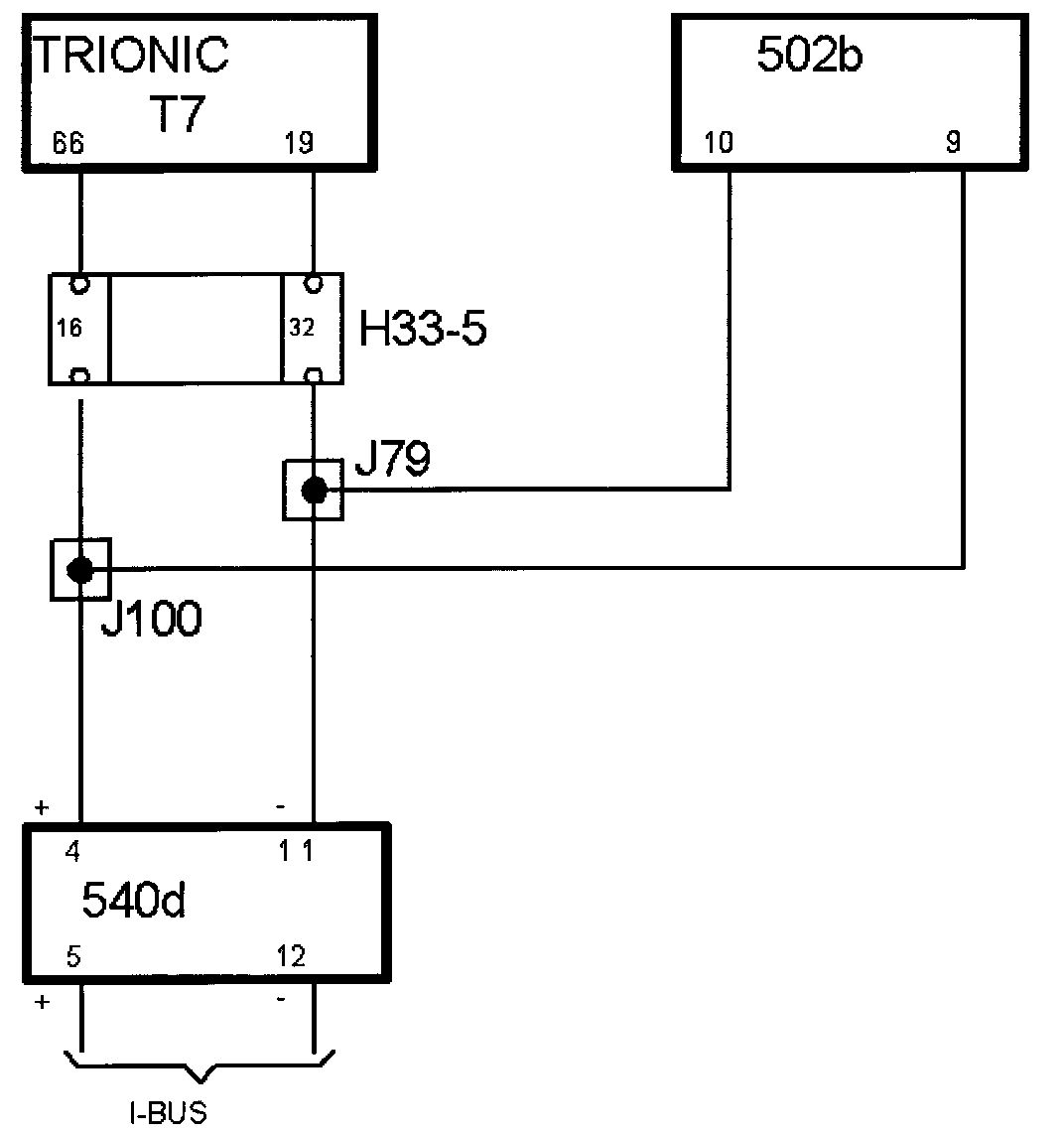

The Trionic has a sensor that provides information about accelerator pedal position. This information is available on the CAN bus.

The pedal position is expressed as a percentage of how far it is depressed.

The control module uses the information on pedal position to control the shifting points and when to activate Lock-Up.
