Power Supply
>>
Power Supply +30
Power Supply +30

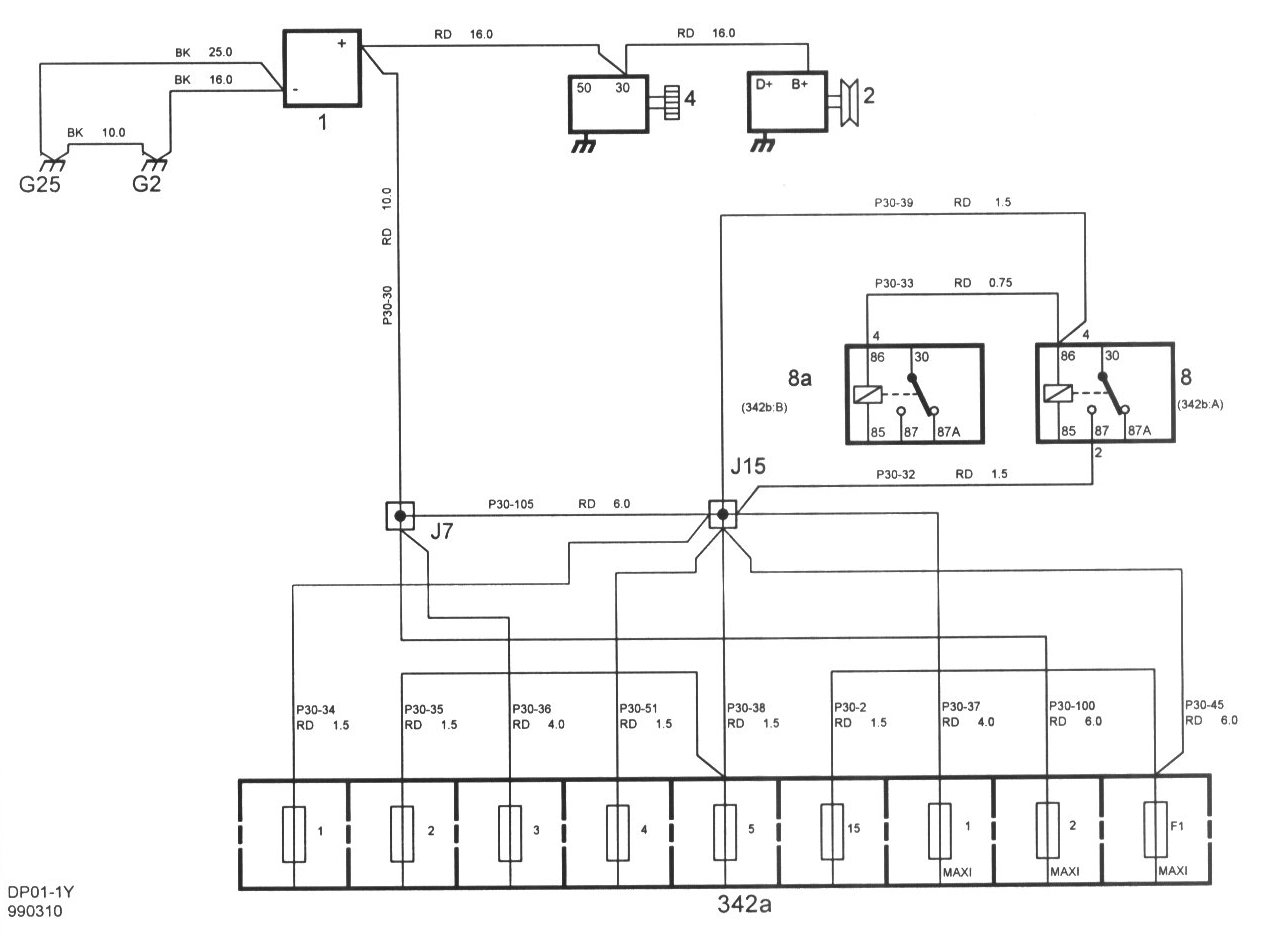

Circuit Schematic, Part 1:

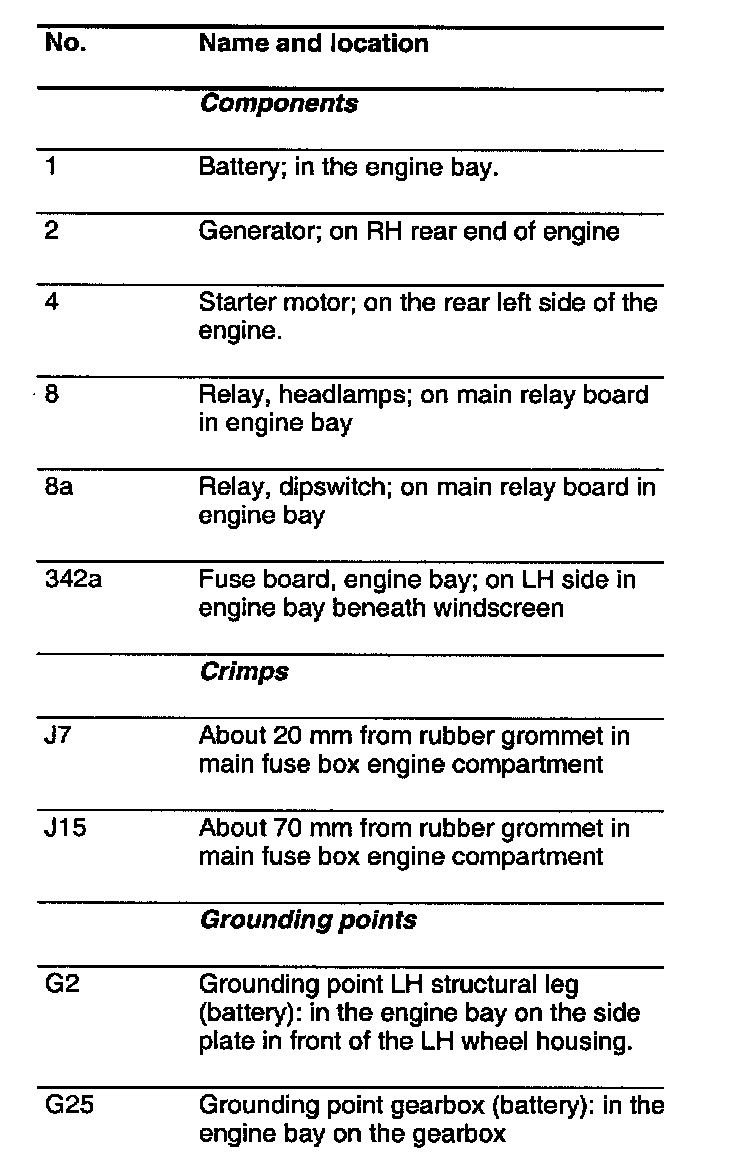

Location of Components for Part 1:

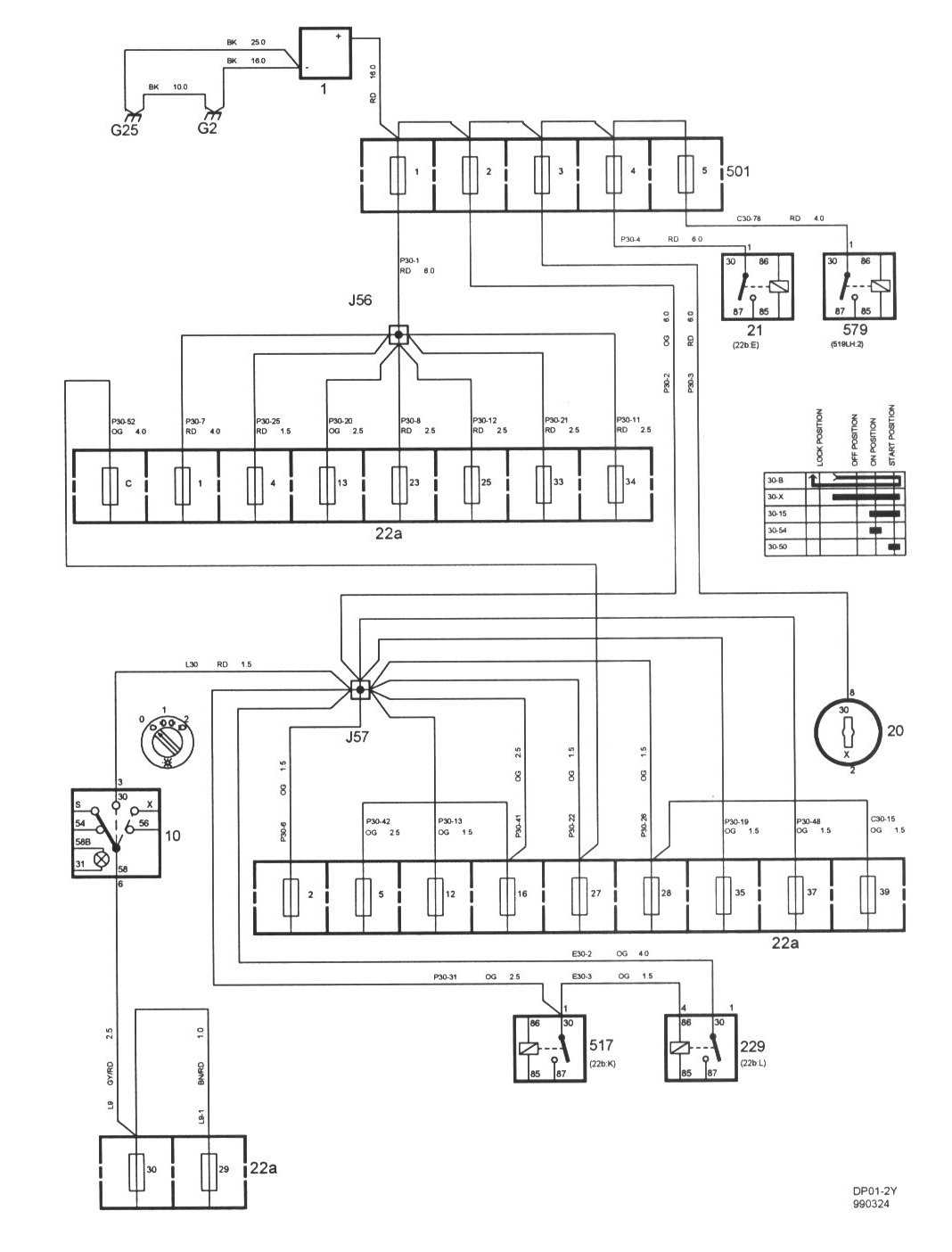

Circuit Schematic, Part 2:

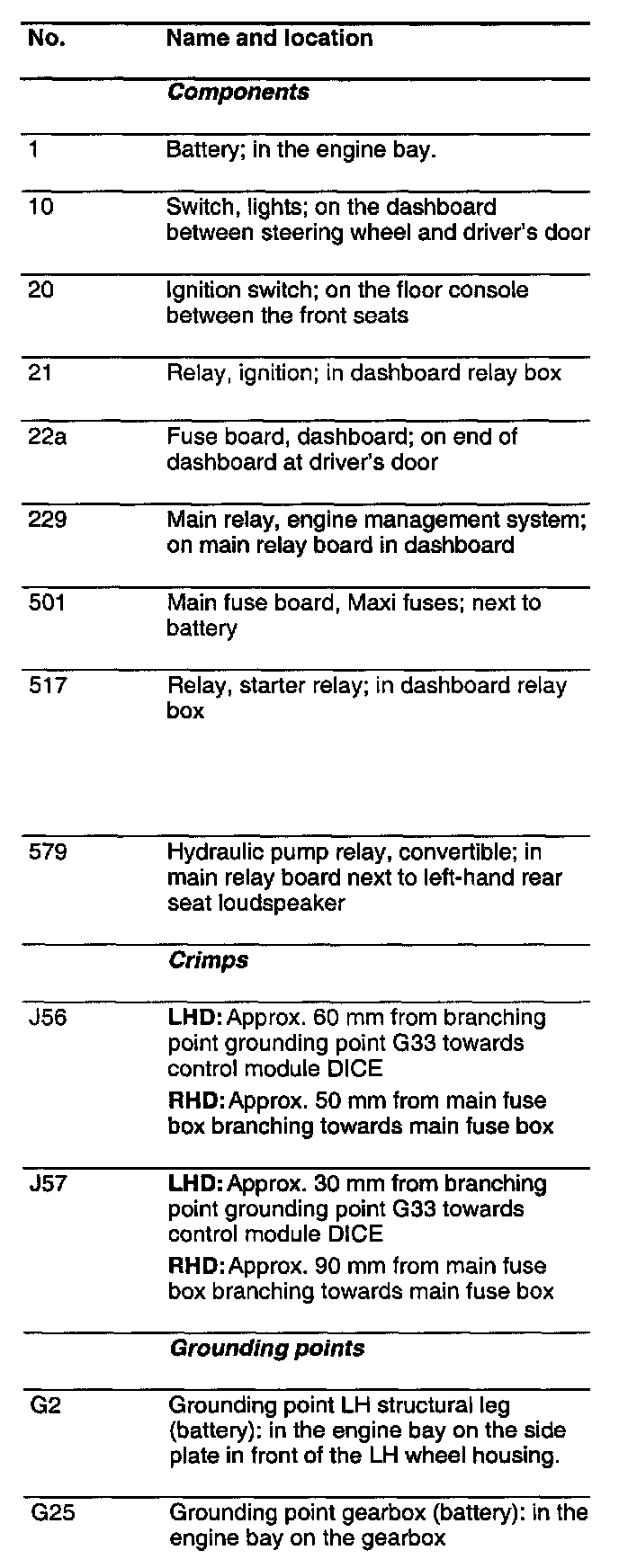

Location of Components for Part 2:
