G30

Location:

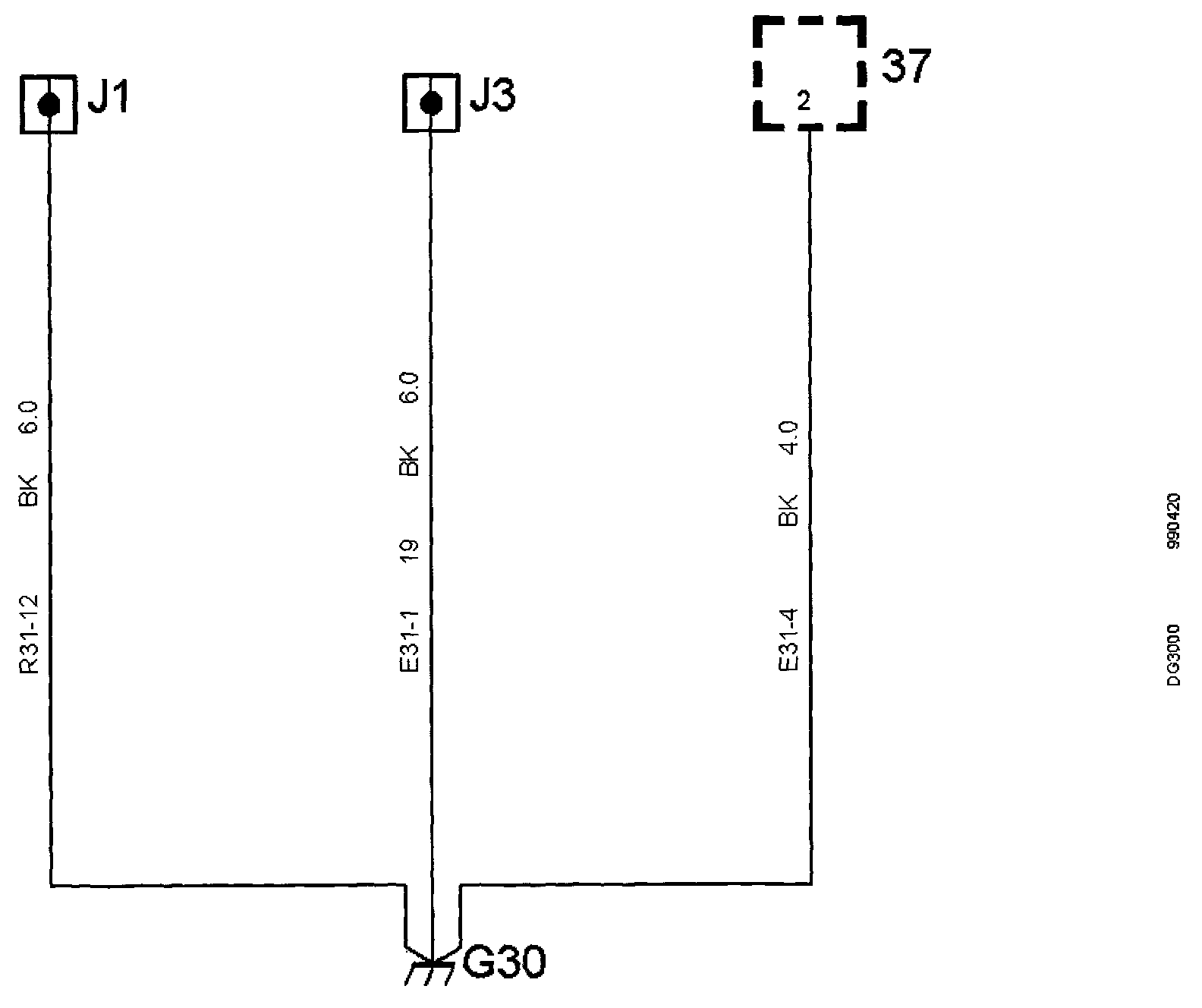

Schematic:

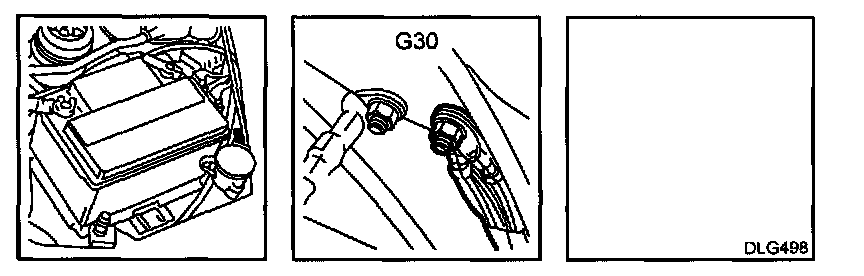

Location: in engine bay on side plate in front of LH wheel housing

Components connected:
37 Cooling fan
Via crimp J1
195 Level monitor, washer fluid
547 Control module, ABS
Via crimp J3
11FL Lamp, dipped beam, left
12FL Lamp, main beam, left
13FL Lamp, parking light, left
27FL Lamp, direction indicator, front, left
66FL Engine, headlamp wiper, left
85FL Lamp, extra fog light, LH
118FL Lamp, corner light, left
119FL Lamp, side reversing light, left
22Bb Filament monitor, front lamps
234FL Lamp, side position lights, left
280FL Motor, beam-length adjustment, LH
421 Connection, parking heater, diesel
459 Motor, vacuum pump
