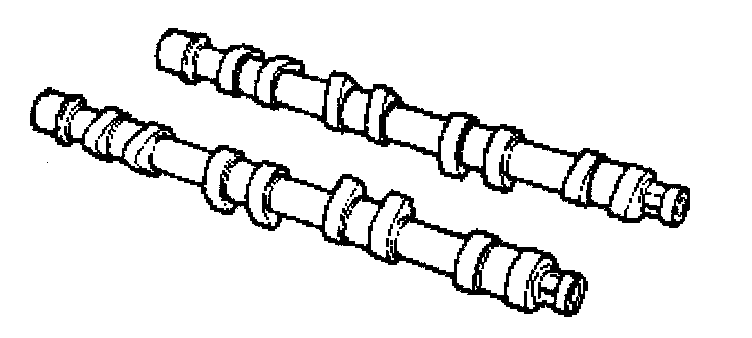

Camshafts

Camshafts





General Data

Number of Bearings 5
Bearing Diameter 28.922-28.935 mm
End Float 0.08-0.35 mm

Height of Lift

Inlet Valve 8.31 mm
Exhaust Valve 8.07 mm

Valve Timing

Inlet Valve
Start 12° BTDC
End 39° ATDC

Exhaust Valve
Start 37° BBDC
End 14° ATDC
