9-3 SE Convertible (9400) L4-2.0L Turbo (B205) HO
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Automatic Transmission/Transaxle
>>
System Specifications
>>
Shifting Points
>>
SPORT Position
SPORT Position

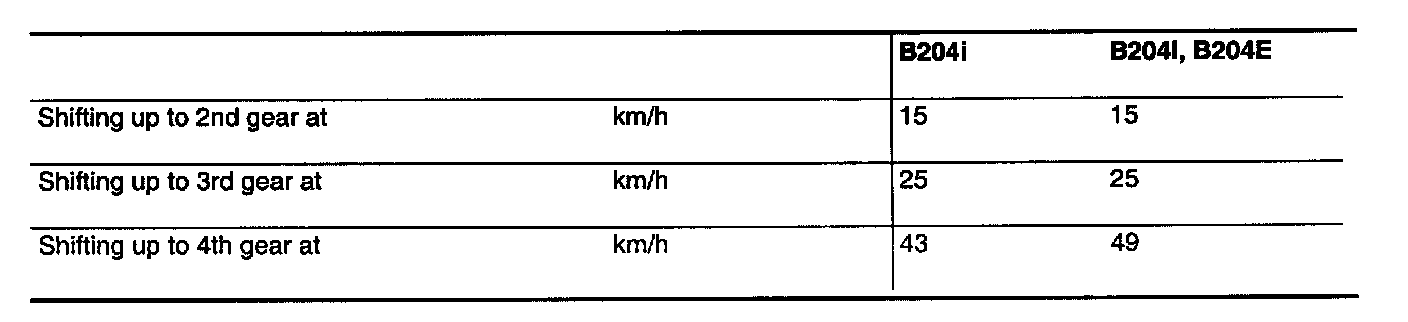

Smallest possible throttle opening, accelerator still

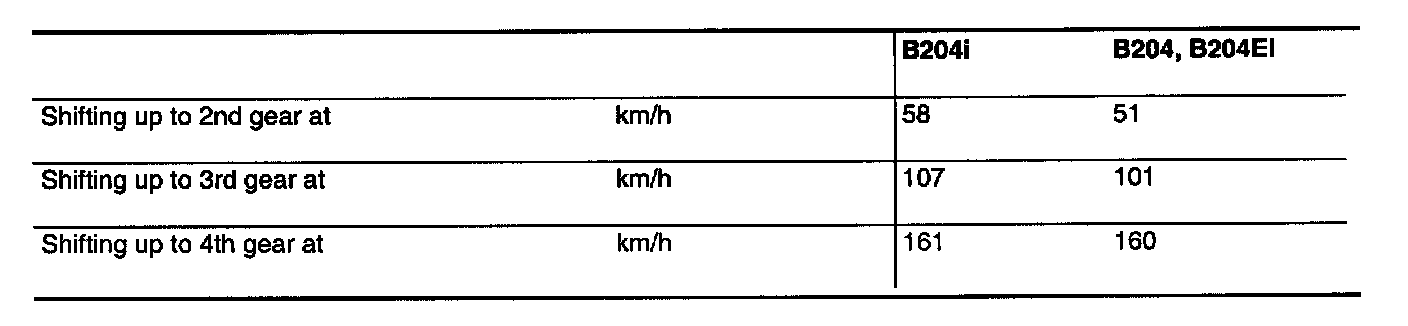

Accelerator fully depressed (without kickdown)

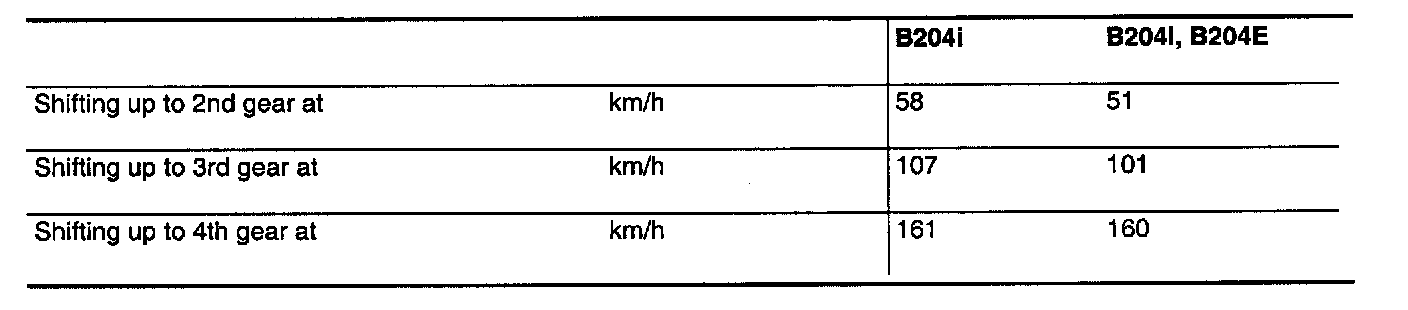

Accelerator fully depressed (with kickdown)

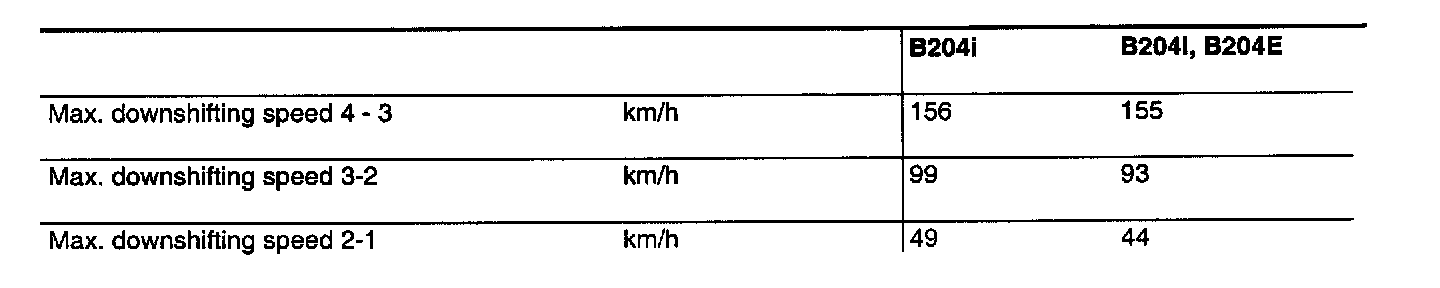

Accelerator pedal depressed to kickdown at different speeds
