Main Unit, Audio System 1, 2 and 3

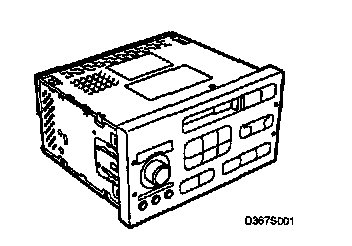

Main unit, Audio System 1

Main Unit, Audio System 1:

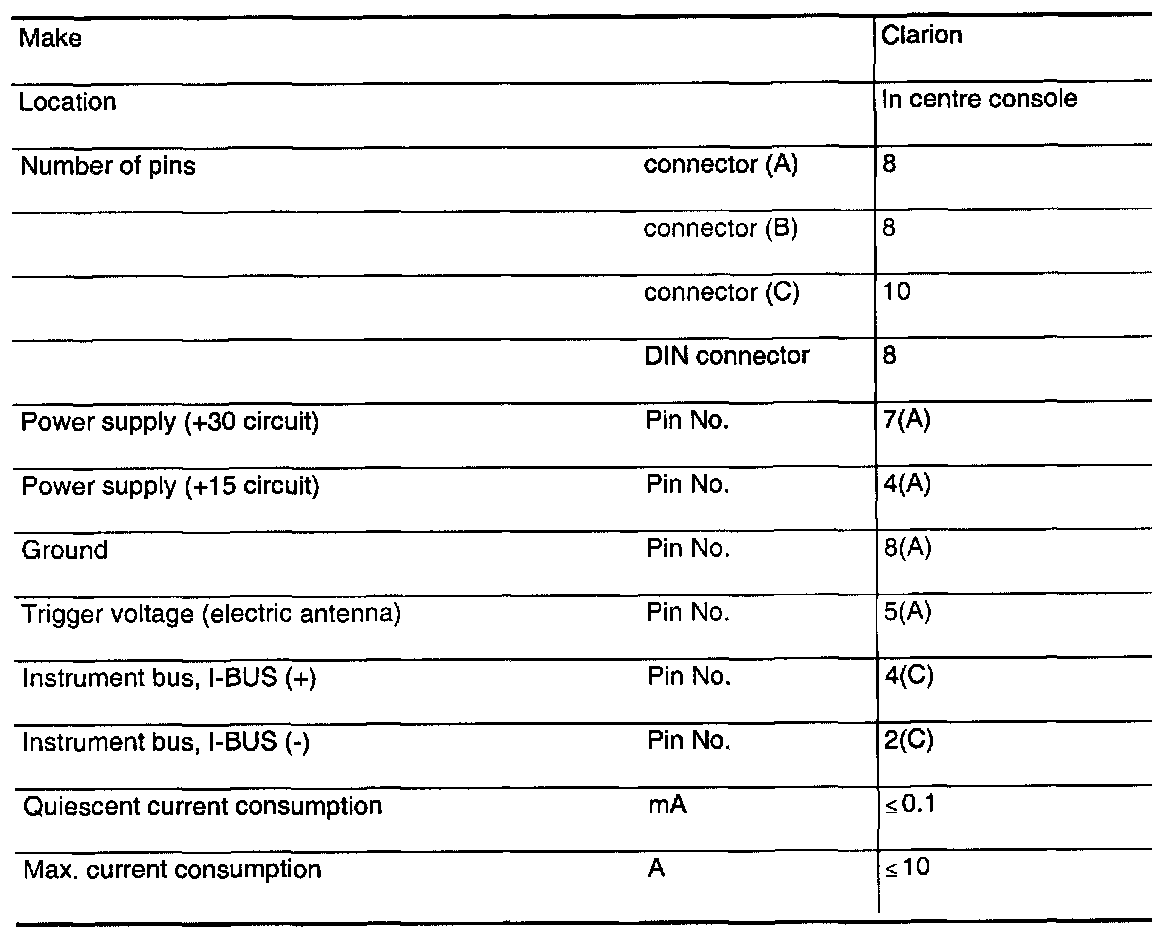

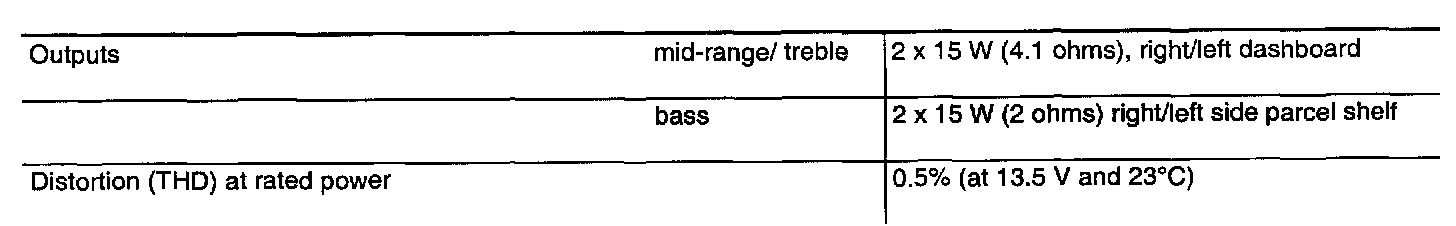

Amplifier, Internal:

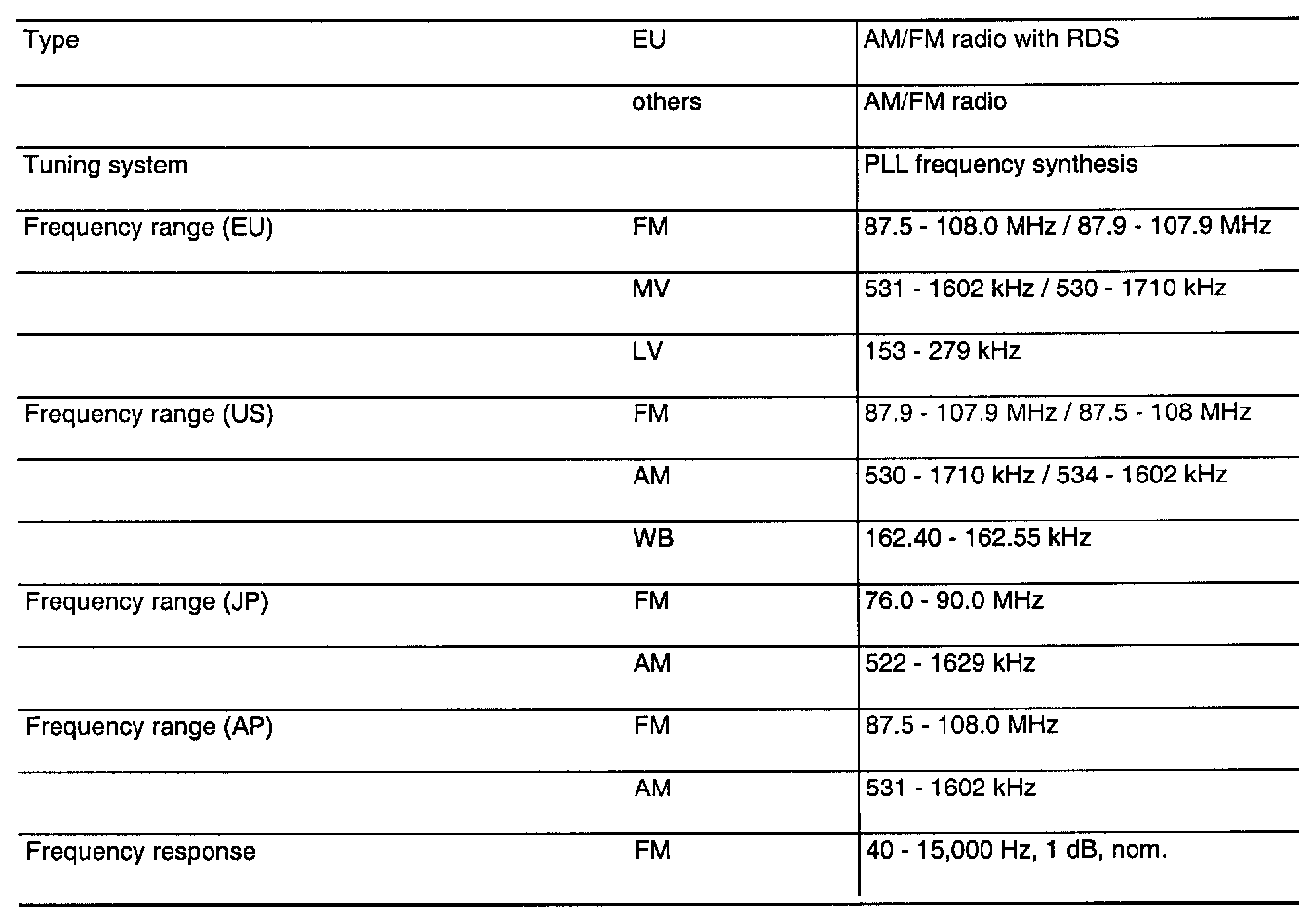

Radio:

Cassette Player

Mechanism Microprocessor controlled
Noise reduction Dolby B, Dolby C (US)
Frequency response 40 - 16,000 Hz, 2 dB, nom. (metallic tape, Dolby off)

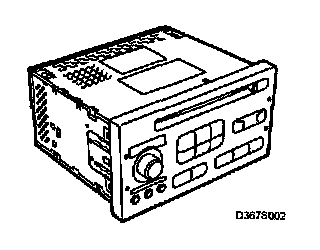

Main unit, Audio System 2 and 3

Main Unit, Audio System 2 And 3:

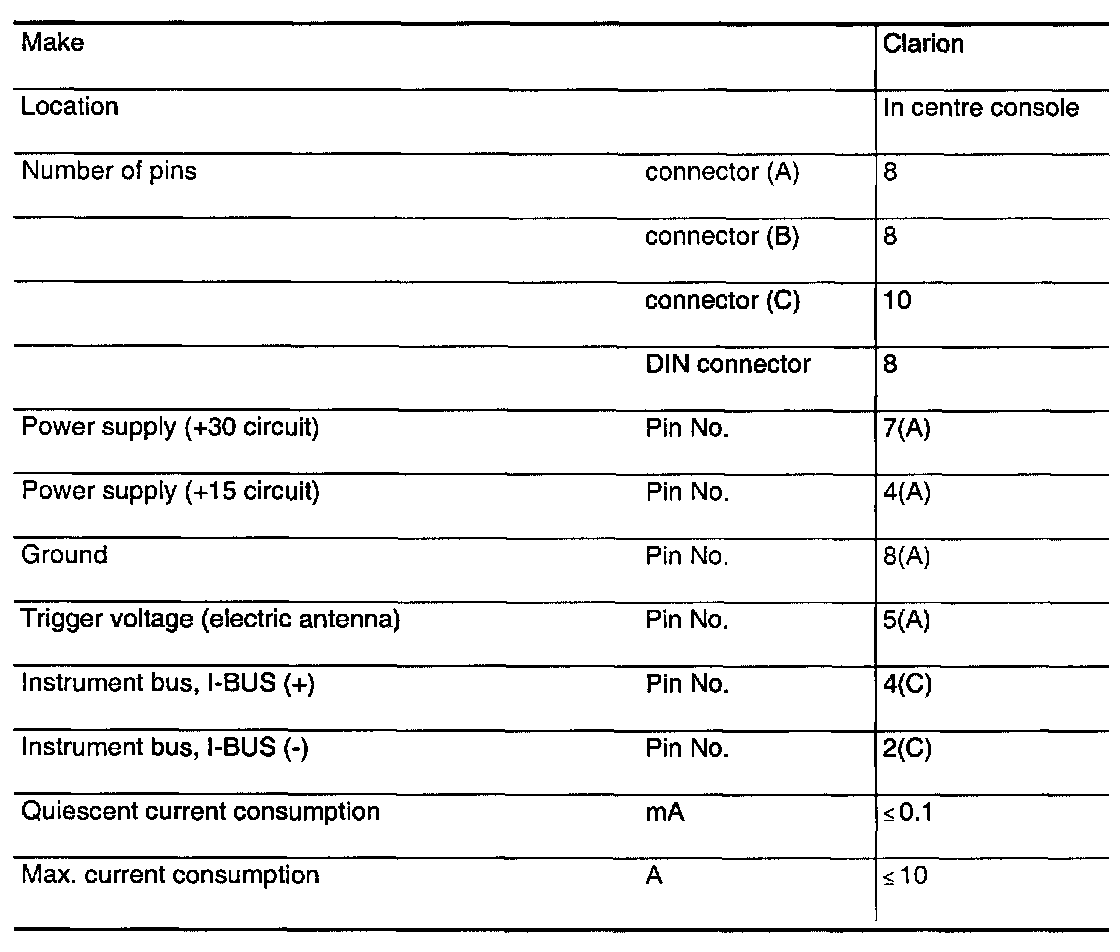

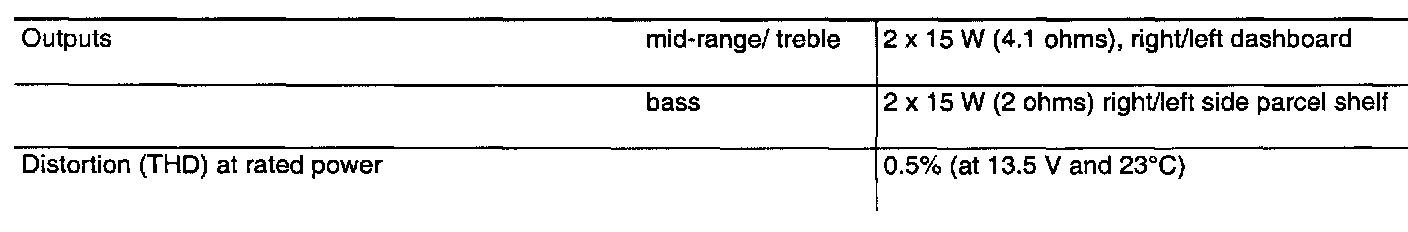

Amplifier, Internal:

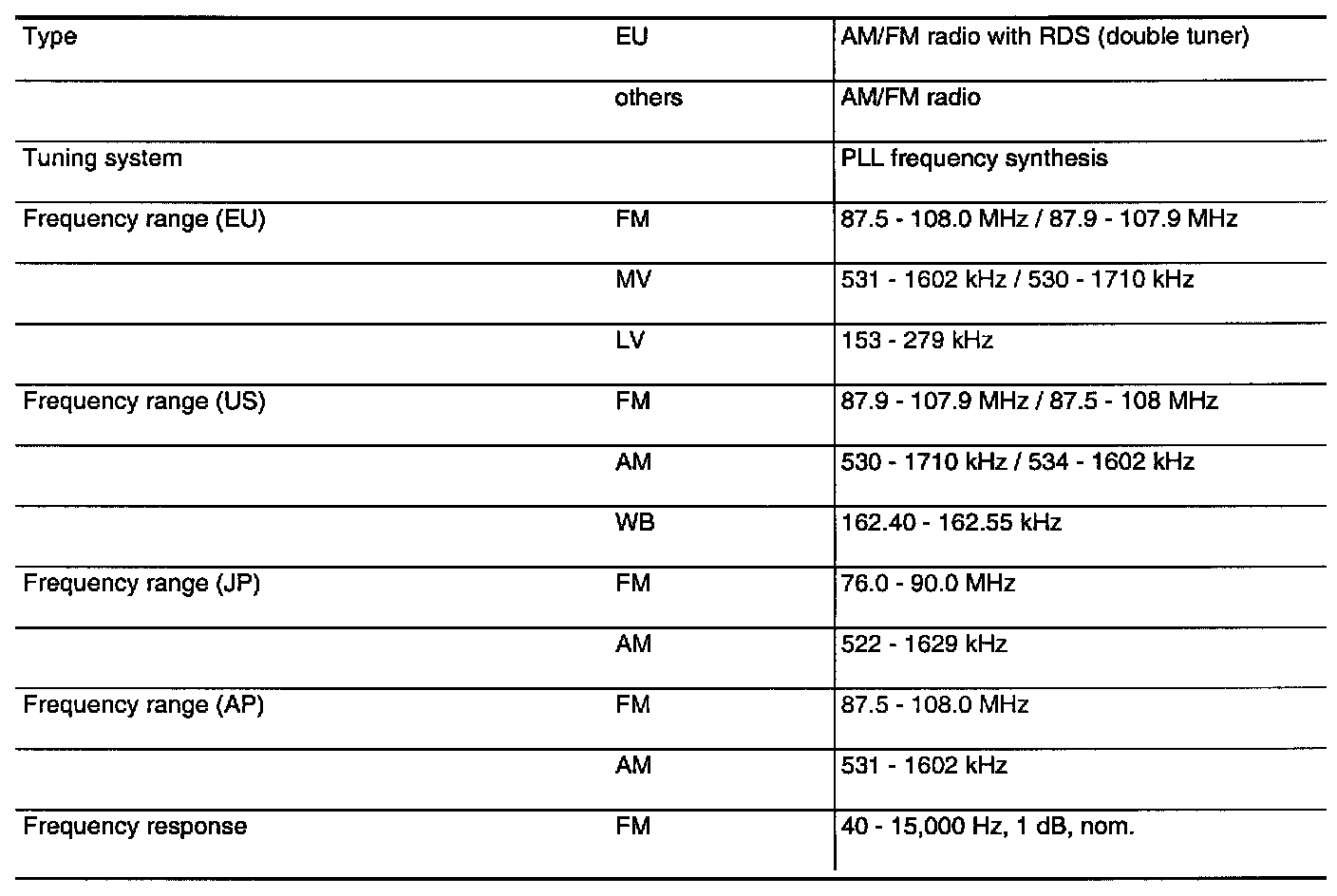

Radio:

CD Player

Type Single, 1 x CD (8 and 12 cm diam. discs)
Frequency response 20 20,000 Hz, 0.5 dB, nom.


WARNING
The CD player in the main unit is a Class 1 laser product

- The CD player in the main unit may be serviced and repaired only by a qualified engineer.
- If the casing on the main unit is damaged, laser radiation can occur with risk of injury.
