Test Readings, Amplifier Connections
Test Readings, Amplifier Connections

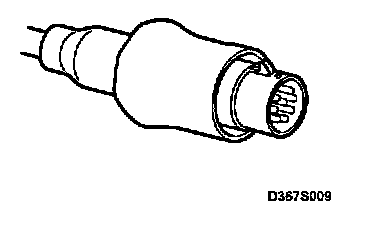

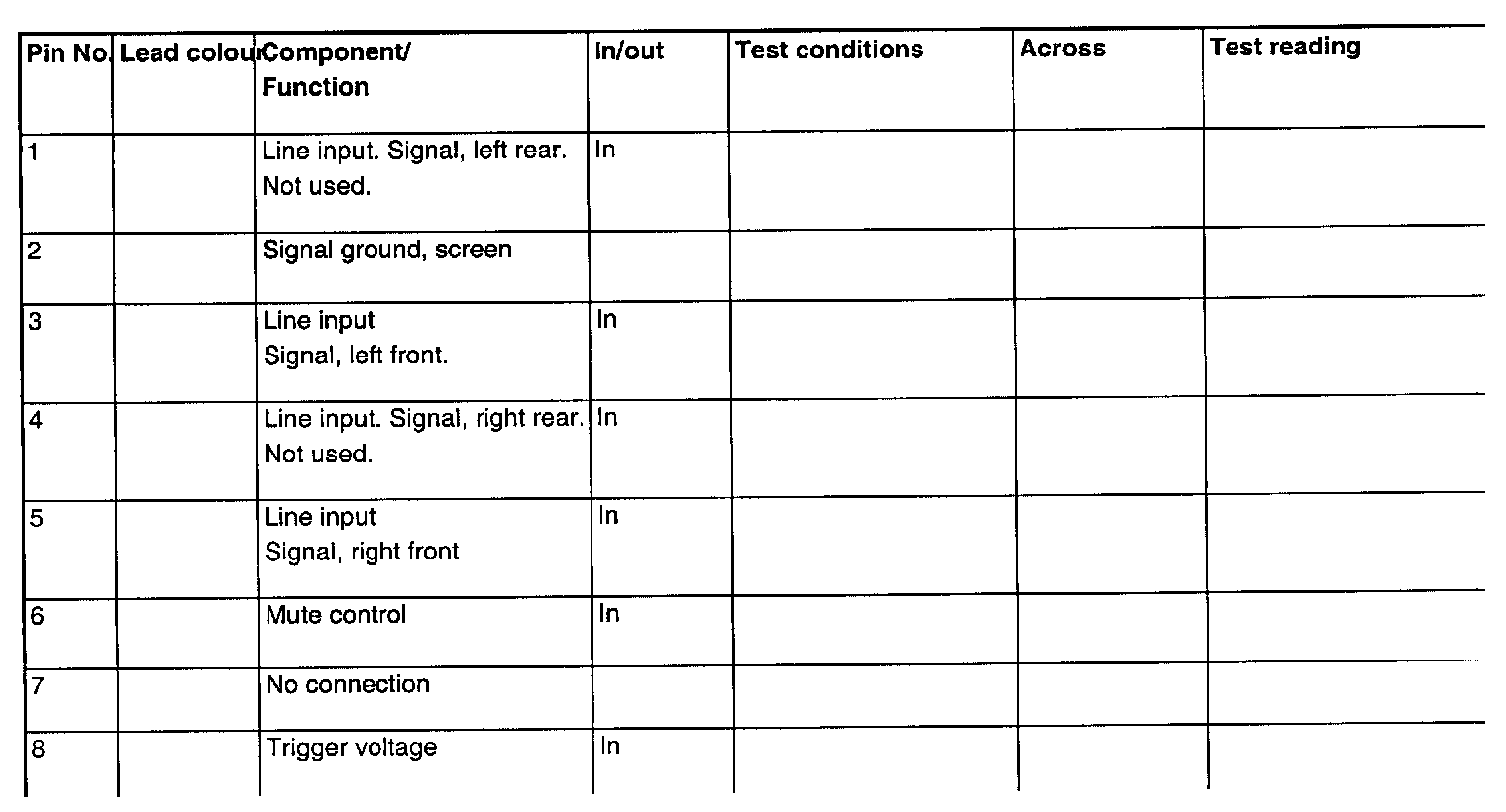

DIN Connector:

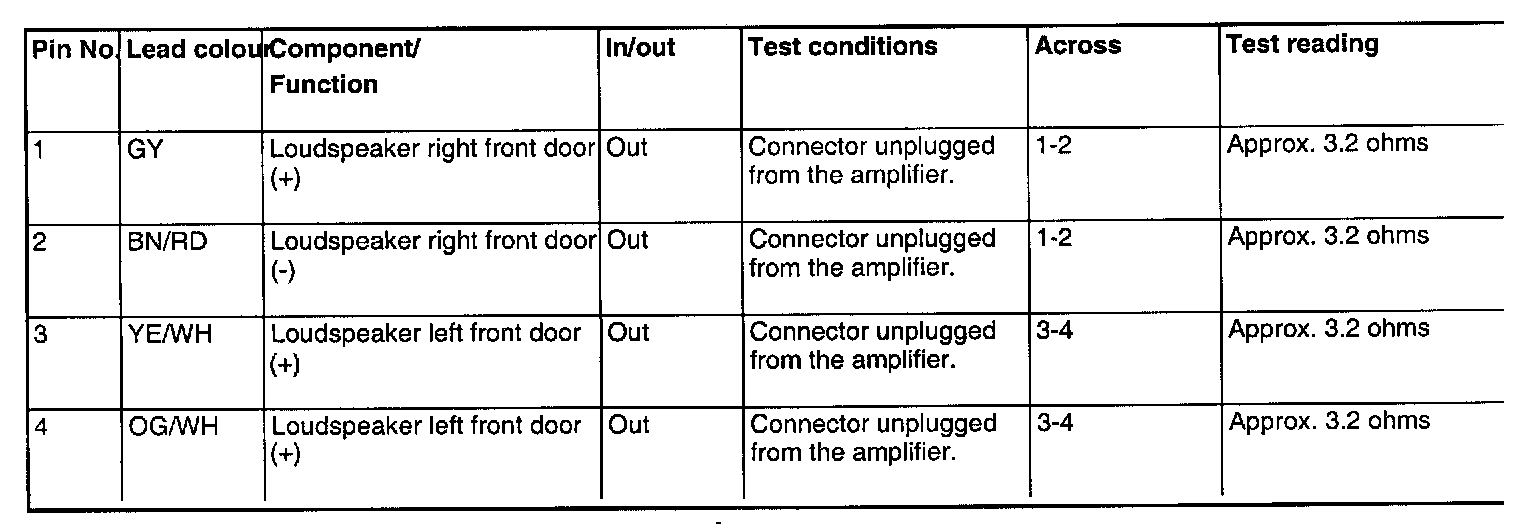

4-pin Connector (loudspeaker):
Pin No 1 - 4:

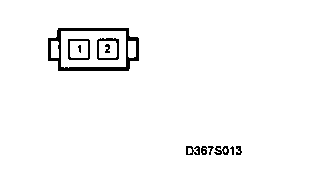

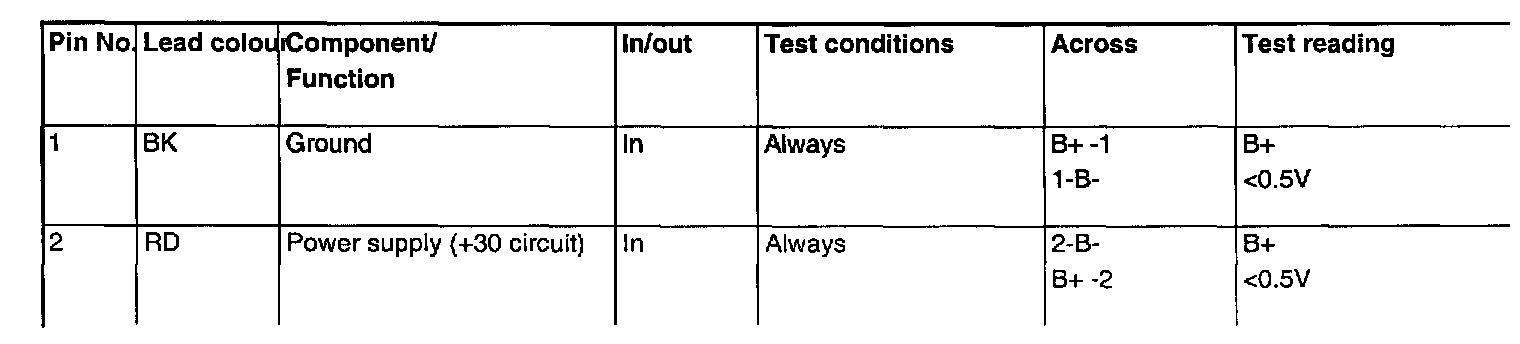

2-pin Connector (power Supply):
Pin No 1 - 2:
