Generator 130A

Generator 130A

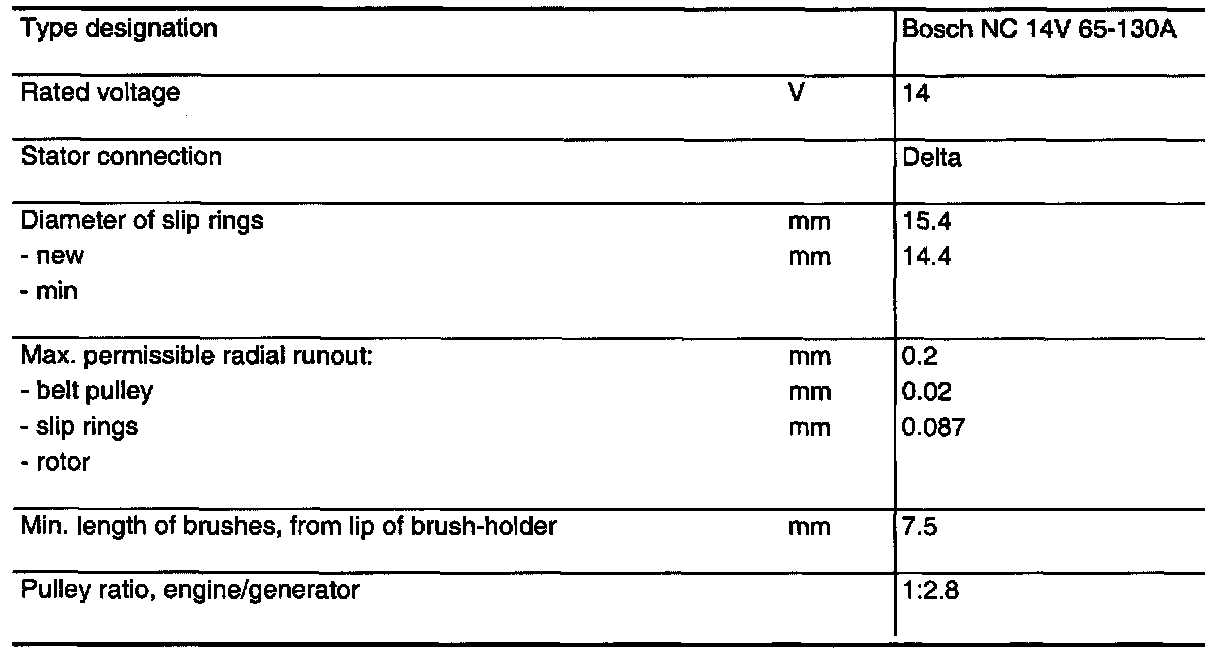

Generator 130A:

Rated Voltage 14V

Stator Connection Delta

Slip Ring Diameter:
New 15.4mm
Minimum 14.4mm

Maximum Permissible Radial Runout
Belt Pulley 0.2mm
Slip Rings 0.02mm
Rotor 0.087mm

Minimum Length of Brushes, From lip of Brush Holder 7.5mm

Pulley Ratio, Engine/Generator 1:2.8

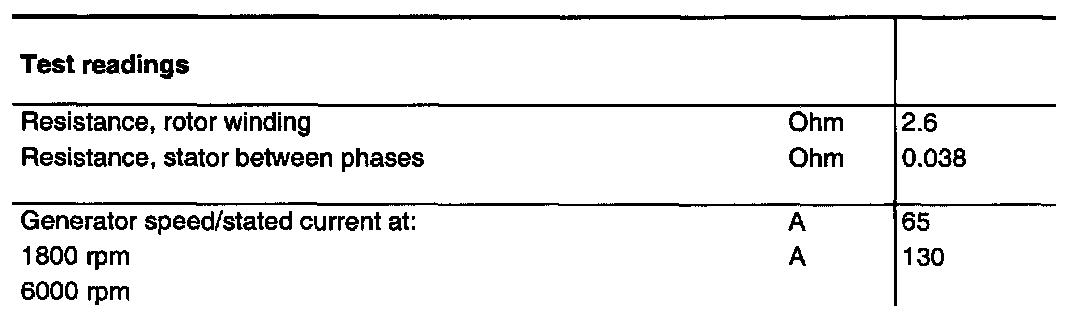

Test Values

Resistance, Rotor Winding (at 25°C) 2.6 Ohm

Resistance, Stator Between Phases (at 25°C) 0.038 Ohm

Current Output at:
1800 RPM 65A
6000 RPM 130A
