Checking Charge Air Control

Checking Charge Air Control

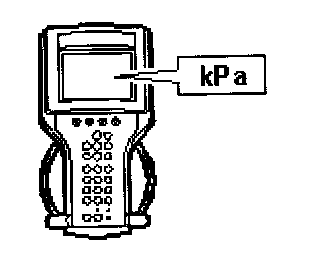

- Read value: Charge Air Absolute Pressure (Trionic).

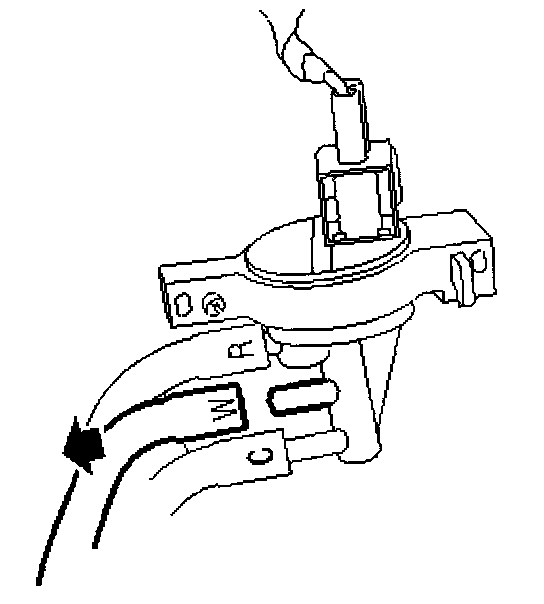

- Detach the hose marked 'W' from the charge air control valve.







- The pressure should exceed 200 kPa when driving with the throttle pedal floored.

Is the function correct?

NO - Checking Mechanical Faults

YES - Checking Air Hoses
