Checking the Pump Relay Output

Checking The Pump Relay Output

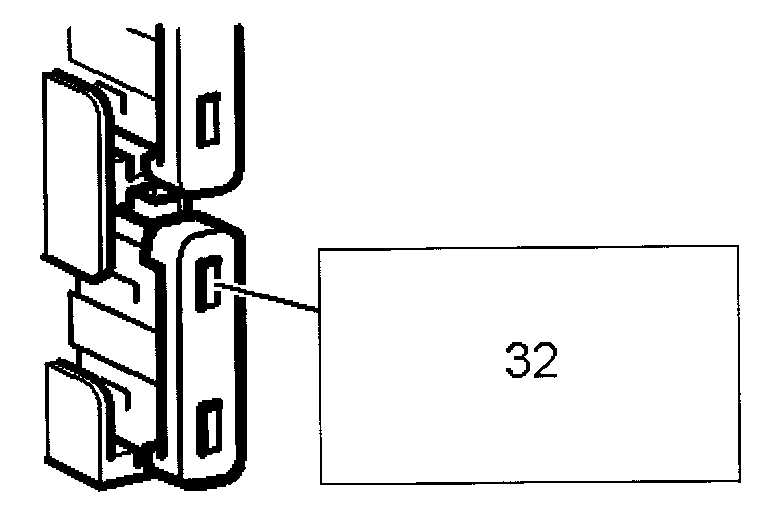

- Remove component: Fuse 32

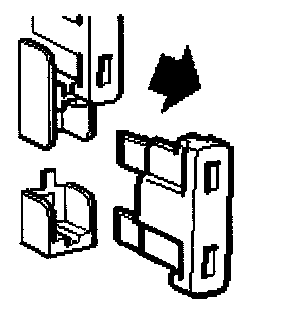

- Change any detective fuse
- Connect test lamp 86 11 857 to the upper pin of the fuse holder and a good grounding point.







- Turn the ignition switch to the OFF position.







- Turn the ignition switch to the ON position.

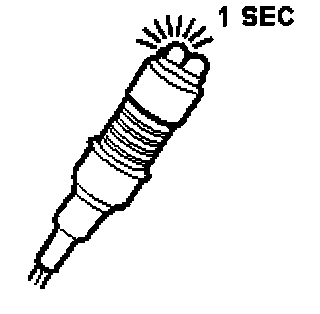

- The test lamp should light for 1 second.

Is the function correct?

NO - Checking the Operation of the Pump Relay

YES - Check the Lead to the Pump
