Checking the DICE Control Module's Grounding

Checking the DICE Control Module's Grounding

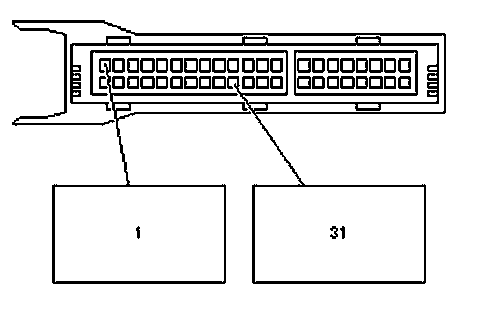

- Connect test lamp 86 11 857 between female connector pin 1 and pin 31.







- The test lamp should light.

Checking the wiring harness.
Jiggle the leads and in-line connectors at several places and in different directions to reveal intermittent breaks and short circuits in the wiring harness. Observe the multimeter, test lamp or diagnostic tool while doing this.

Is the function correct?

NO - Rectifying the Lead - II

YES - Final Check
