Checking the Power Supply For the Lamps on the RH Side

Checking the Power Supply For the Lamps on the RH Side

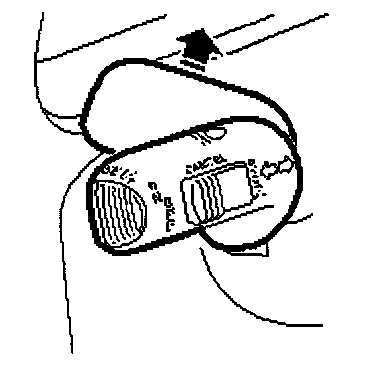

- Turn on the RH direction indicators.

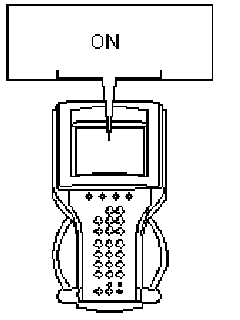

Test value: Right Direction Indicator Switch (DICE)
The reading should be: ON

Checking the wiring harness.
Jiggle the leads and in-line connectors at several places and in different directions to reveal intermittent breaks and short circuits in the wiring harness. Observe the multimeter, test lamp or diagnostic tool while doing this.

Is the function correct?

NO - Checking the Direction Indicator Switch, Right

YES - Internal Control Module Fault
