Checking Pictogram Functionality

Checking Pictogram Functionality

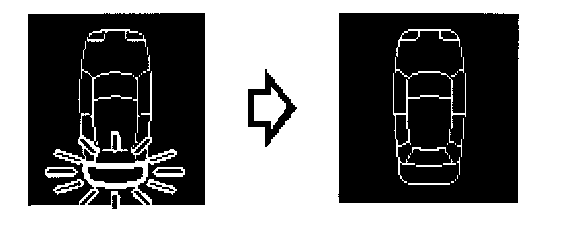

- Open and close the tailgate while checking both its states on the main instrument unit's pictogram.

The pictogram should show open/closed tailgate.

Is the function correct?

NO - Checking the Luggage Compartment Lighting Switch

YES - Checking Whether Current Reaches the Fuse
