Home >> Saab >> 2000 >> 9-3 SE Convertible (9400) L4-2.0L Turbo (B205) HO >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Interior Lighting Malfunctioning >> Roof Lighting Cannot Be Turned On Using The Switch >> Rectifying the Lead - III

Rectifying the Lead - III




Rectifying the Lead

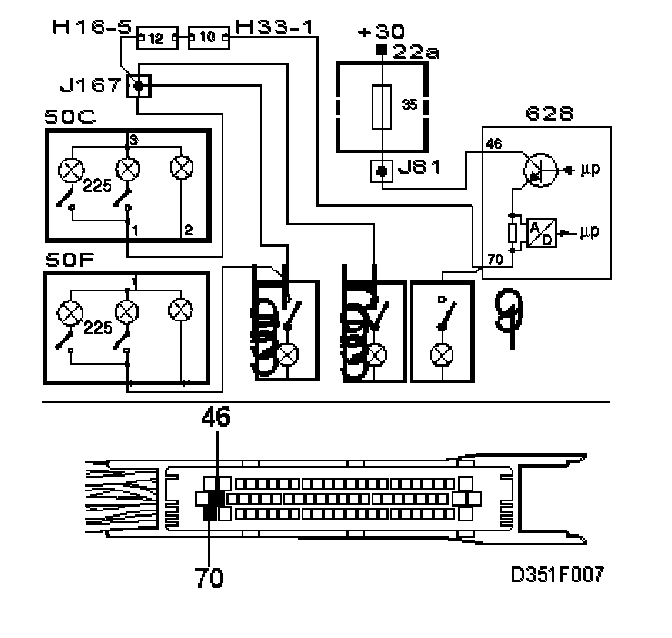

- Repair the lead between DICE pin 70 and crimp J167.

After performing this procedure Final Check
