Checking the RH Lamp's Grounding

Checking the RH Lamp's Grounding

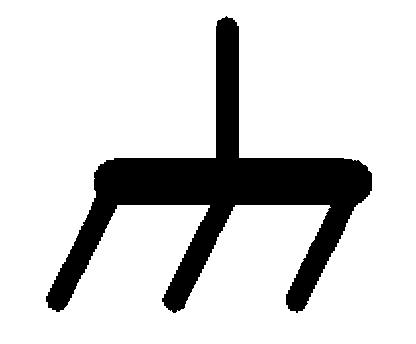

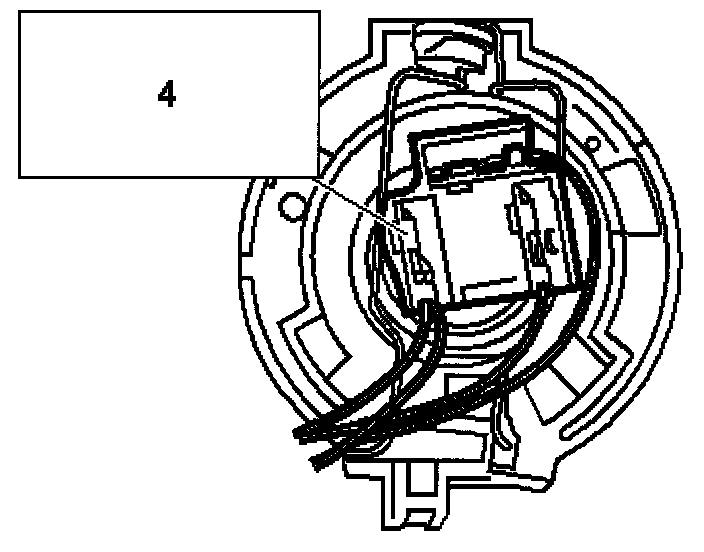

- Connect a jumper lead between pin 4 of the female connector at the back and a good grounding point.

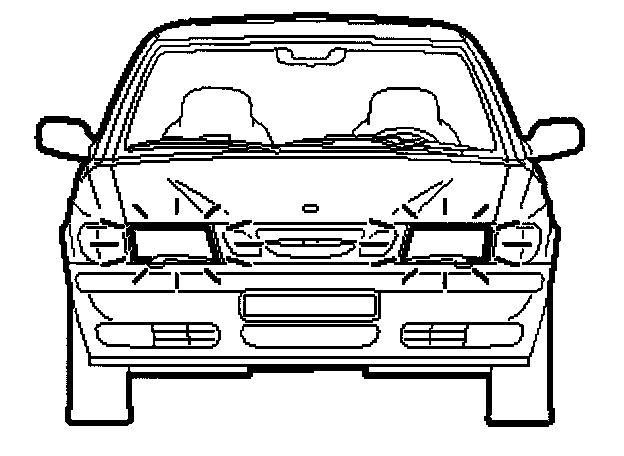

- The lamp should come on

Is the function correct?

NO - Identifying the Fault, RH Side

YES - Rectifying the Lead - I
