Checking the Rear Fog Light Switch

Checking the Rear Fog Light Switch

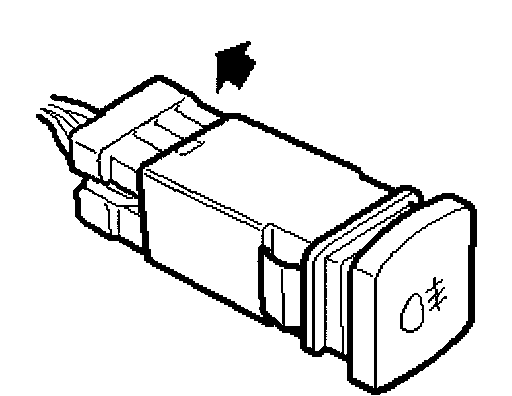

Unplug the connector:
- Switch, rear fog light (161)

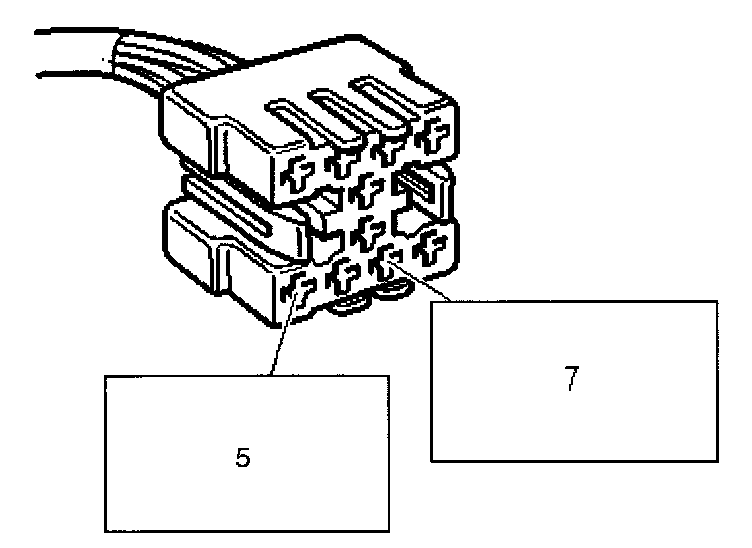

- Connect a jumper lead between pin 5 and pin 7 of the female connector.

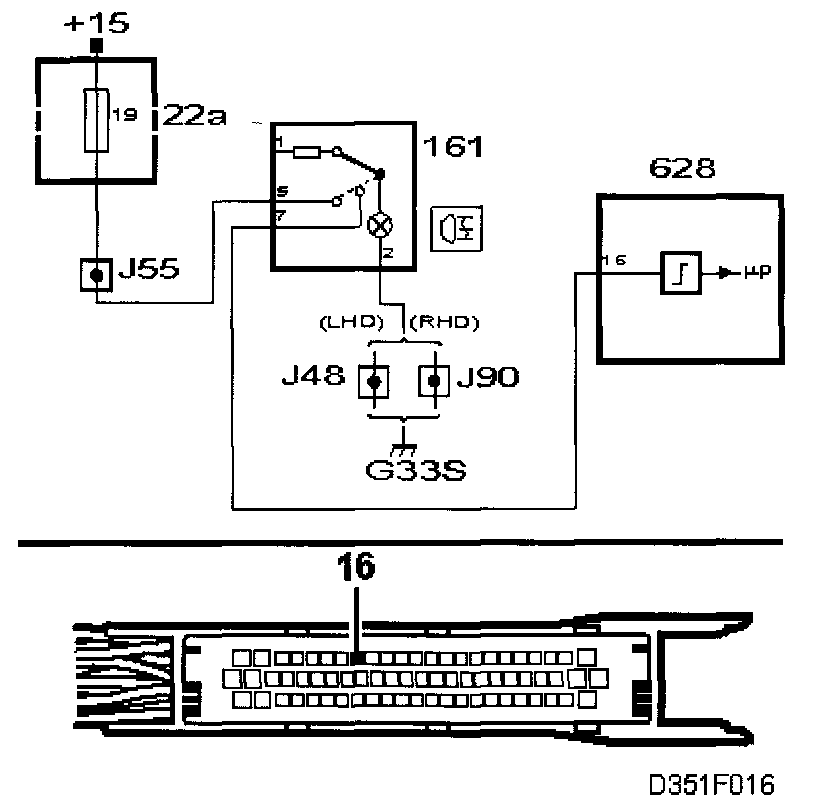

Test value: Rear Fog Light Switch (DICE)
The reading should be: ON

Checking the wiring harness.
Jiggle the leads and in-line connectors at several places and in different directions to reveal intermittent breaks and short circuits in the wiring harness. Observe the multimeter, test lamp or diagnostic tool while doing this.

Is the function correct?

NO - Checking the Switch's Power Supply

YES - Changing Components
