Checking the Gear Selector Position Sensor's Power Supply

Checking the Gear Selector Position Sensor's Power Supply

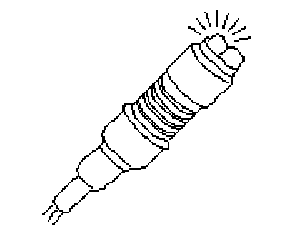

- Change the bulbs and inspect the lampholders.

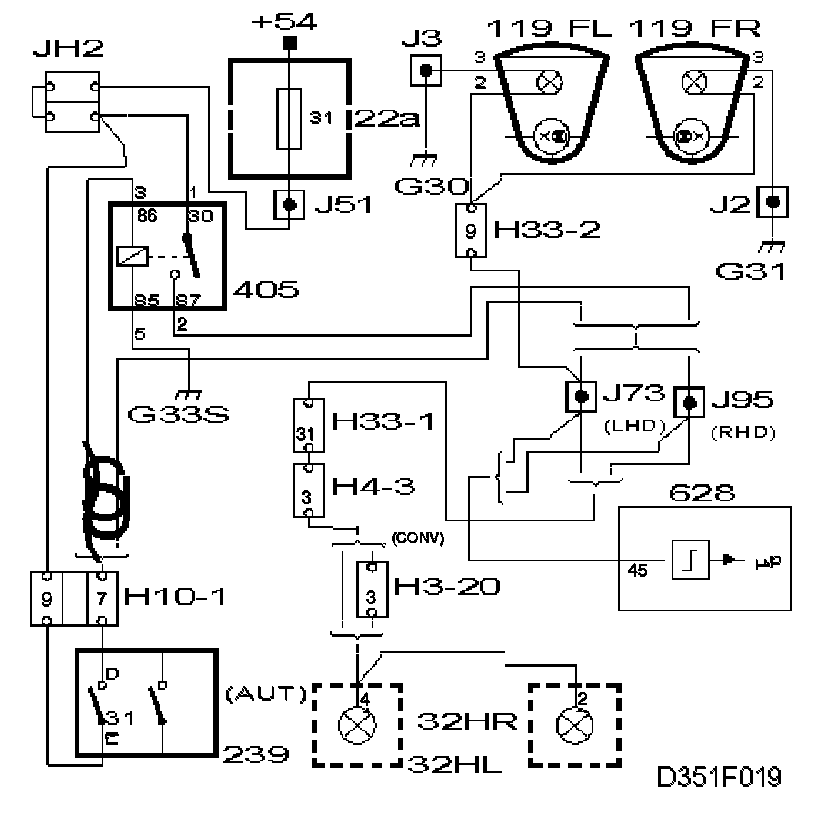

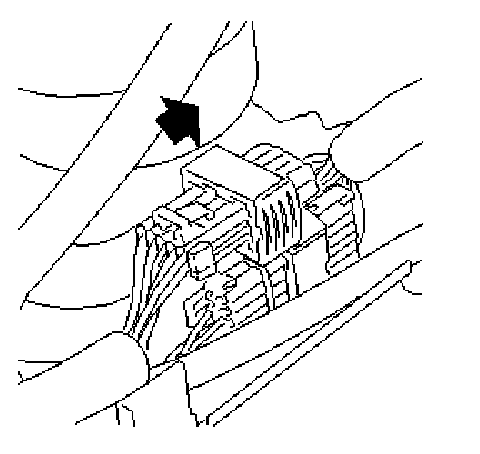

Unplug the connector:
- H10-1






















- Turn the ignition switch to the ON position.

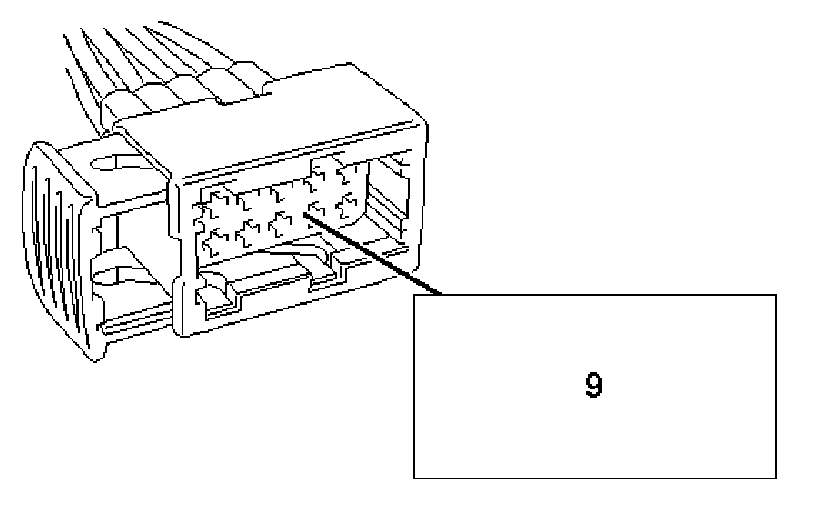

- Connect a test lamp to pin 9 of the female connector and a grounding point.







- The test lamp should light.

Checking the wiring harness.
Jiggle the leads and in-line connectors at several places and in different directions to reveal intermittent breaks and short circuits in the wiring harness. Observe the multimeter, test lamp or diagnostic tool while doing this.

Is the function correct?

NO - Rectifying the Lead - I

YES - Checking the Adjustment of the Gear Selector Position Sensor
