Checking the Power Supply

Checking the Power Supply







Unplug the connector
- Cabin lighting switch. (53)
- Open a door

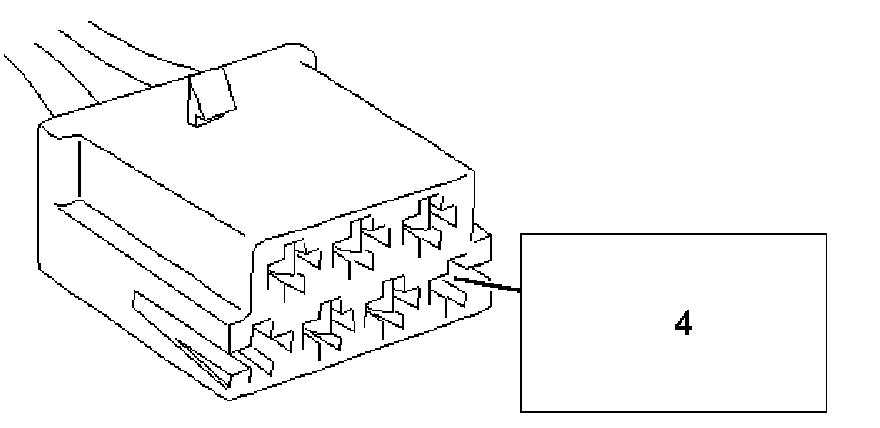

- Connect test lamp 86 11 857 to pin 4 of the female connector and a good grounding point.







- The test lamp should light


Is the function correct?

NO - Rectifying the Lead

YES - Changing Components
