Rectifying the Lead - II




Rectifying the Lead

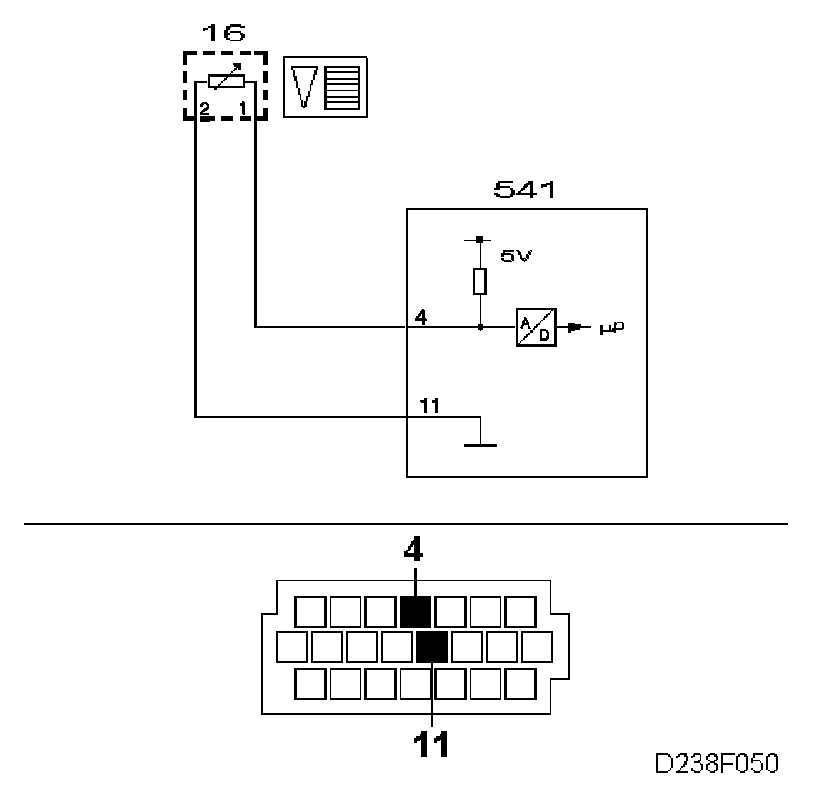

- Rectify the open circuit in the lead between pin 1 on the female connector and pin 4 on the SID unit.

After performing this procedure Final Check
