Checking the Button Lighting

Checking the Button Lighting

















- Turn the ignition switch to the ON position.

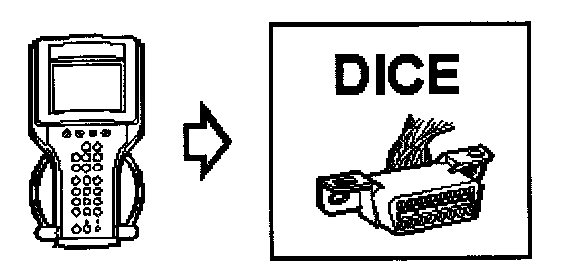

- Contact DICE.

Activate: Rheostat PWM Out (DICE) to 100 %

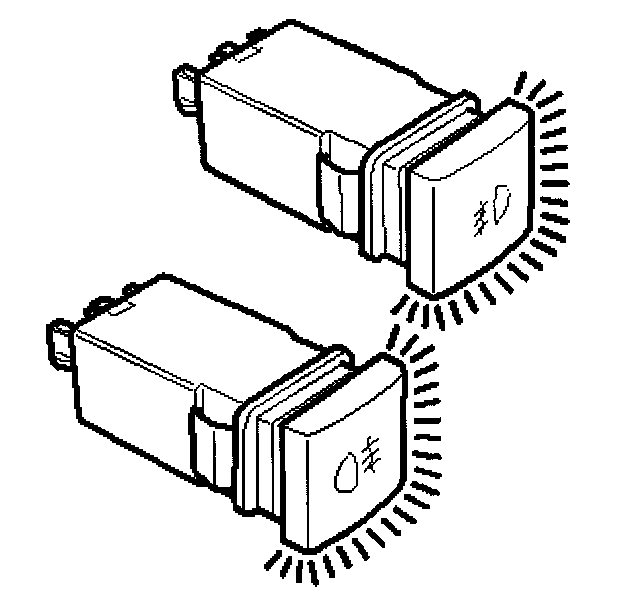

- The button lighting should be on.

Is the function correct?

NO - Rectifying the Lead - I

YES - Checking the Rheostat Value
