Check Control Module Input, C

Check Control Module Input, C

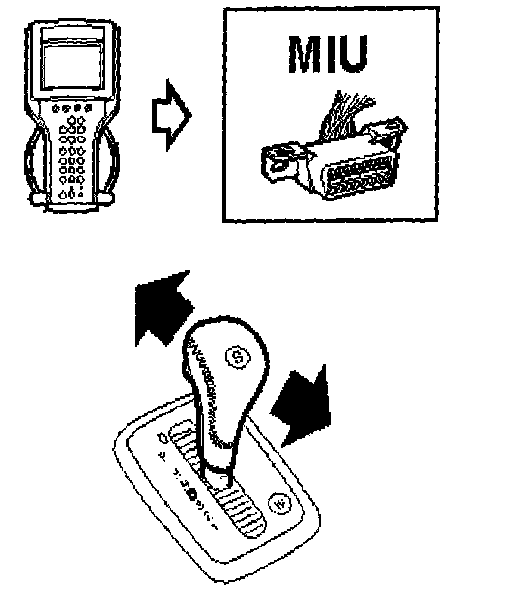

- Read value: Gear Position Switch C (Main instrument unit).
- With selector lever in position:
- P the value should be OFF.
- R the value should be ON.
- N the value should be OFF.
- D the value should be ON.
- 3 the value should be ON.
- 2 the value should be ON.
- 1 the value should be OFF.

Is the function correct?

NO - Rectifying the Lead - III

YES - Check Control Module Input, PA
