Tech 2 Menu Structure, Value, Activate, Immobil., Adjust, Prog.

Tech 2 menu structure
Diagnostic trouble codes (DTC)
Read Values / Activate
Adjustment
Programming
Snapshot
System Information

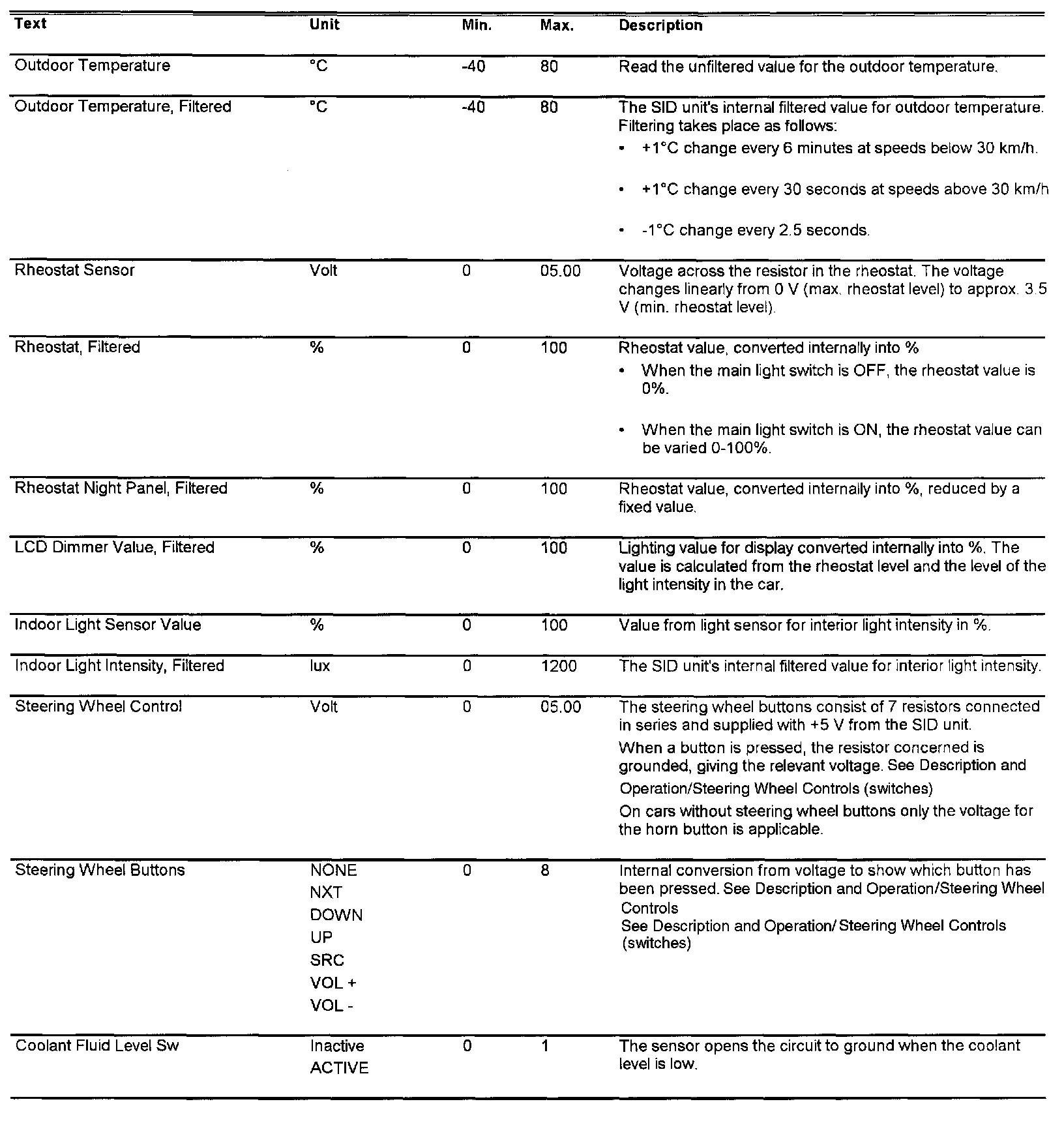

Menu "Read Values"

Menu "Read Values", Part 1:

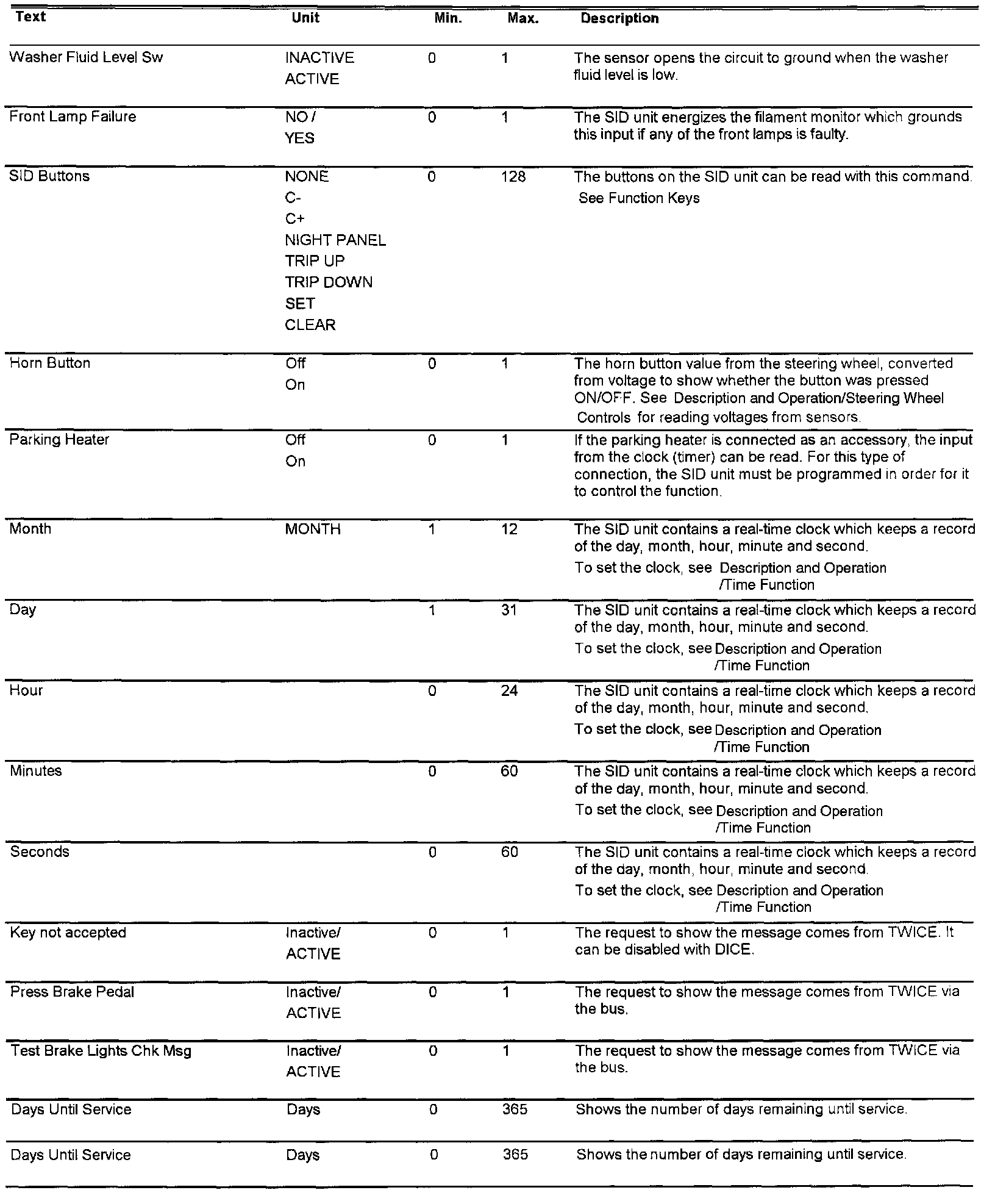

Menu "Read Values", Part 2:

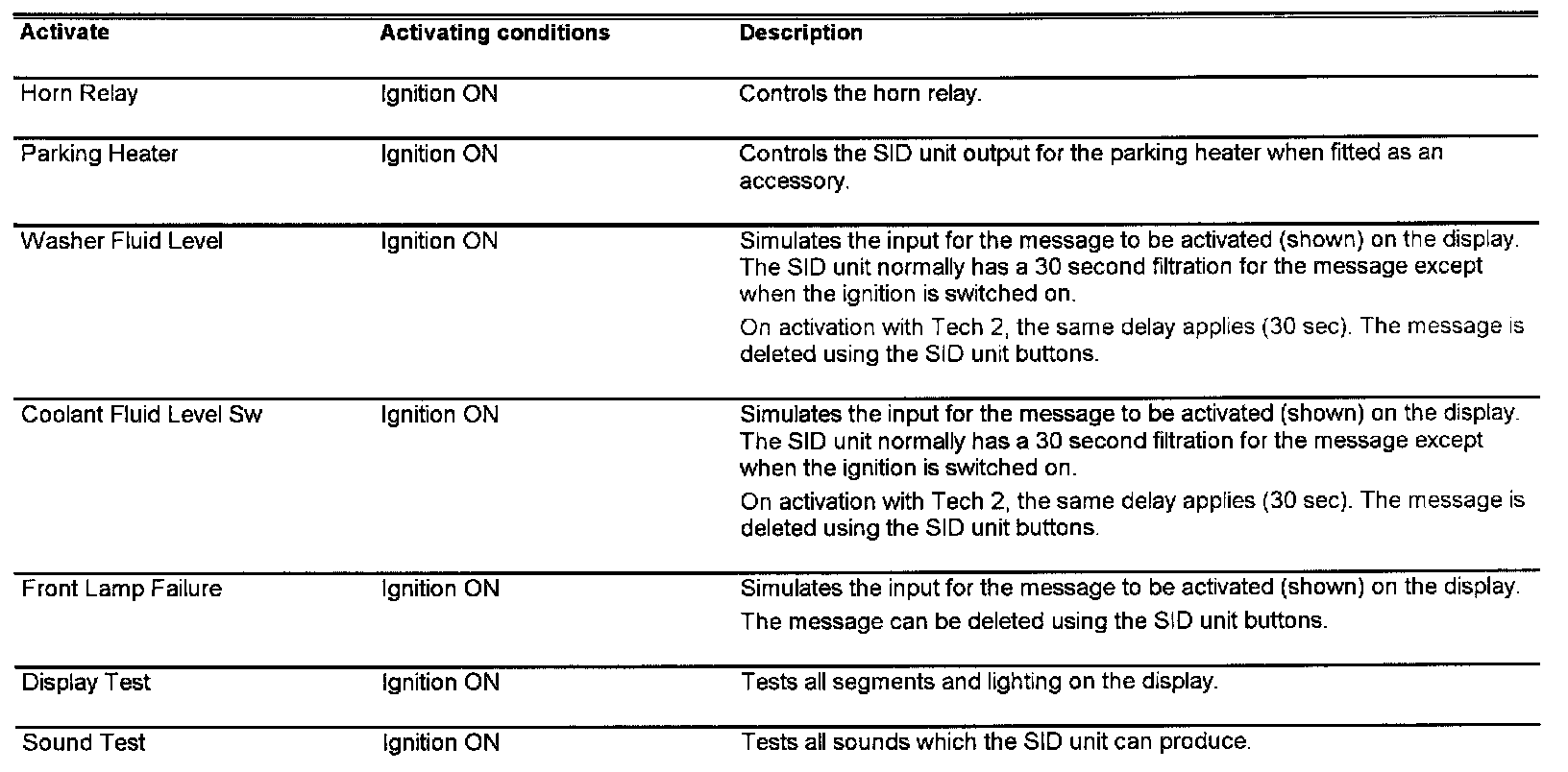

Menu "Activate"

Menu "Activate":

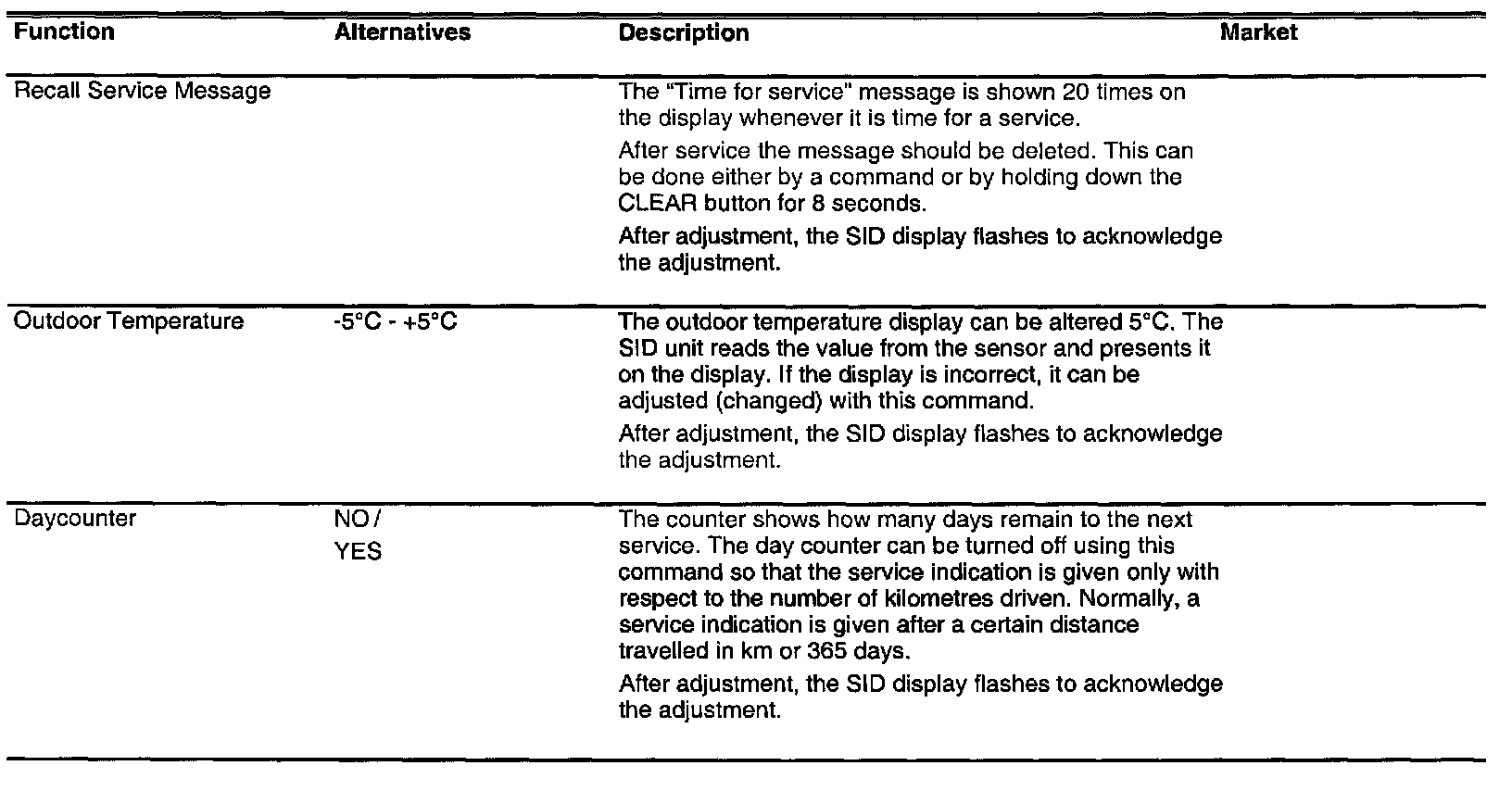

Menu "Adjustment"

Menu "Adjustment":

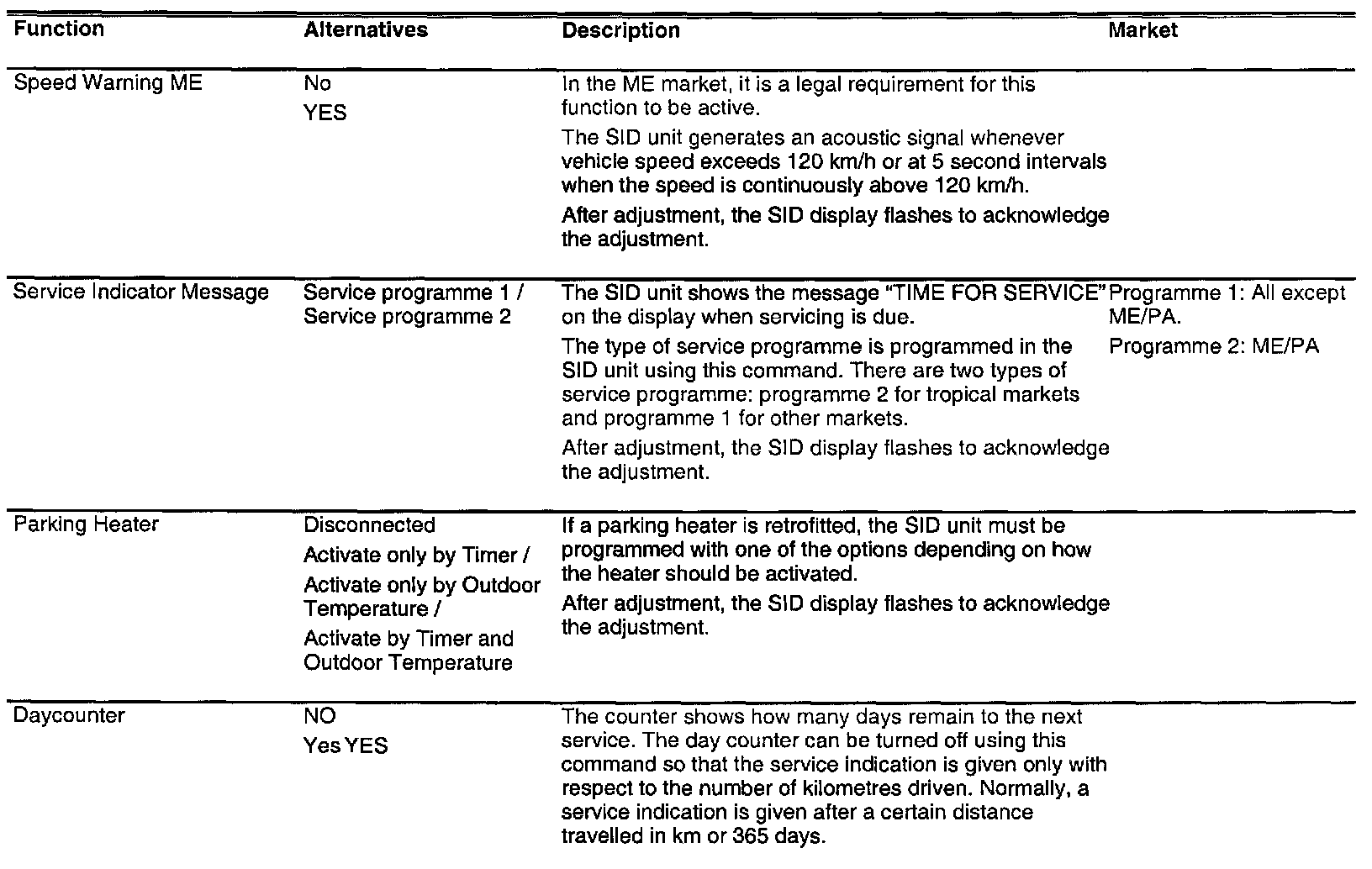

Menu "Programming"

Menu "Programming":

Menu "System Information"

Text Function
SAAB Part Number: Displays the SAAB pan number for the control module.
Hardware Version Number: Shows the hardware version for the control module.
Software Version Number: Shows the software version for the control module.
