Radiator Fan System, Petrol Engine (2-Speed)

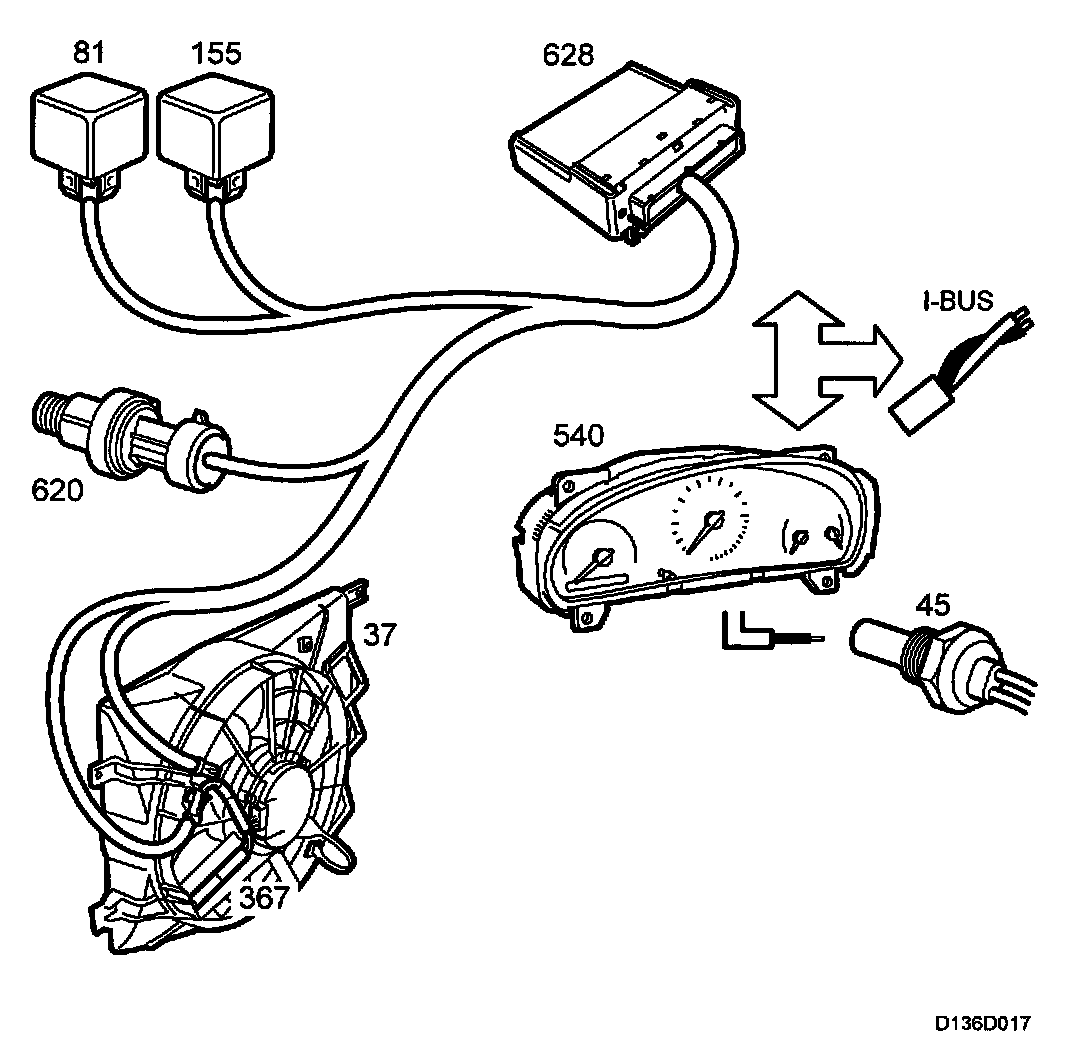

System overview, radiator fan system, petrol engine (2-speed)


- Control module, DICE (628)
- Relay, 2-speed radiator fan, low speed (155)
- Relay, 2-speed radiator fan, high-speed (81)
- Motor, radiator fan (37)
- Resistor, 2-speed radiator fan (367)
- Main instrument unit (540)
- Engine coolant temperature sensor (45) Pressure sensor, A/C (620)
