Radiator Fan System, Petrol Engine (1 Speed)

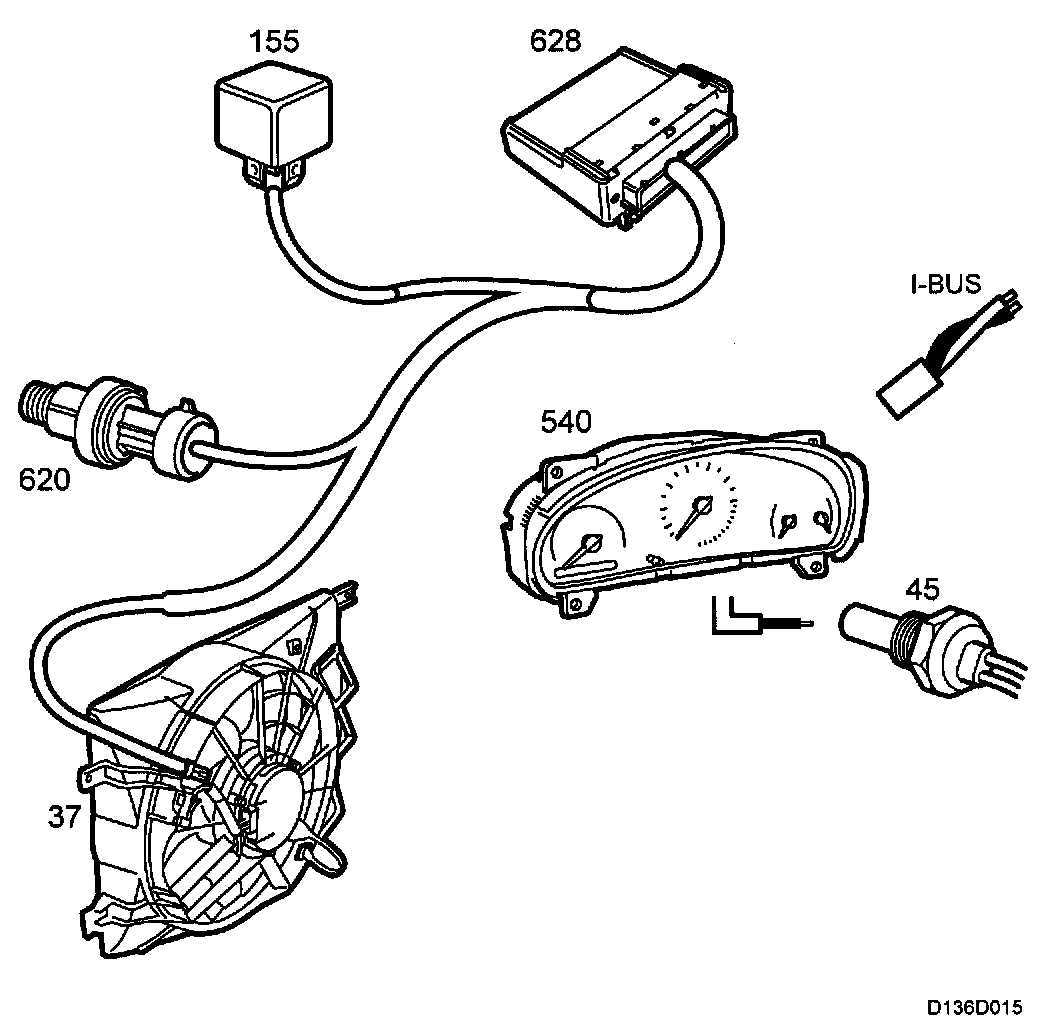

System overview, radiator fan system, petrol engine (1 speed)


- Control module, DICE (628)
- Relay, radiator fan (155)
- Motor, radiator fan (37)
- Main instrument unit (540)
- Engine coolant temperature sensor (45)
- Pressure sensor, A/C (620)
