Procedures

Removing

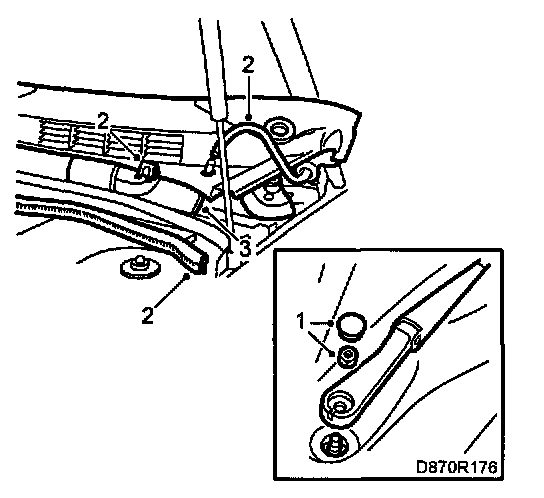

1 Remove the wiper arms.
2 Remove the cover over the bulkhead.
3 Remove the water deflector.

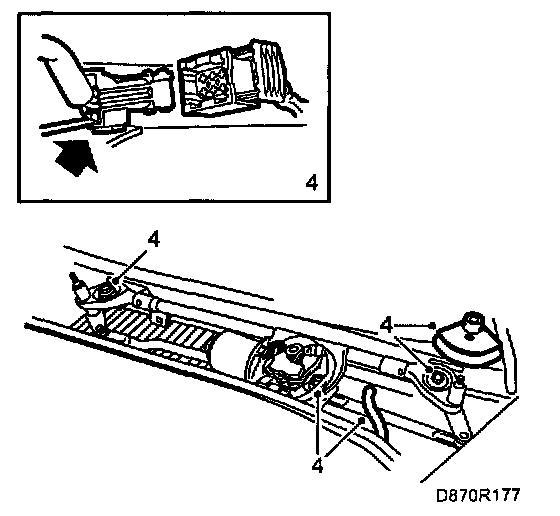

4 Remove the wiper unit.







5 Remove the fresh-air filter.







6 Unplug the ventilation fan electric connector.
7 Remove the fresh-air filter frame by removing the four retaining bolts.

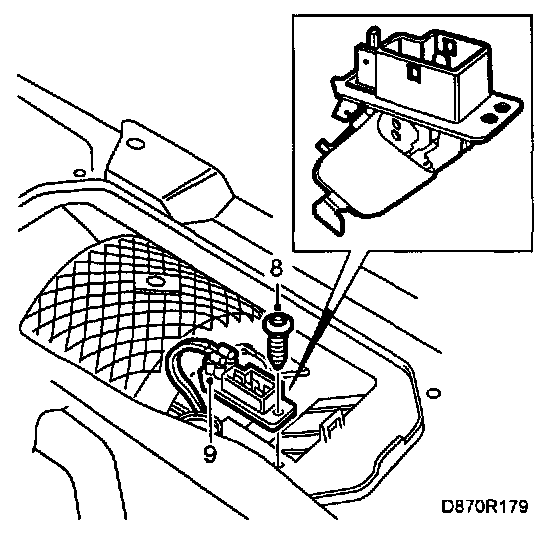

8 Remove the bolt that secures the fan resistor.







9 Unplug the fan resistor electric connections.

Fitting

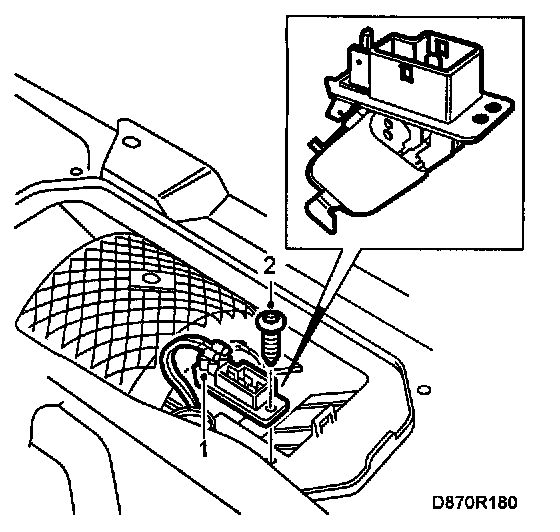

1 Plug in the electric connections for the fan resistor.
2 Fit the fan resistor and tighten the bolt.

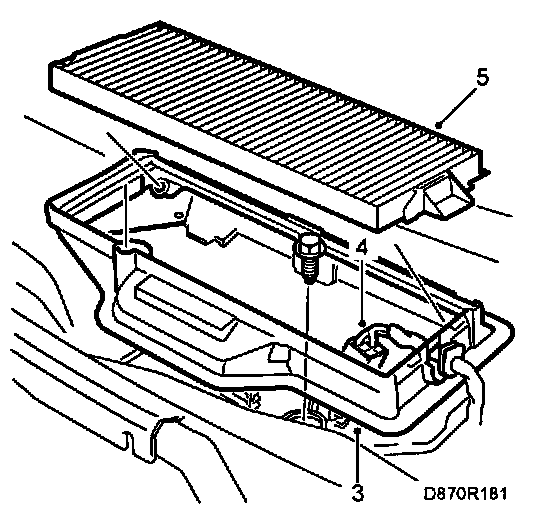

3 Refit the fresh-air filter frame with the four bolts.







4 Plug in the ventilation tan connector.
5 Refit the fresh-air filter.

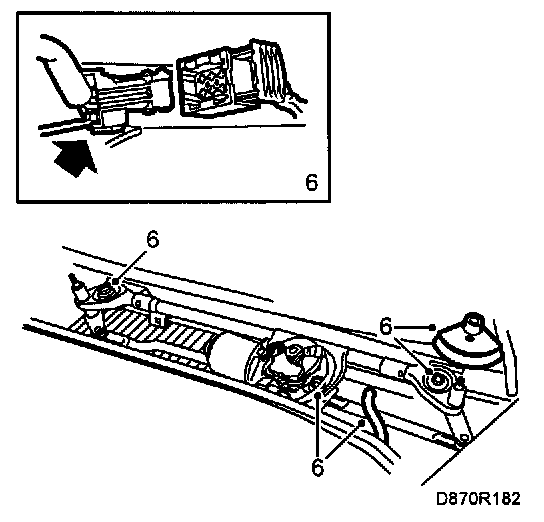

6 Fit the wiper unit.

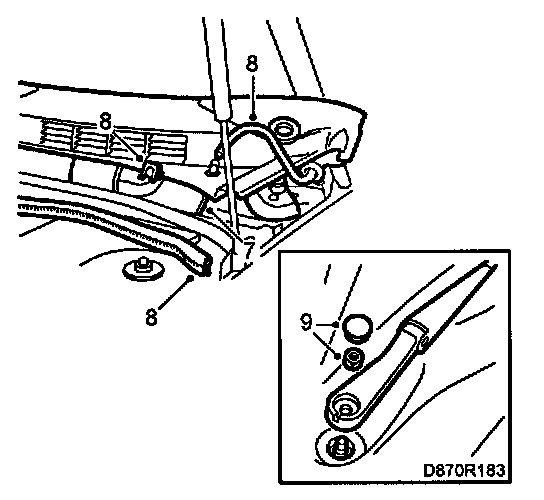

7 Refit the water deflector.







8 Refit the cover over the bulkhead.
9 Refit the wiper arms.
