Home >> Saab >> 2000 >> 9-3 SE Convertible (9400) L4-2.0L Turbo (B205) HO >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> Audio Preparations

Audio Preparations




Audio Preperations:

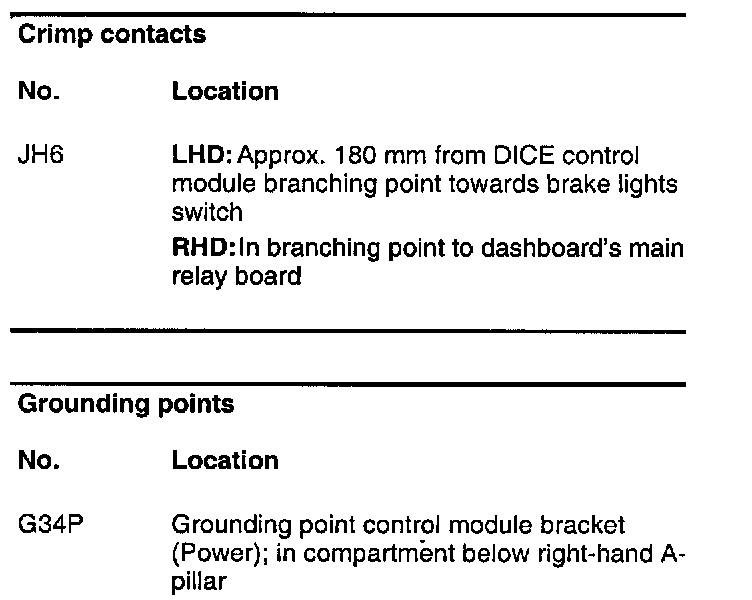

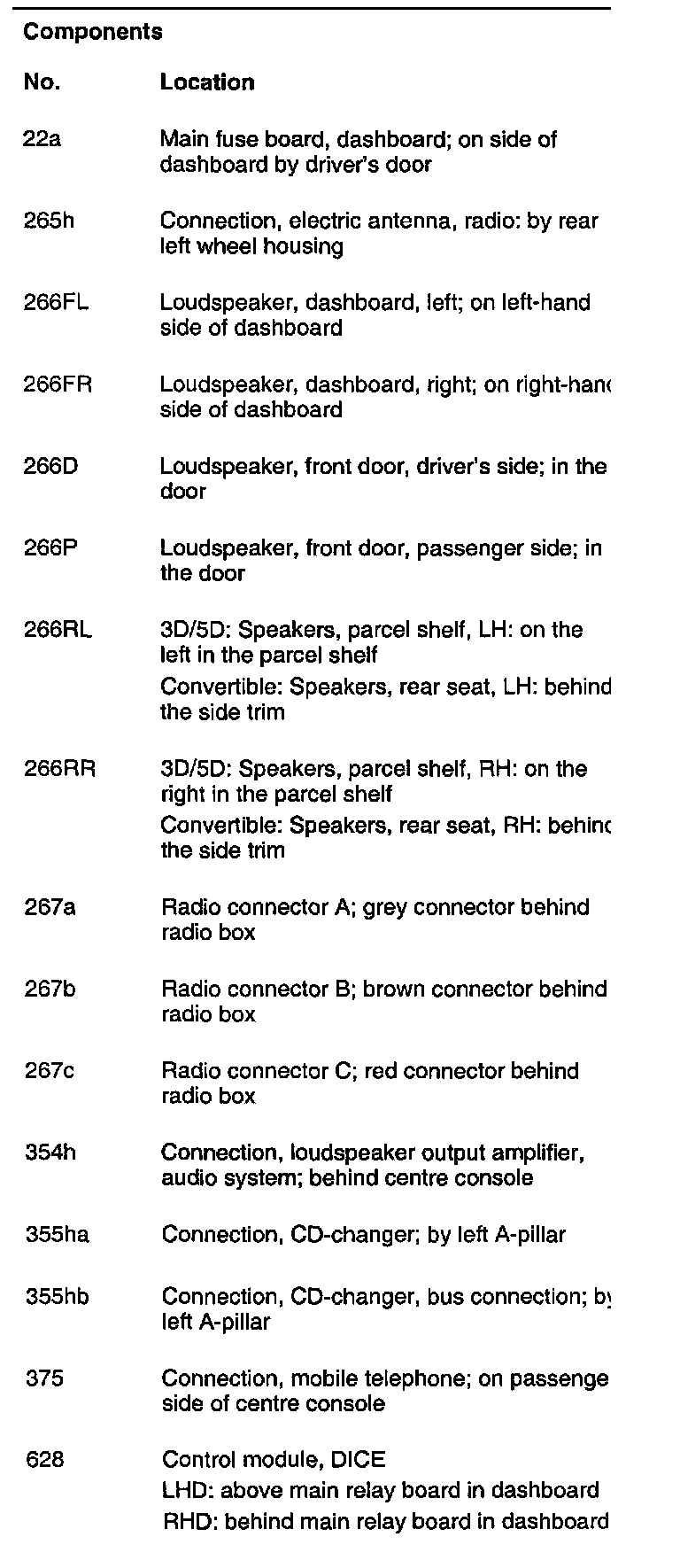

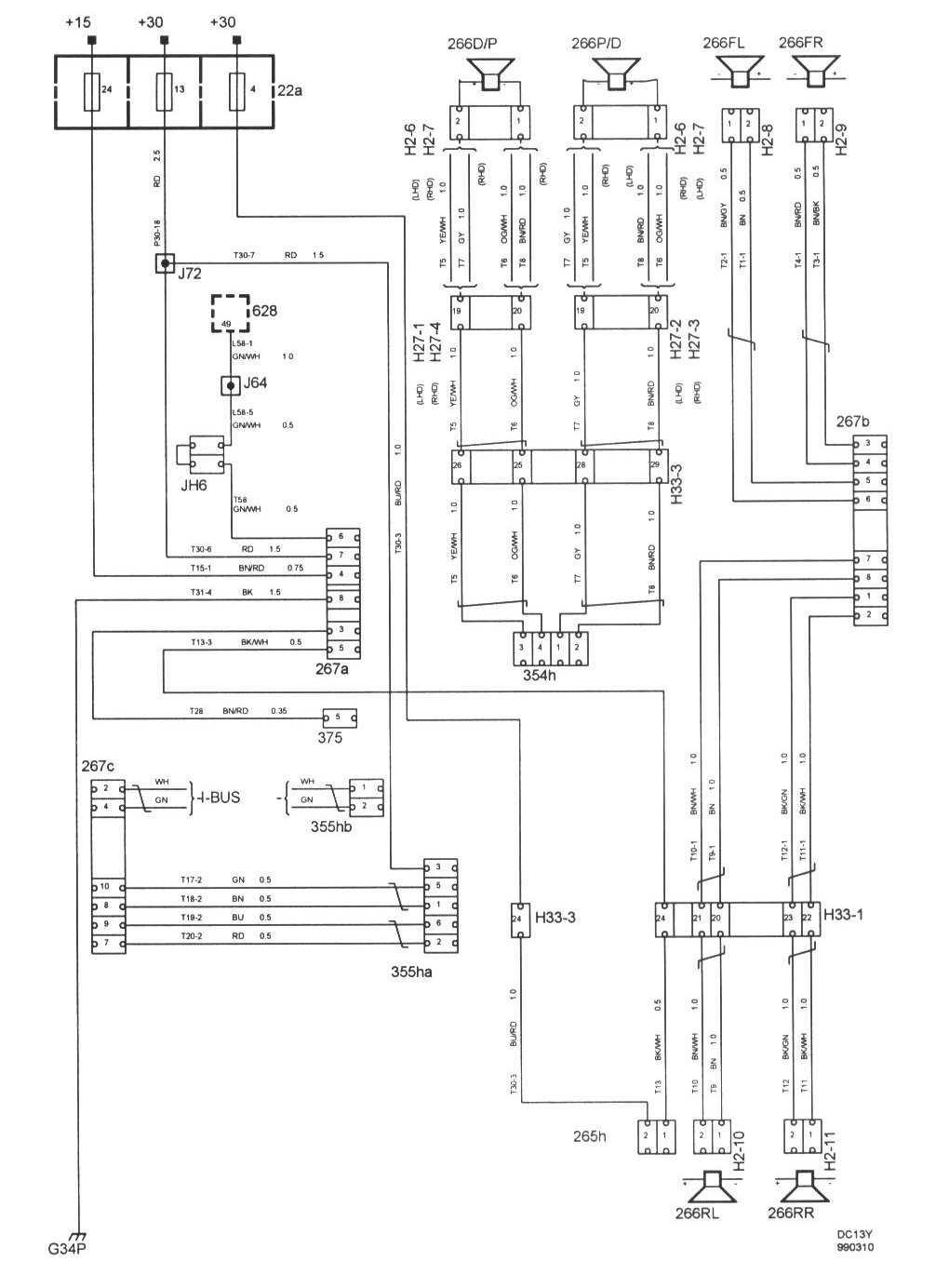

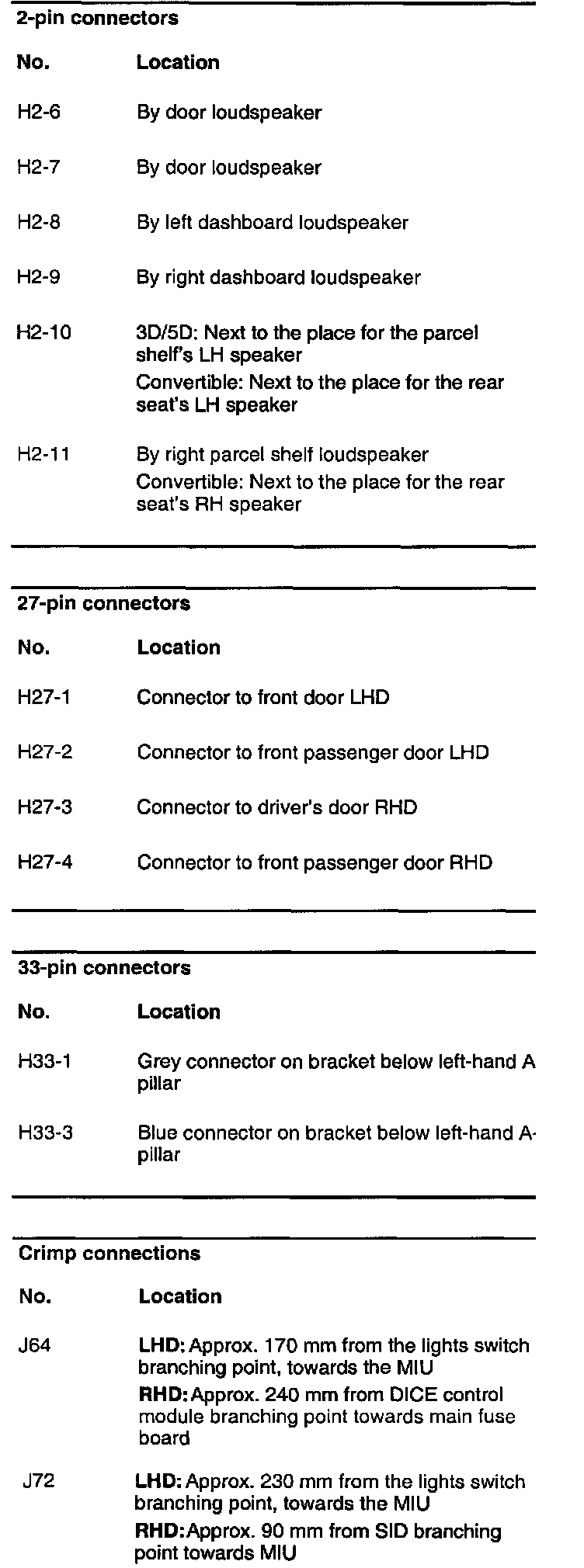

Part 1:







Part 2:







Part 3:
