Bus 3D/5D LHD

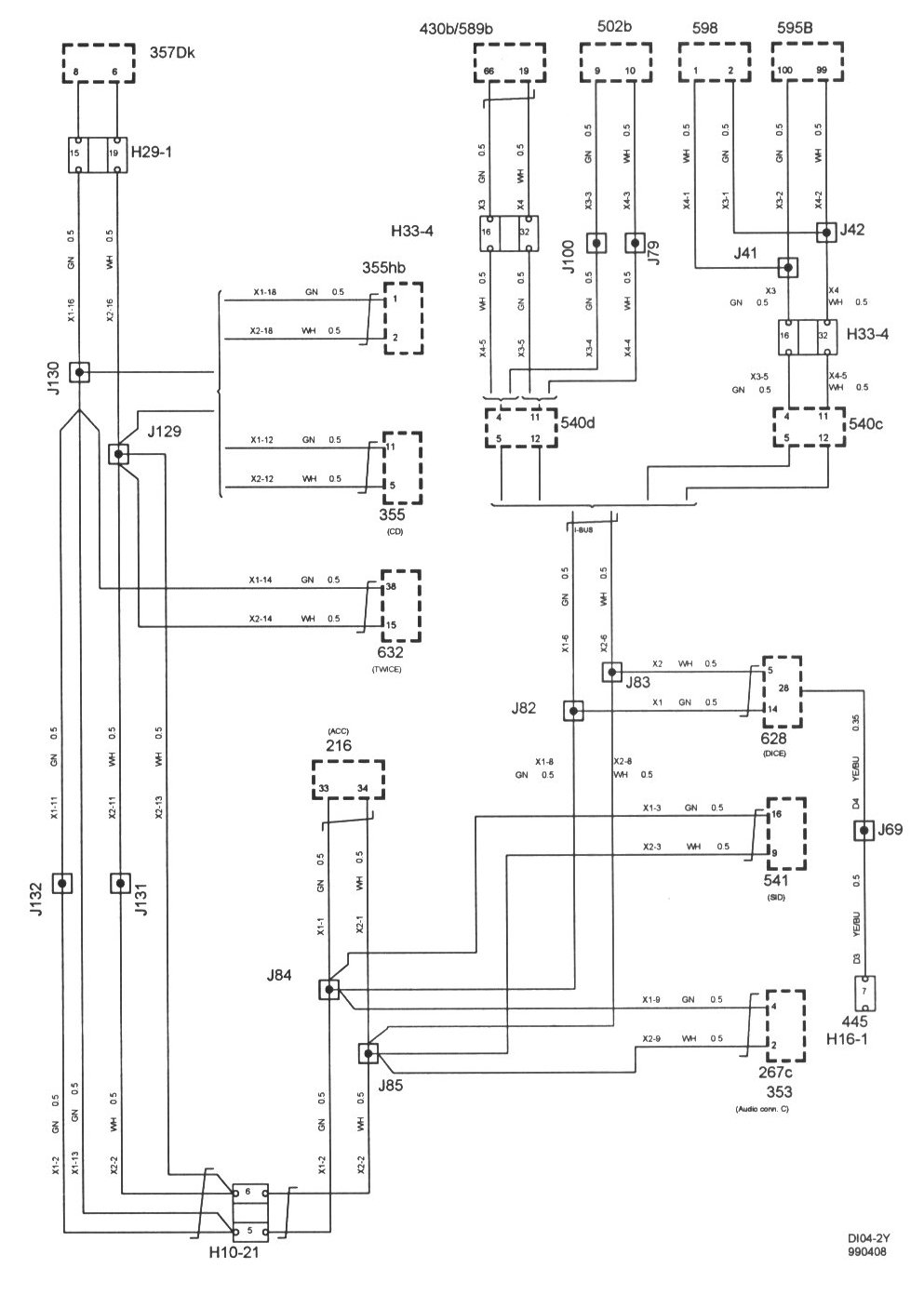

Bus 3D/5D LHD:

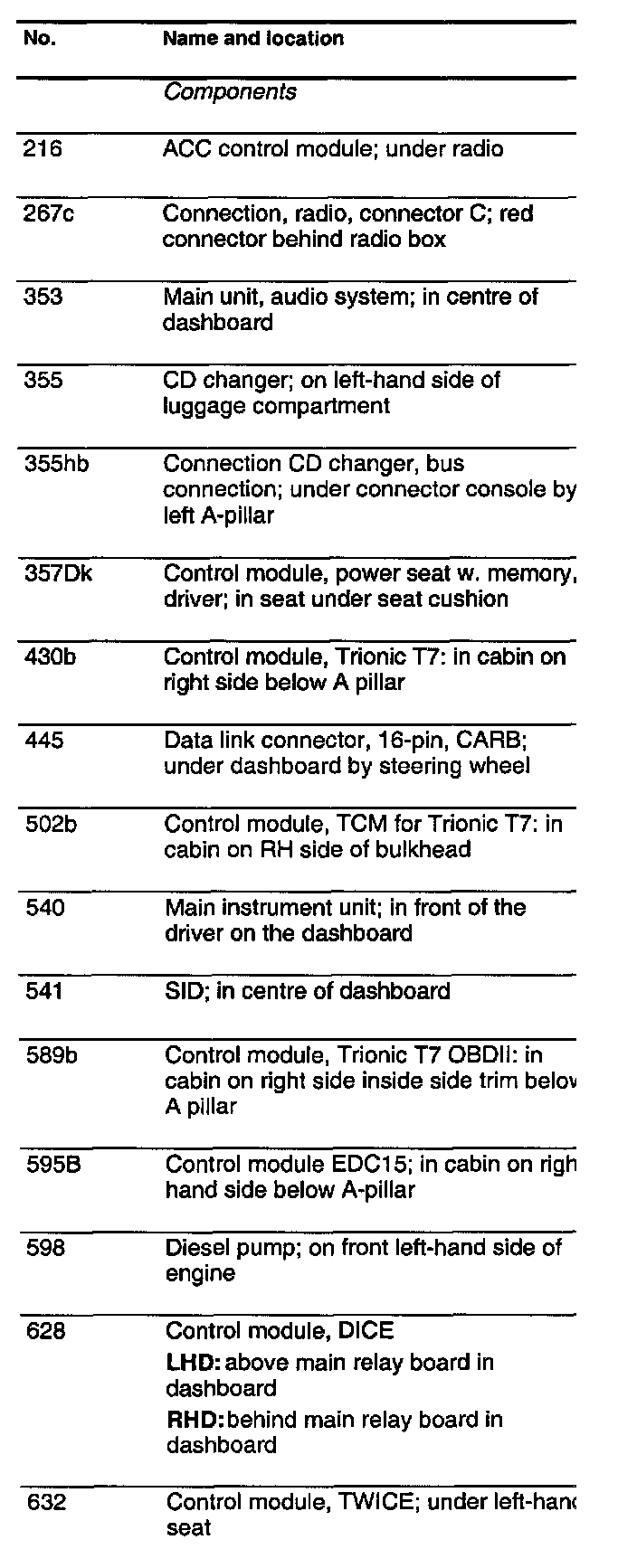

List Of Components, Part 1:







List Of Components, Part 2:

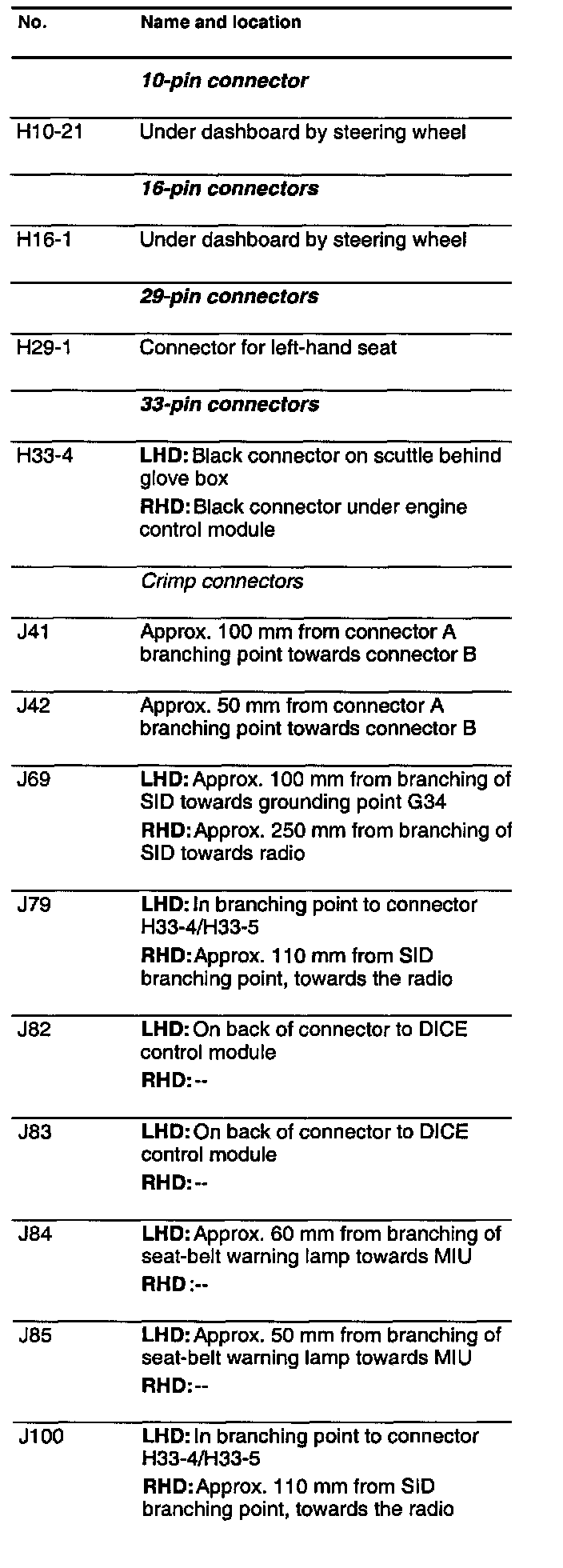

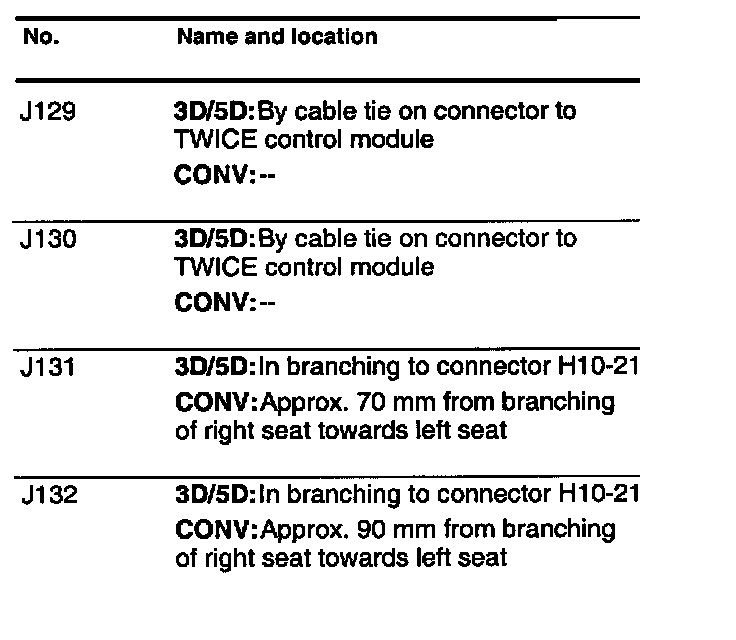

List Of Components, Part 3:
