Main Instrument Unit, Trionic T7

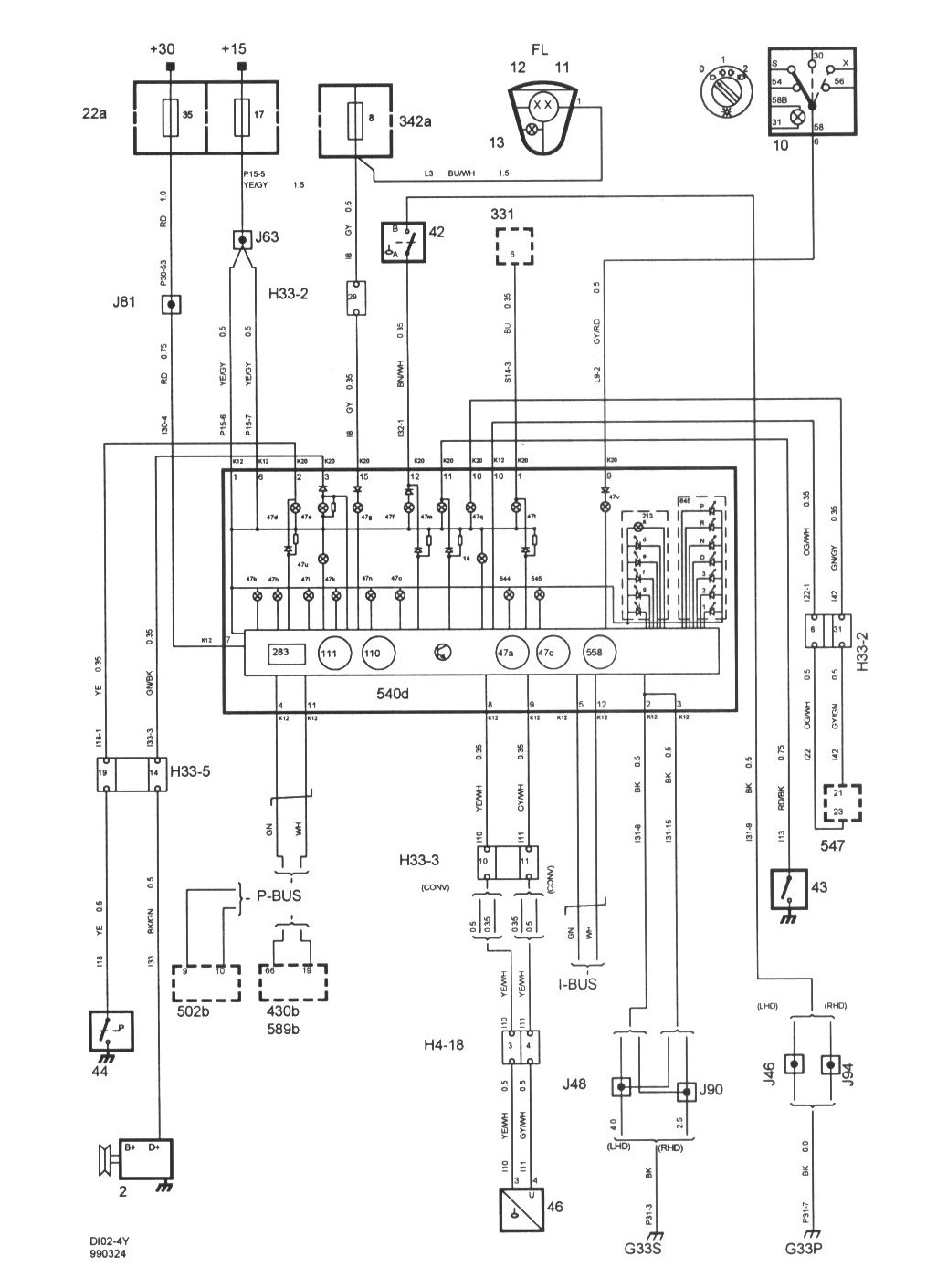

Main Instrument Unit, Trionic T7:

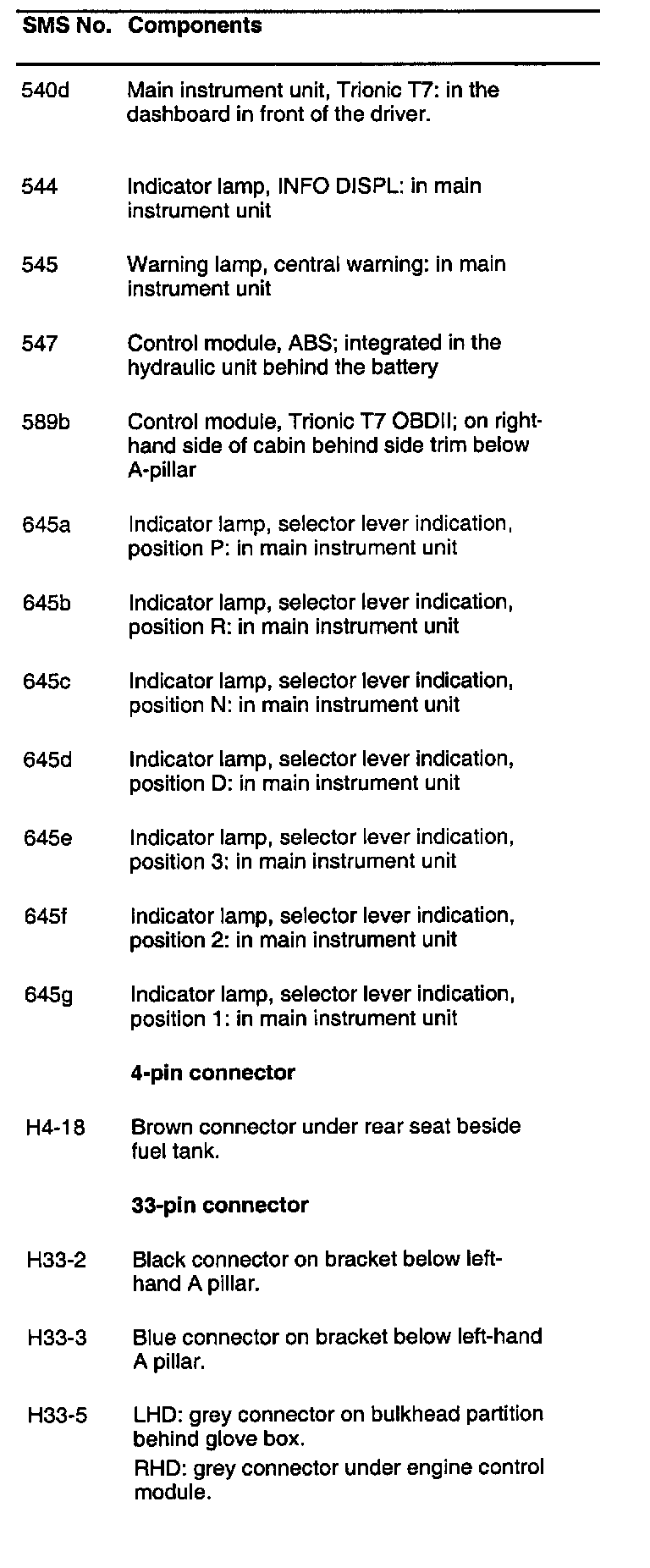

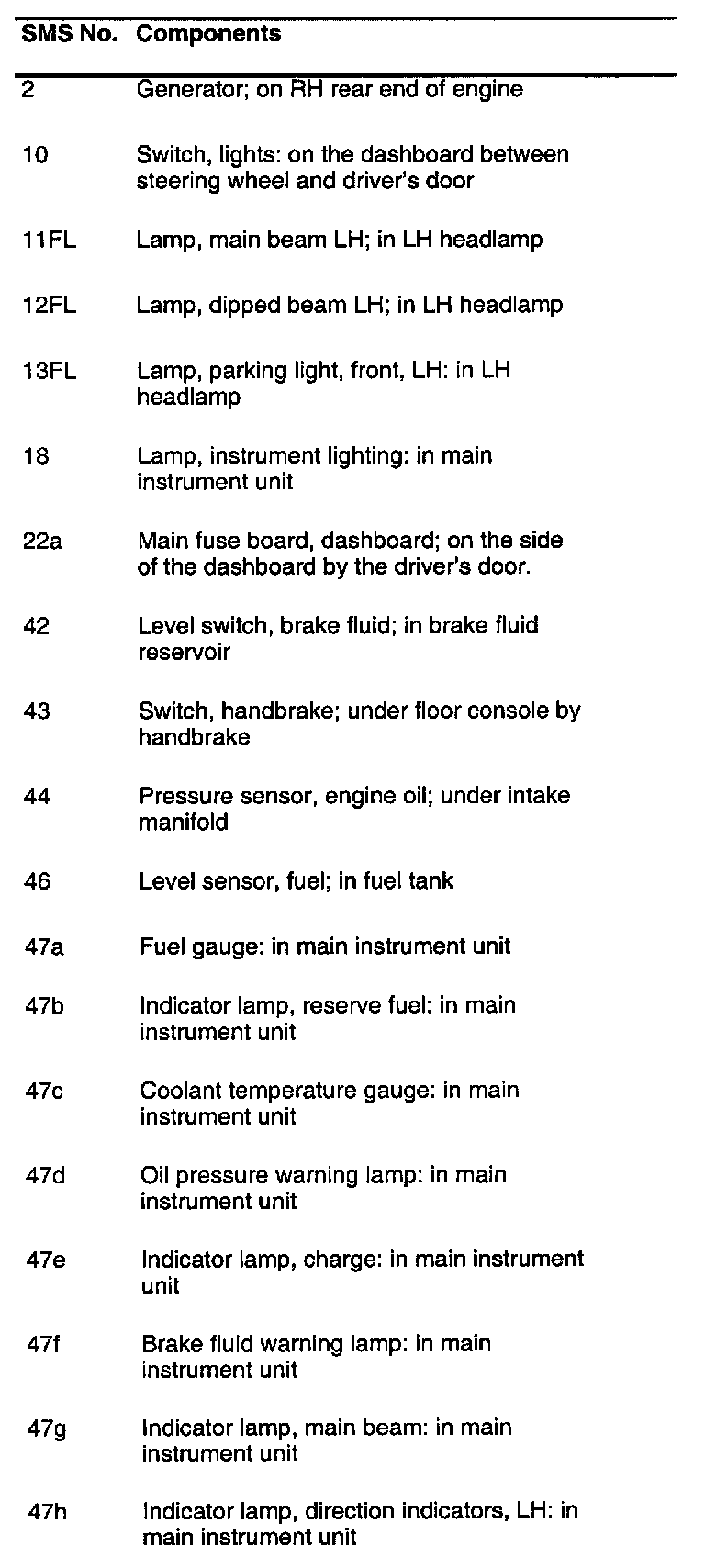

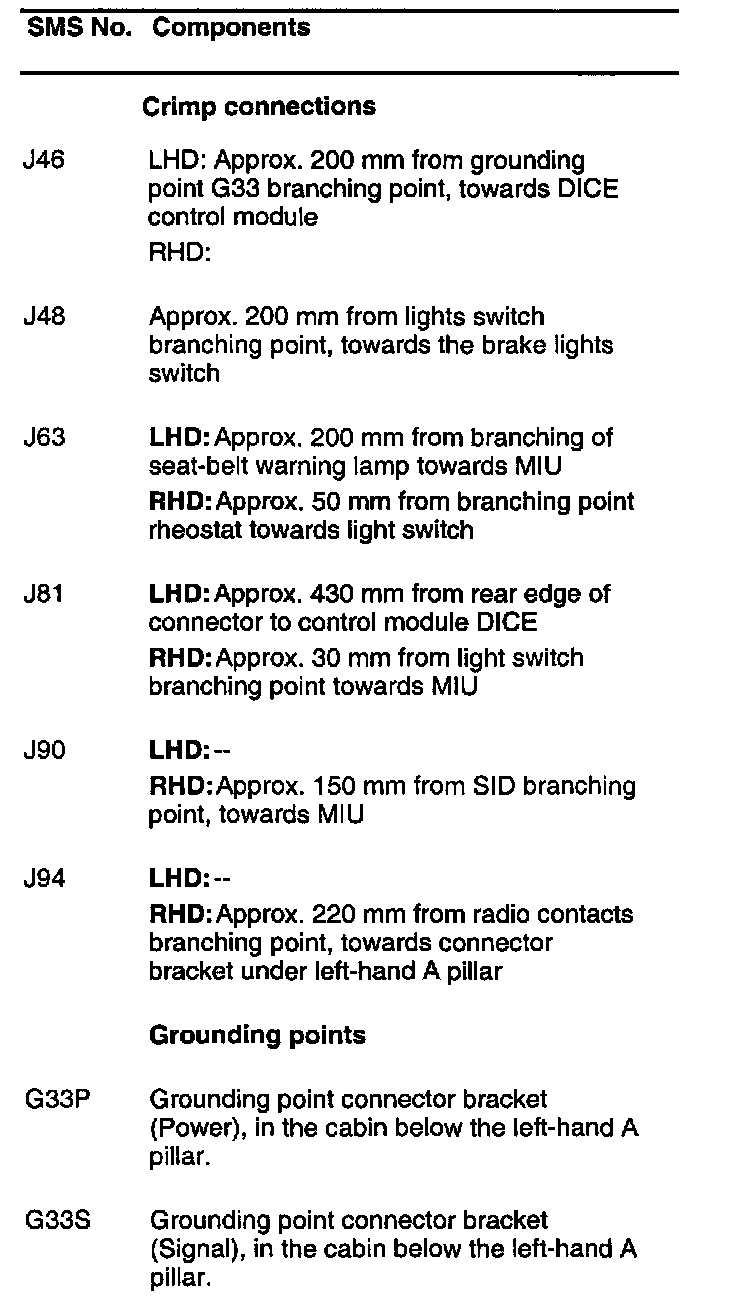

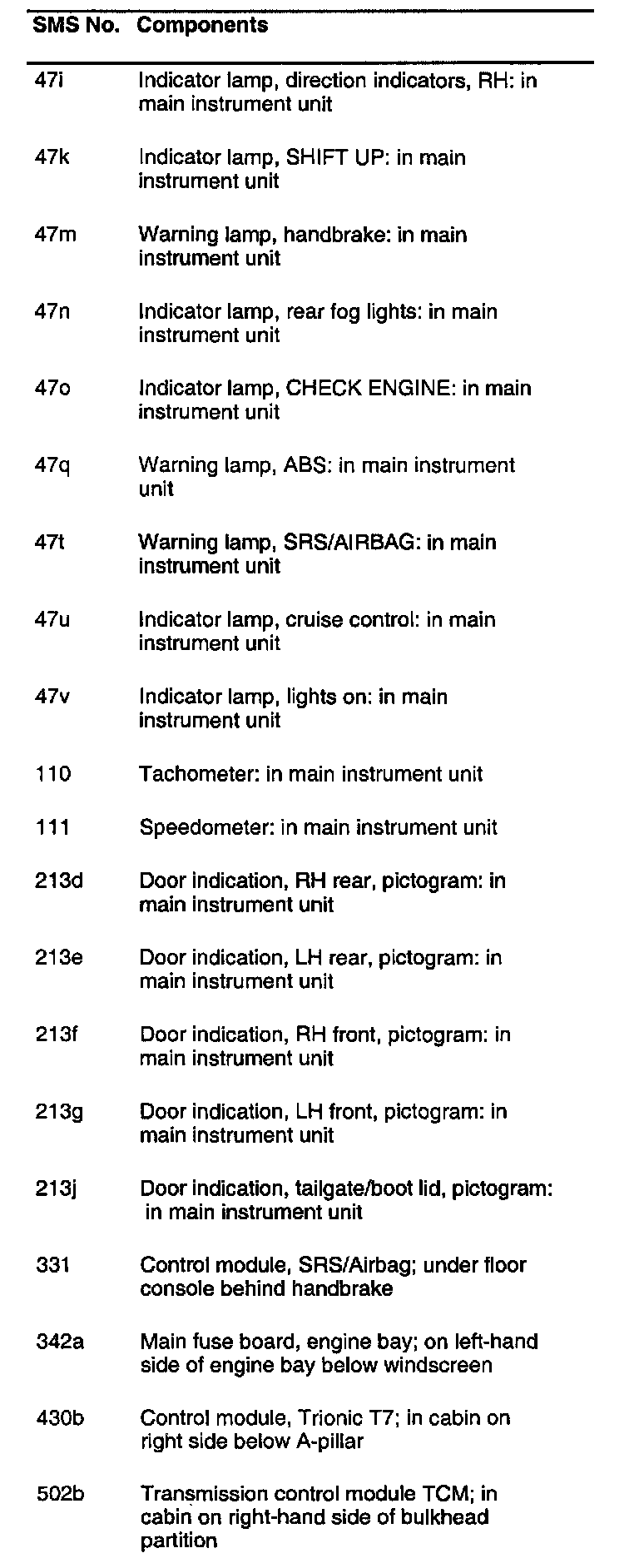

List Of Components, Part 1:






Part 2:






Part 3:






Part 4:
