Antilock Brakes / Traction Control Systems


Anti-lock brakes ABS 5.4

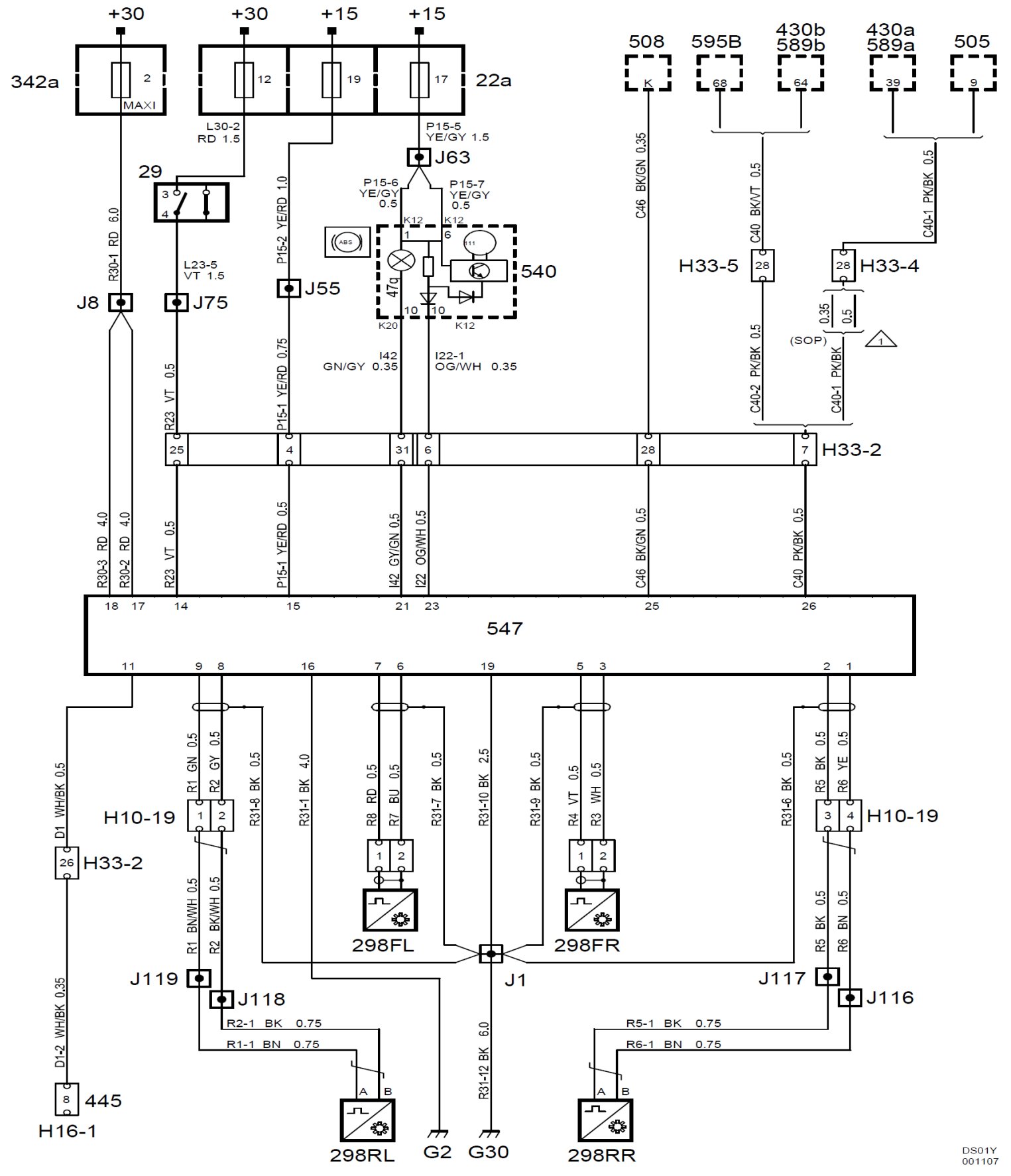

Wiring Diagram

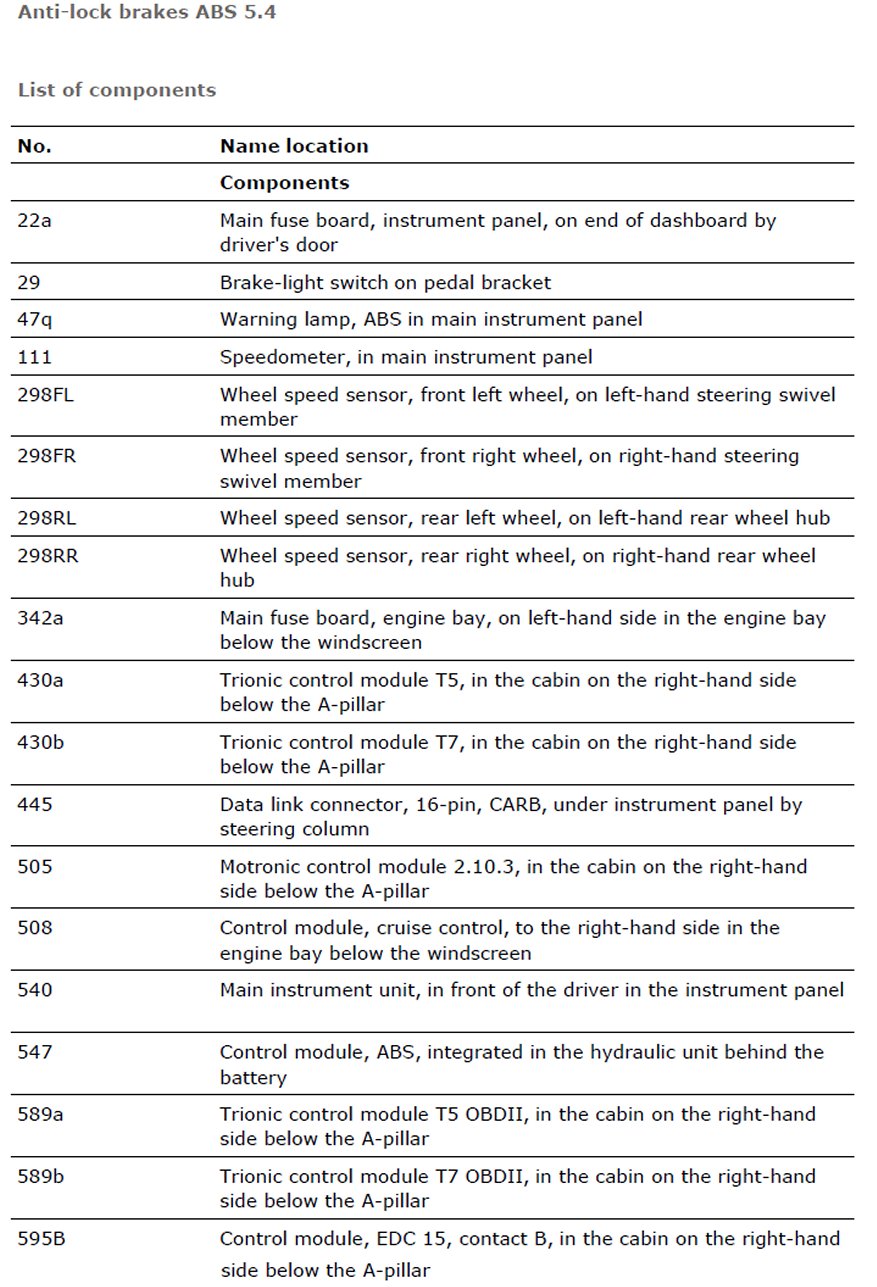

Components

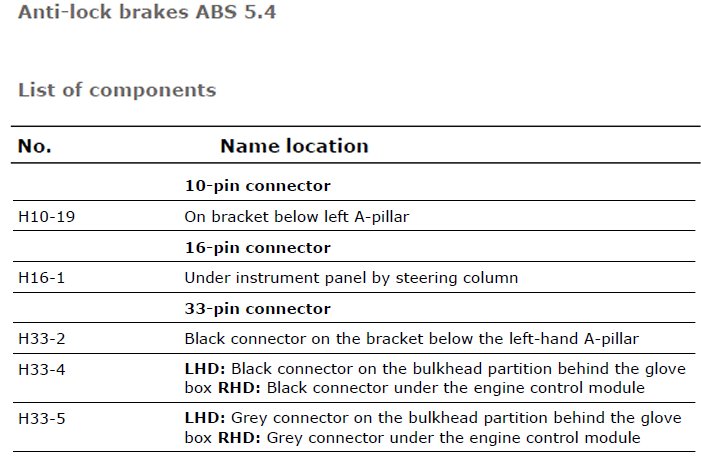

10-pin, 16-pin, 33-pin, connectors

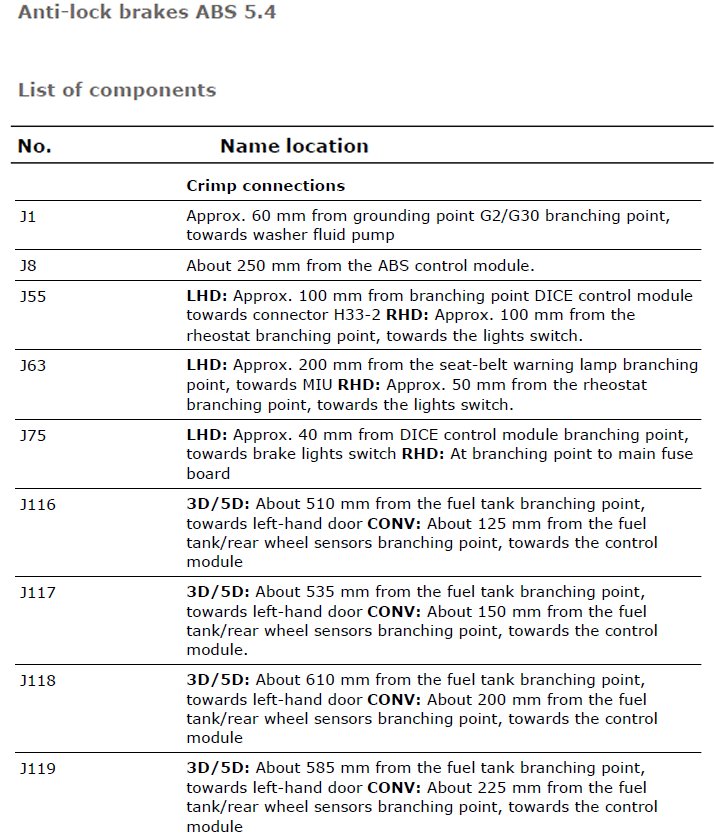

Crimp Connections

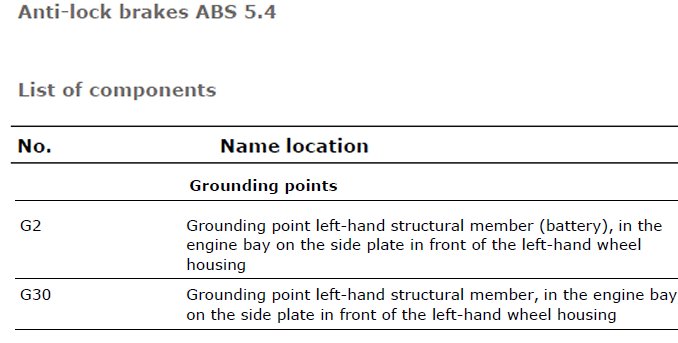

Grounding Points
