Home >> Saab >> 2000 >> 9-3 SE Convertible (9400) L4-2.0L Turbo (B205) HO >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module, A/T >> Wiring Side

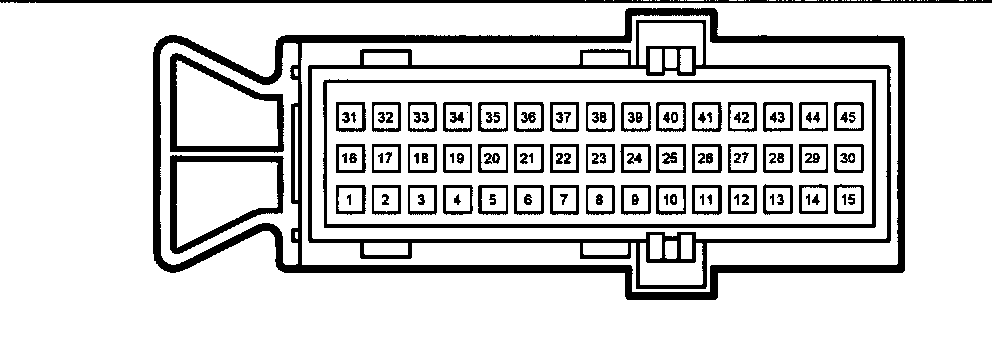

Wiring Side

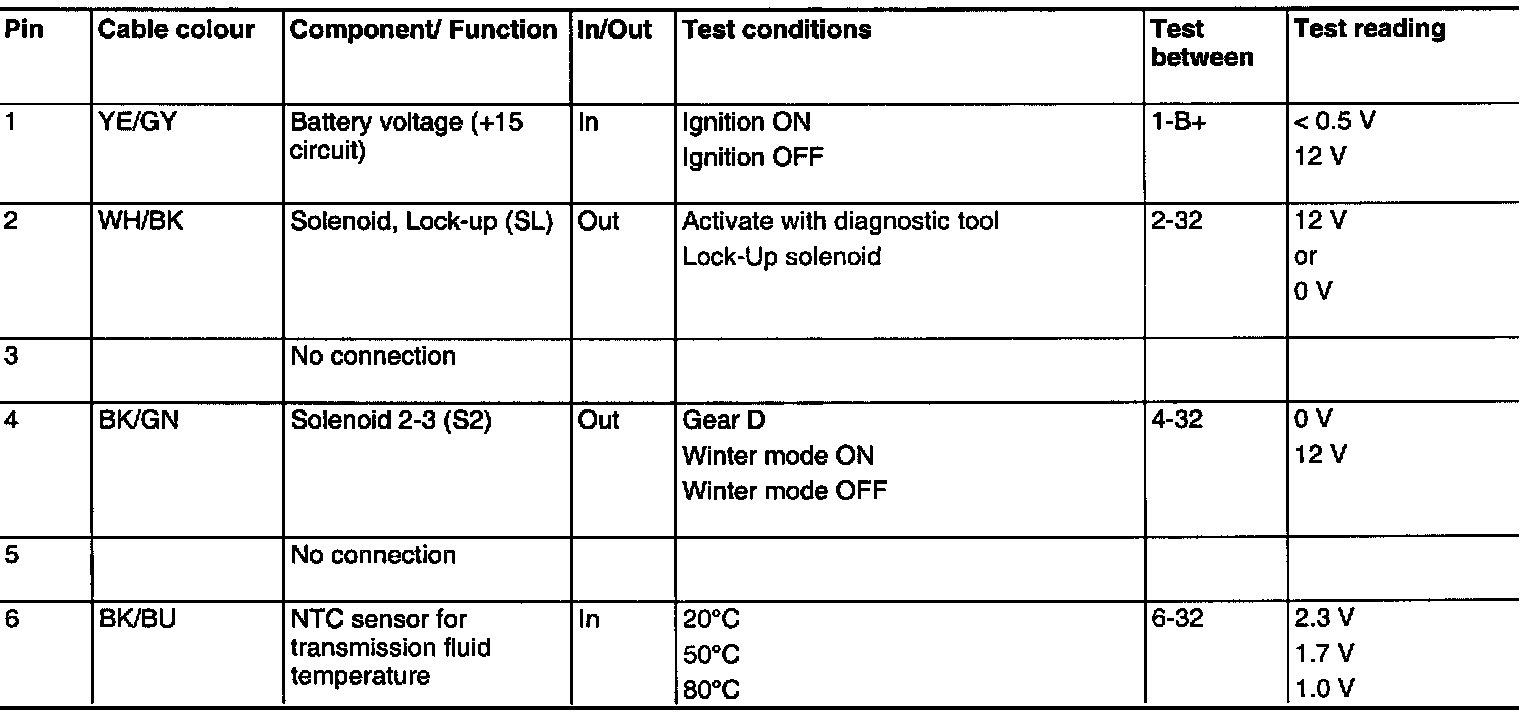

Part 1 Of 5

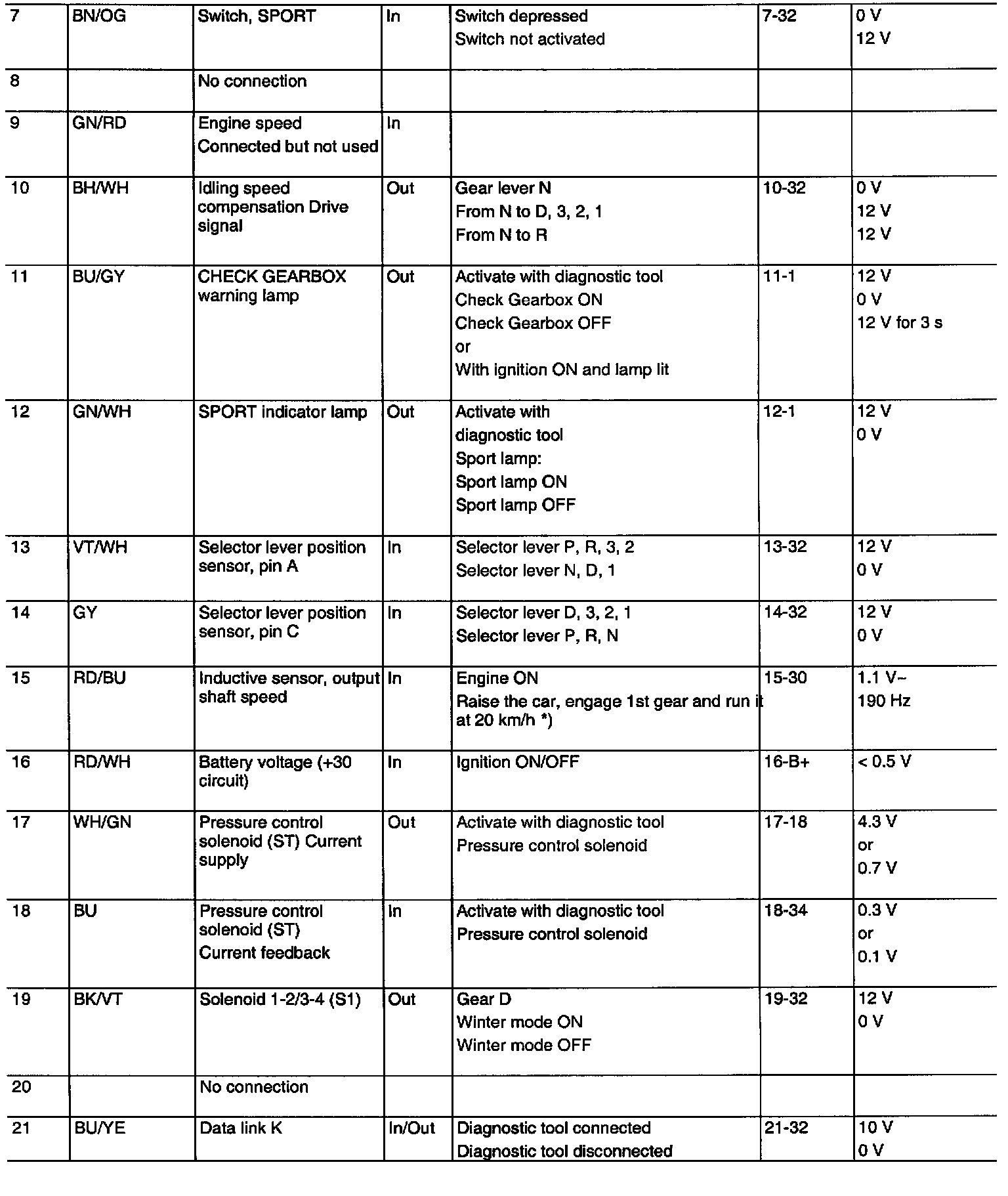

Part 2 Of 5





Part 3 Of 5

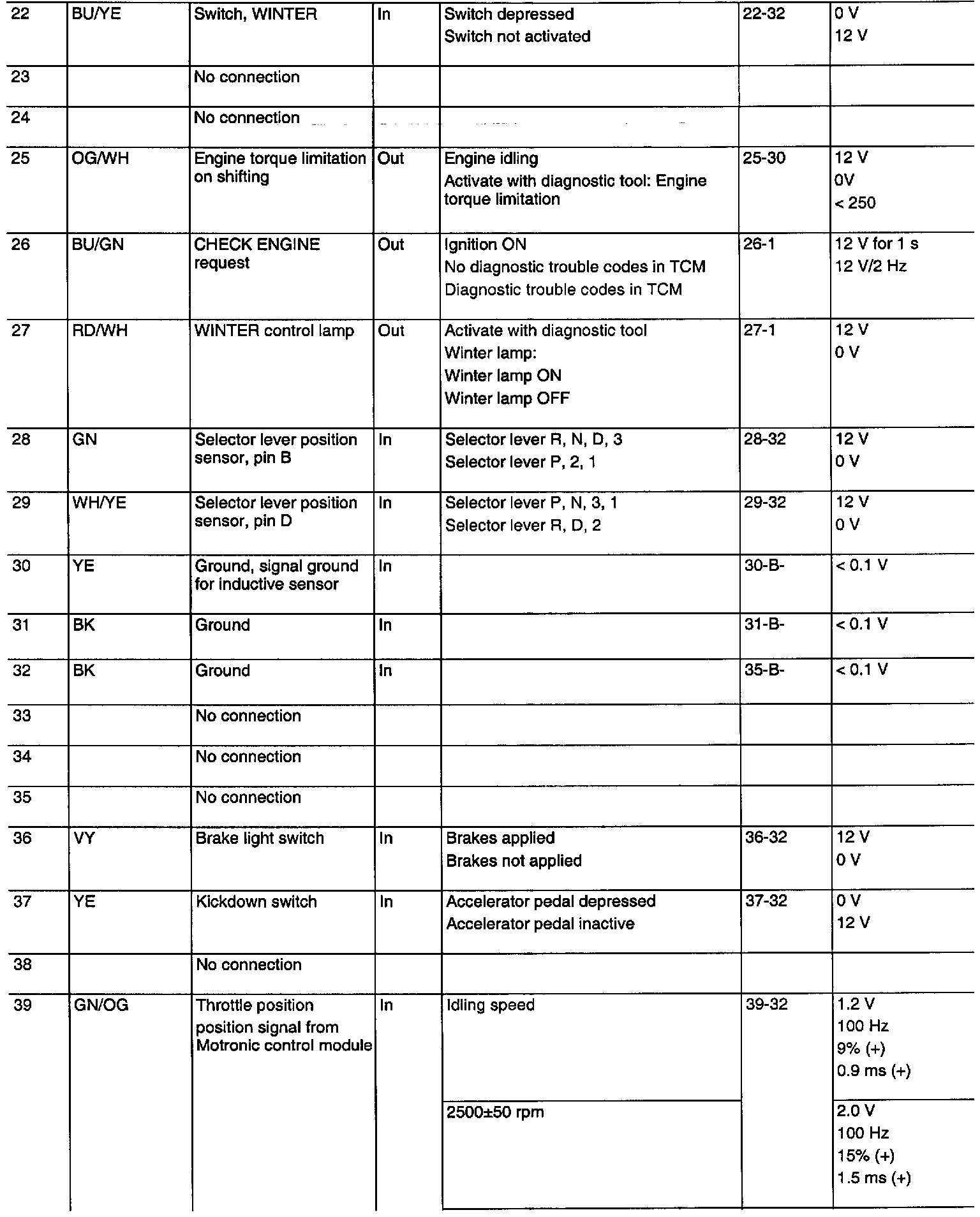

Part 4 Of 5

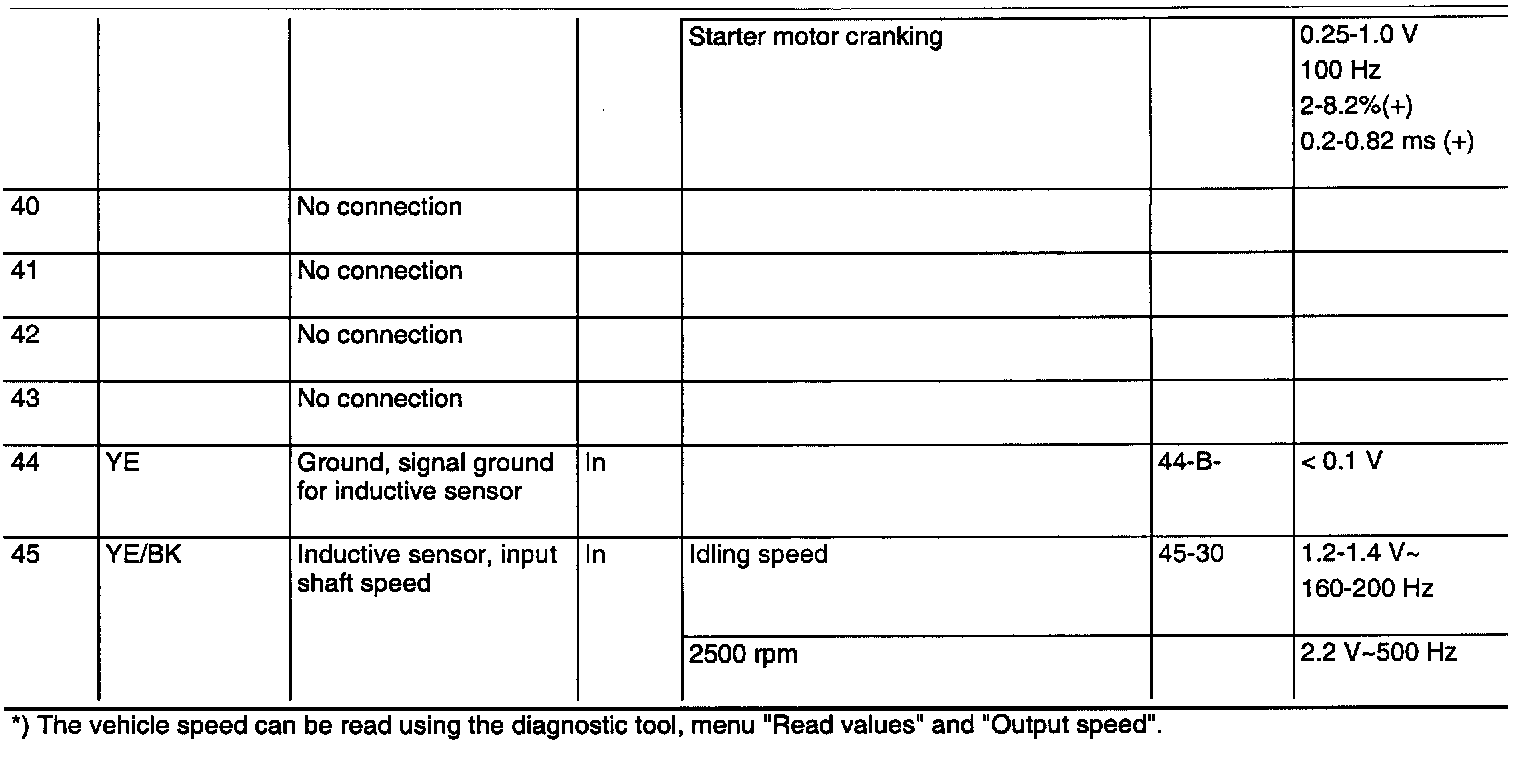

Part 5 Of 5
