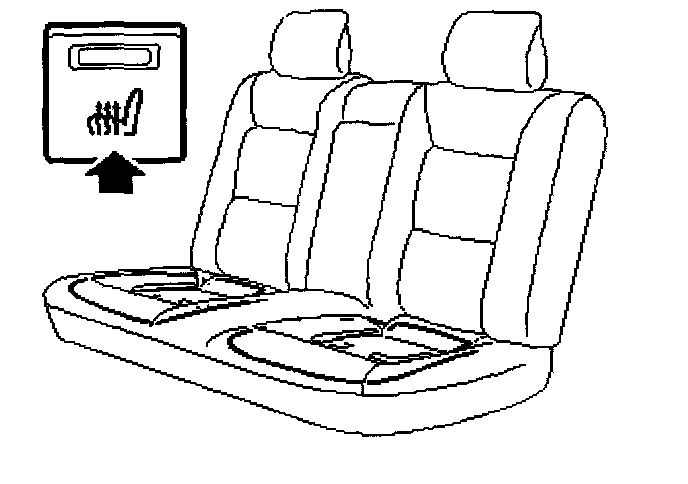

Activation of the Electrically Heated Rear Seat

Activation Of The Electrically Heated Rear Seat












- Turn the ignition switch to the ON position.
- Press the button for the electrically heated rear seat.







- The indicator lamp for the electrically heated rear seat should light.

Is the function correct?

NO - Checking Control Module Input

YES - Checking the Power Supply For the Heating Pads
