Tech 2 Menu Structure

Tech 2 menu structure

Diagnostic trouble code (DTC)

Read Values/Activate

Adjustment

Programming

System Information

IMPORTANT
To obtain relevant "Read Values", the ignition must be in position ON.

Menu "Read Values"

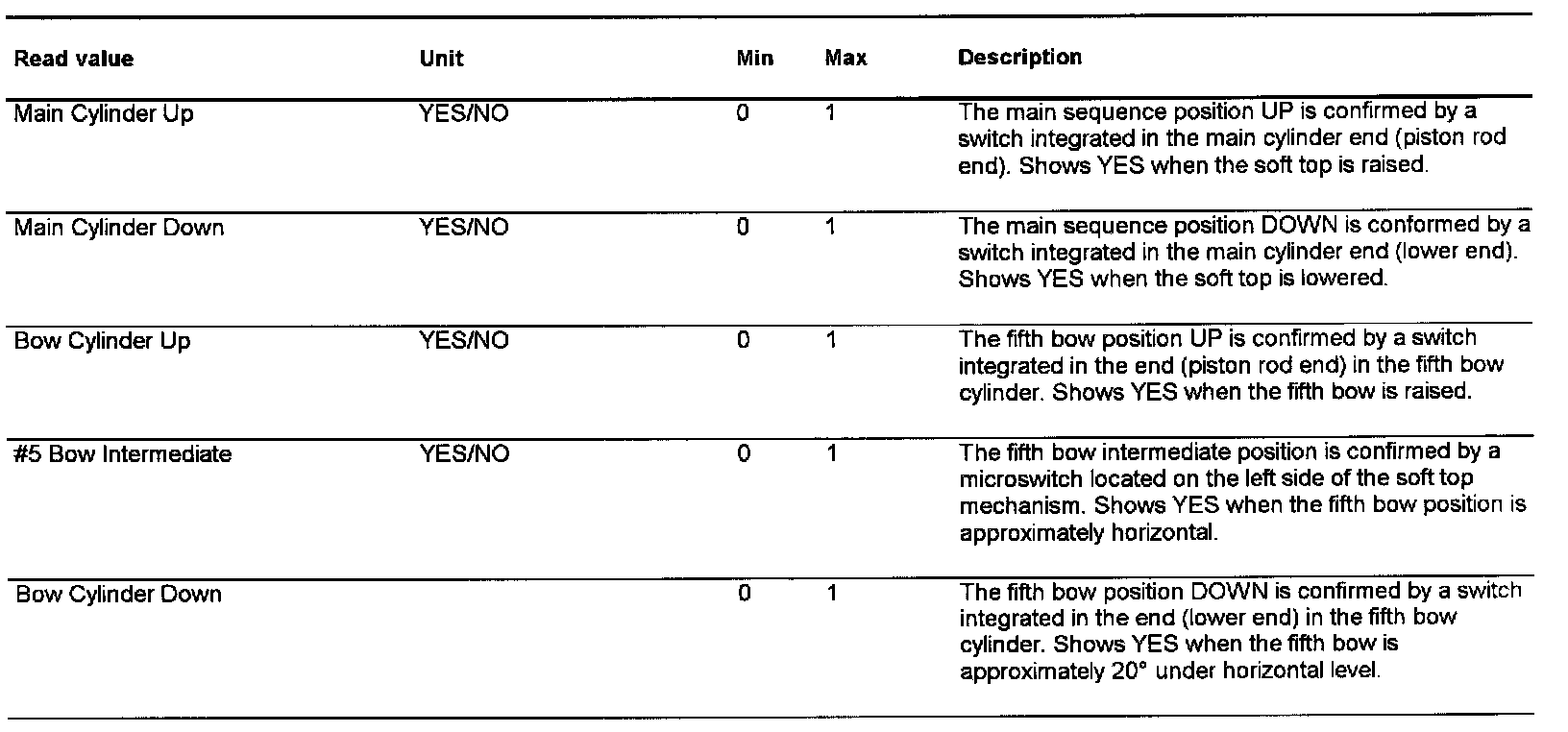

Part 1:

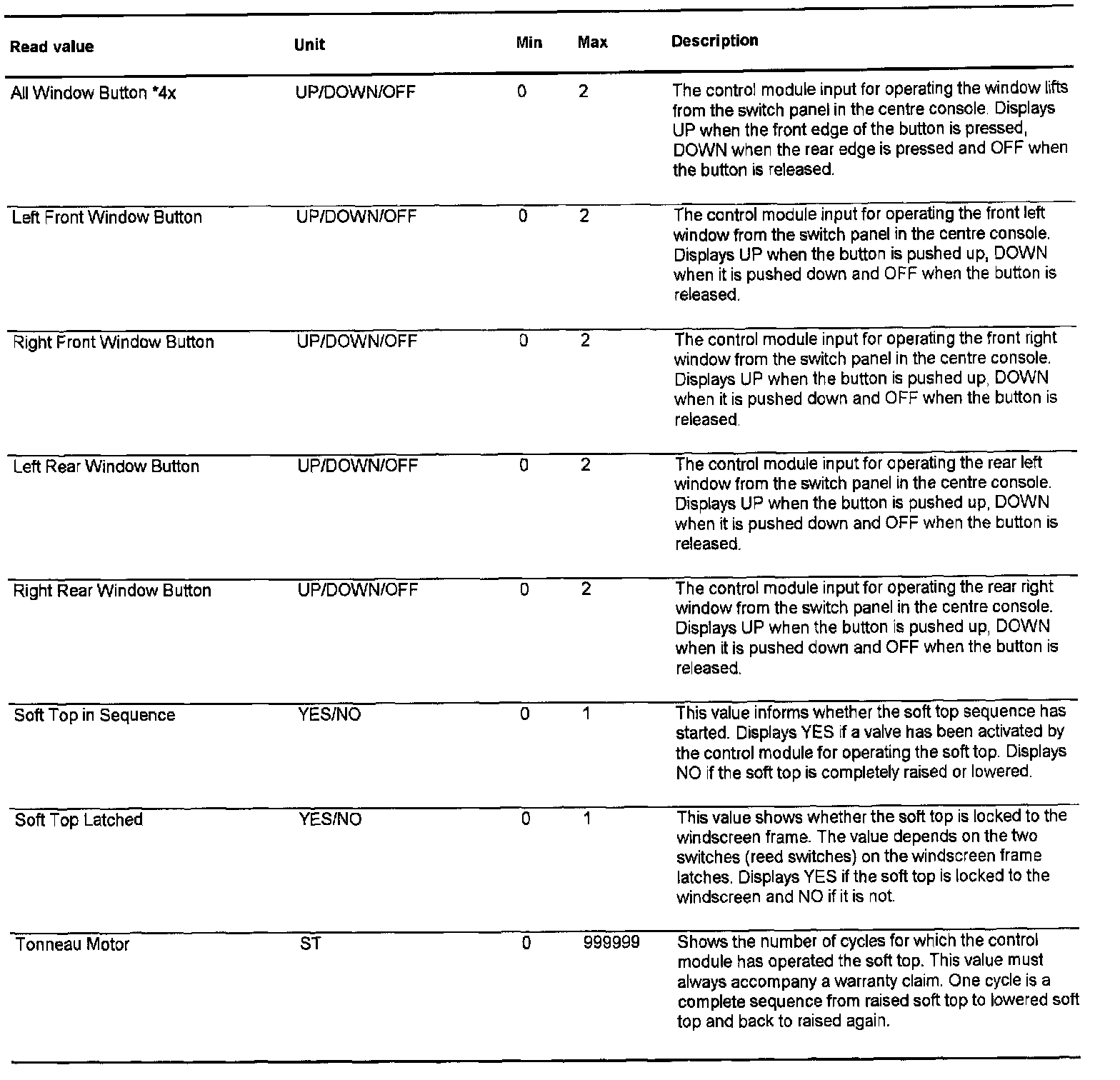

Part 2:

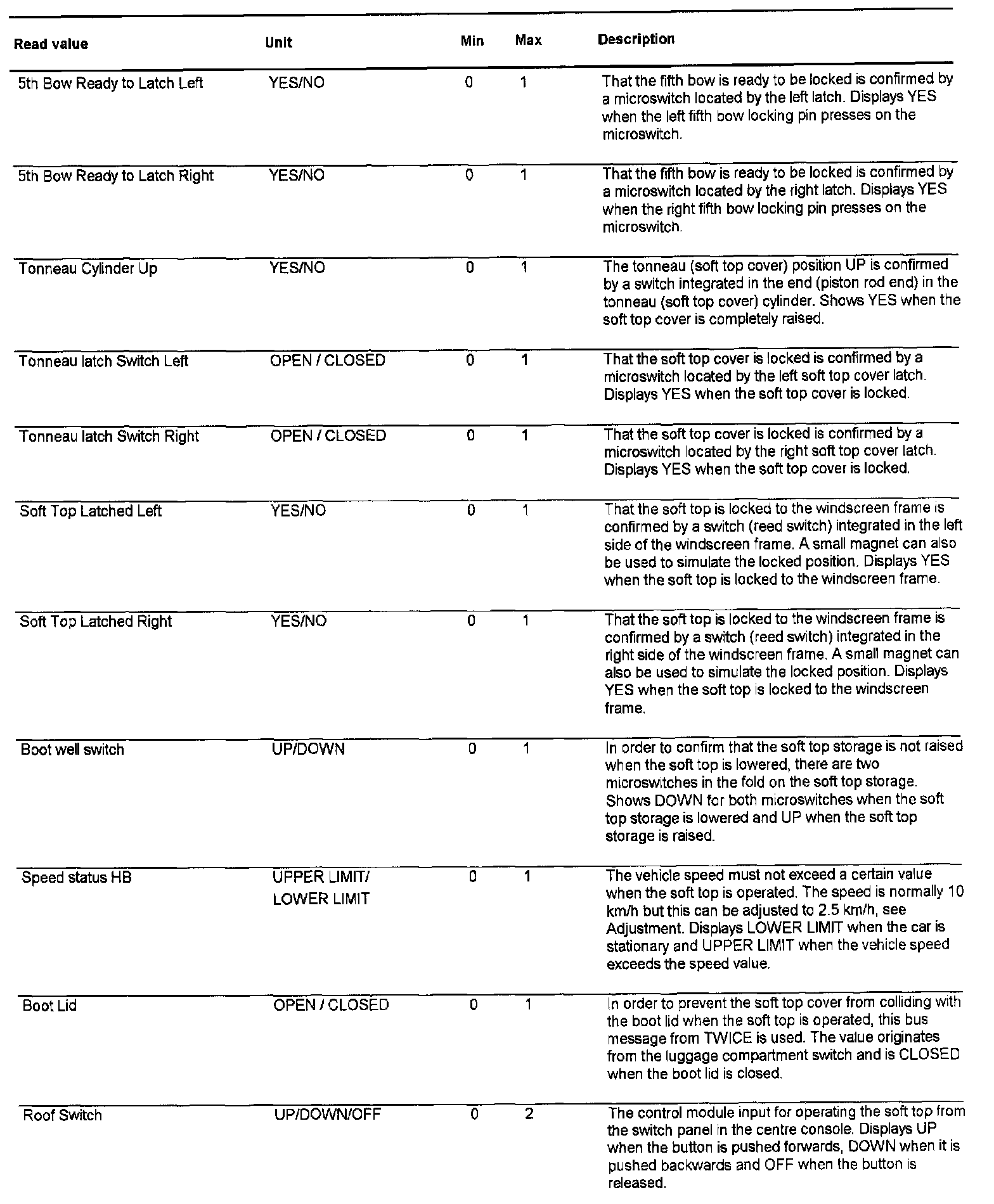

Part 3:

Menu "Activate"

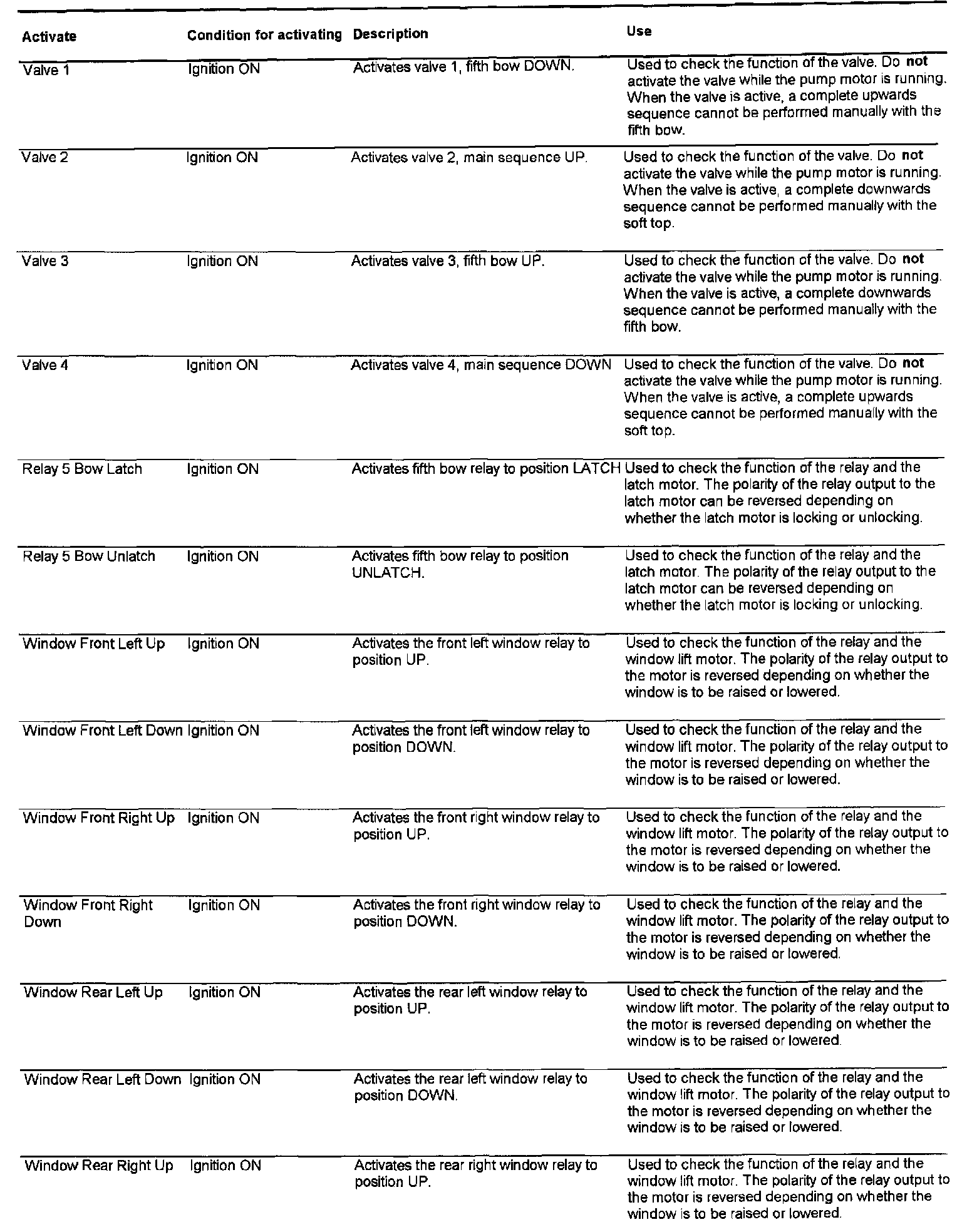

Part 1:

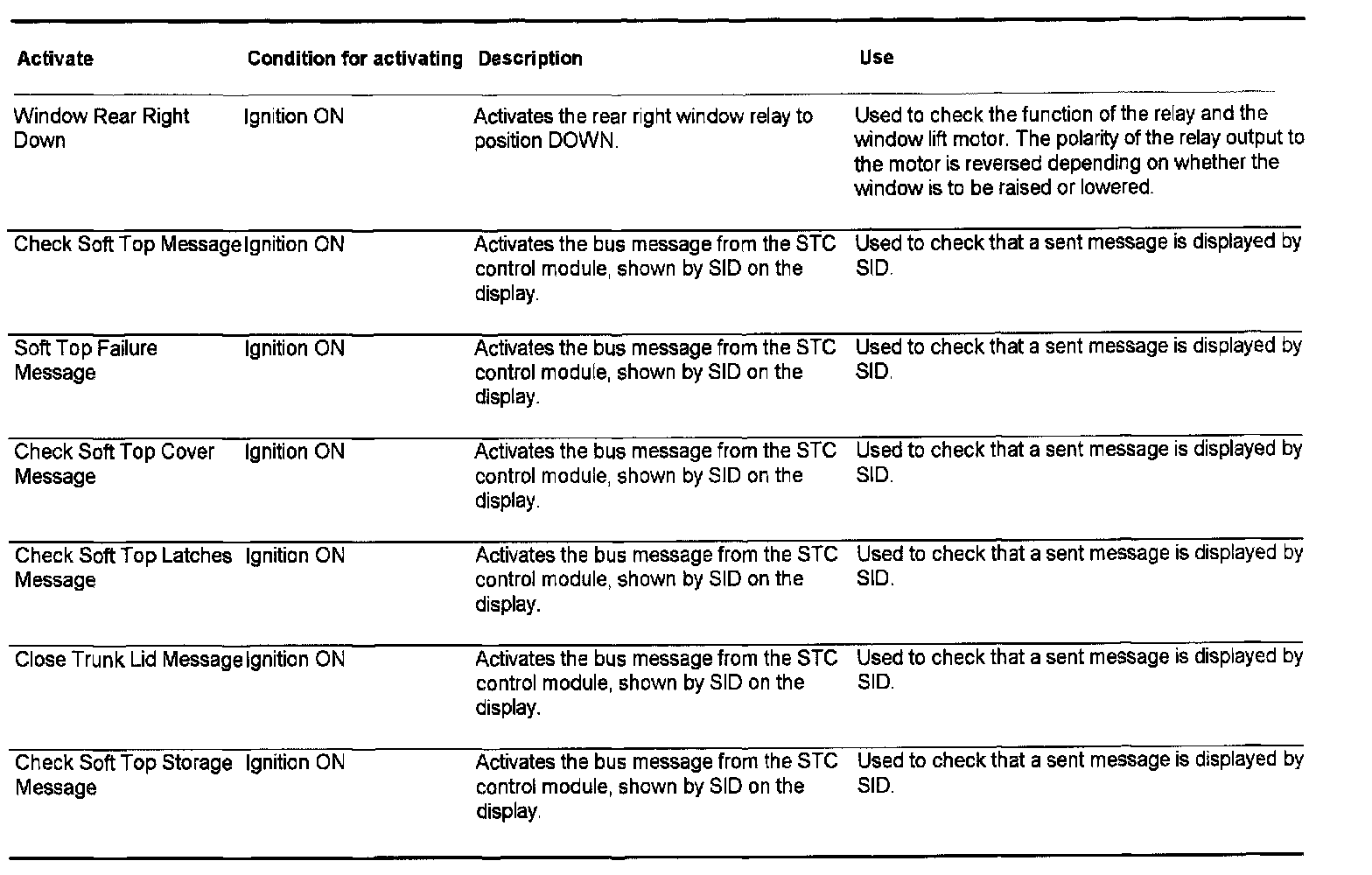

Part 2:

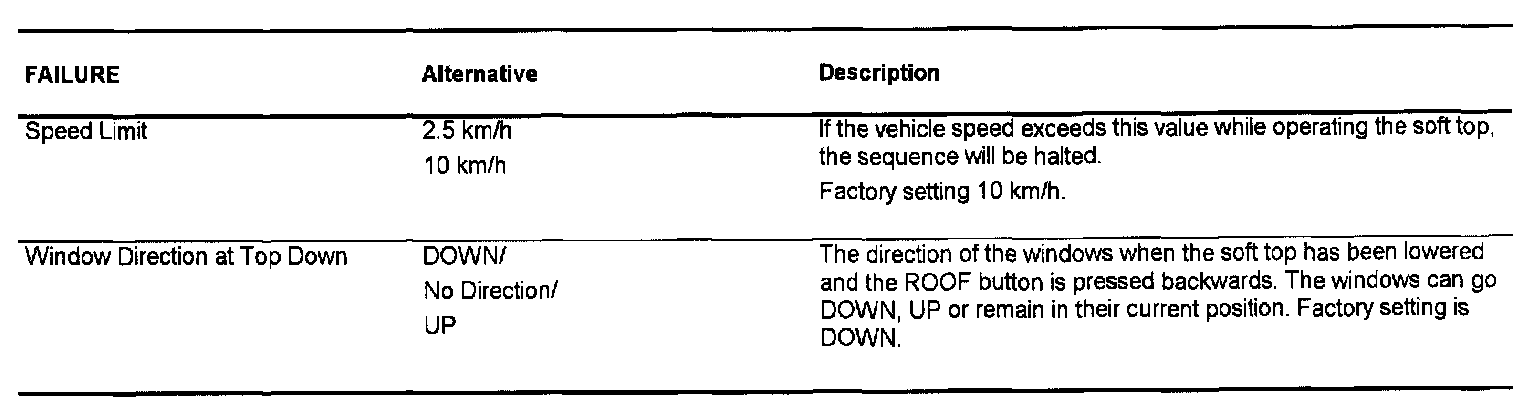

Menu "Adjustment"

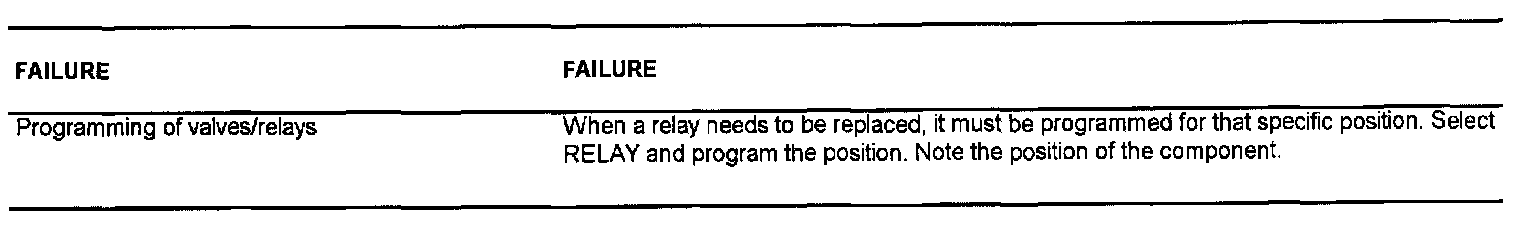

Menu "Programming"







If more than one relay/valve must be replaced, first fit one spare part and program it. Then fit the next spare part and program it. This prevents two spare parts from receiving the same address.

Menu "System Information"

Diagnostic tool FAILURE
Saab Part Number Displays Saab's 7-digit part number for the control module.
Hardware number Displays the control module part number XXXX.
Hardware version Displays the control module hardware version number XXX.
Software number Displays the control module software number XXXX.
Software version Displays the control module software version number XXXX.
System name Displays the system name STC
Programming date Displays the programming date DD MM YY
Diagnostic data identification Displays the diagnostics software version number XXXX.
