Rear Seat Belt

Removing
1 Remove the rear side upholstery.

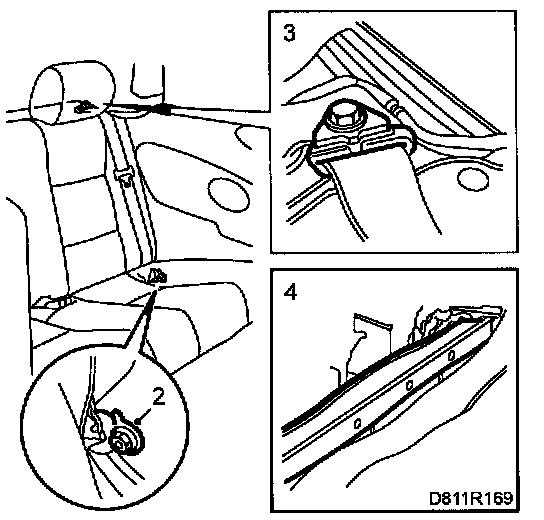

2 Remove the bolt securing the seat belt to the floor.
3 Remove the bolt securing the strap guide.







4 Remove the clip securing the upholstery above the long-load opening.

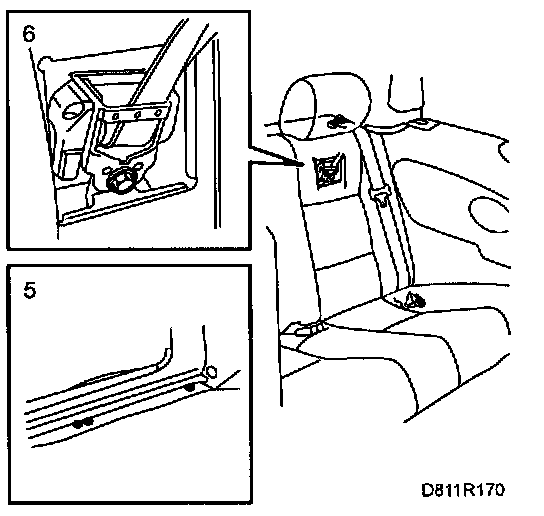

5 Remove the clips securing the upholstery below the long-load opening.







6 Move aside the upholstery and remove the bolt securing the seat belt roller.
7 Remove the seat belt.

Fitting

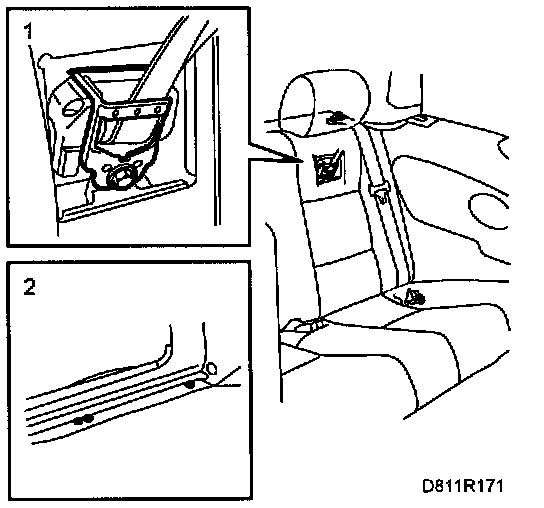

1 Fit the seat belt roller and tighten the bolt.

Tightening torque: 45 Nm (33.3 lbf ft)

2 Fit the upholstery and fasten the clips securing it below the long-load opening.

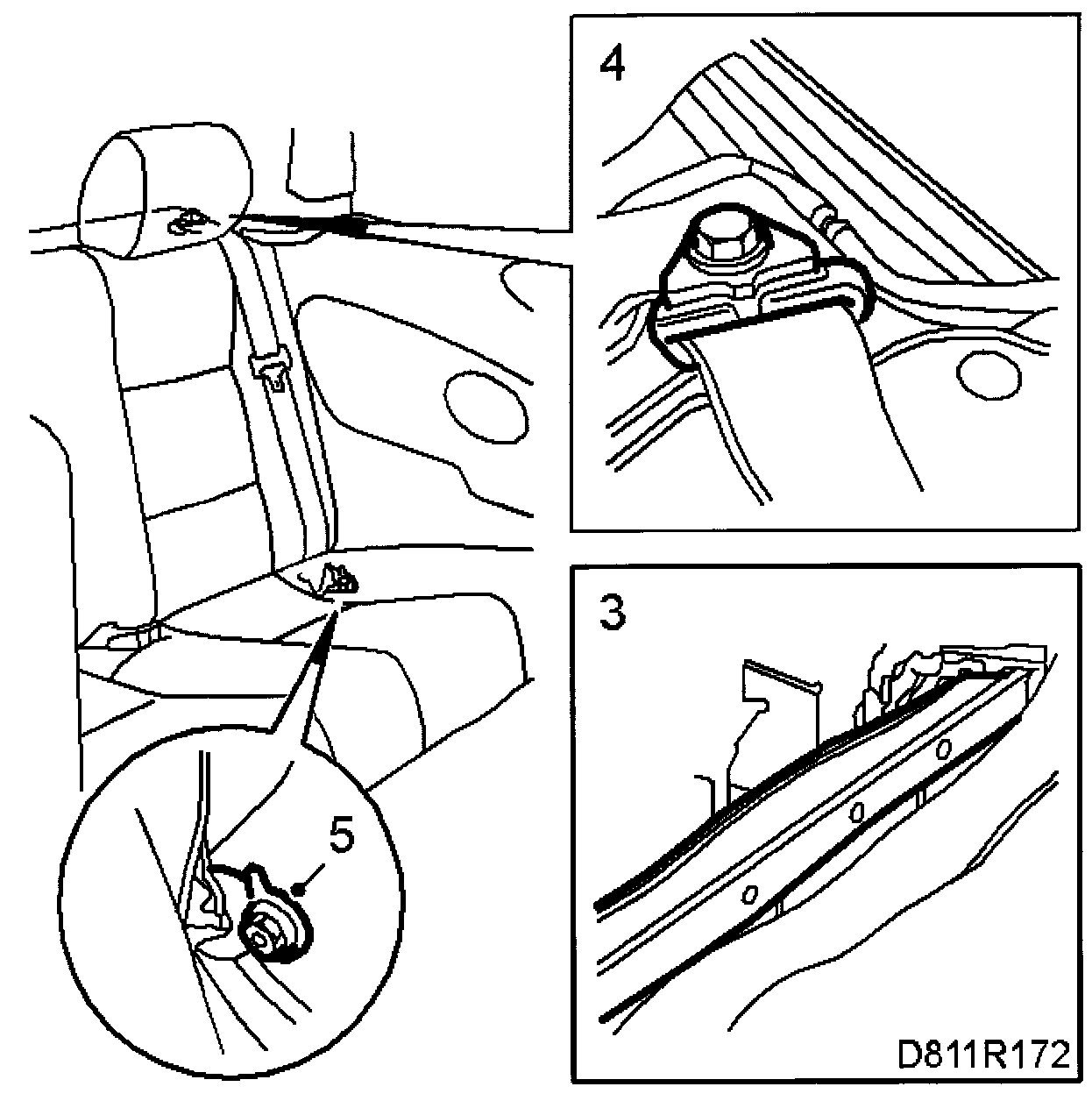

3 Fasten the clips securing the upholstery above the long-load opening.







4 Fit the strap guide and tighten the bolt.

Tightening torque: 45 Nm (33.3 lbf ft)

5 Tighten the bolt securing the seat belt to the floor.

Tightening torque: 45 Nm (33.3 lbf ft)
