Rear Loudspeaker

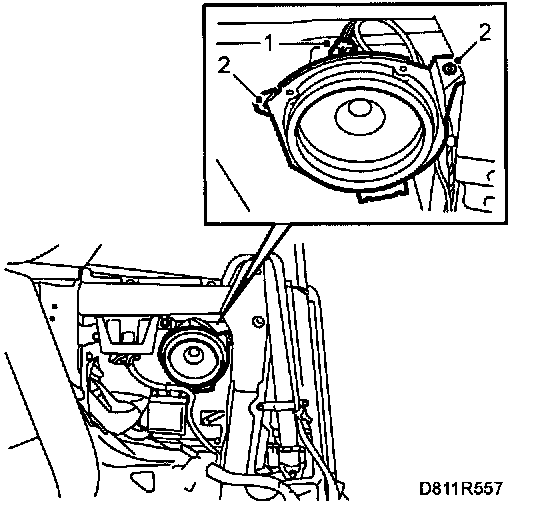

Removing







1 Remove the rear side upholstery.
2 Remove the bolts securing the loudspeaker.
3 Unplug the connector and remove the speaker.

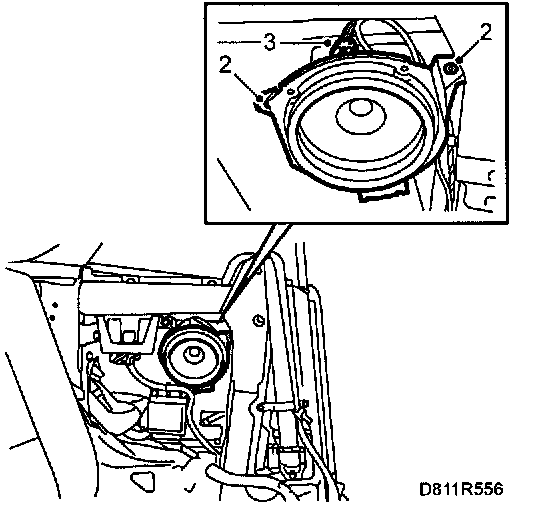

Fitting







1 Plug in the connector.
2 Fit the speaker and tighten the bolts.
3 Refit the side upholstery.
